Trim Panel: Installation

NOTE: The liftgate trim panel is attached with screws and clips.
  1. Align the liftgate trim panel spring clips and press the panel into the liftgate.
  2. Install the trim panel screws.
  3. Connect the rear defroster wires.

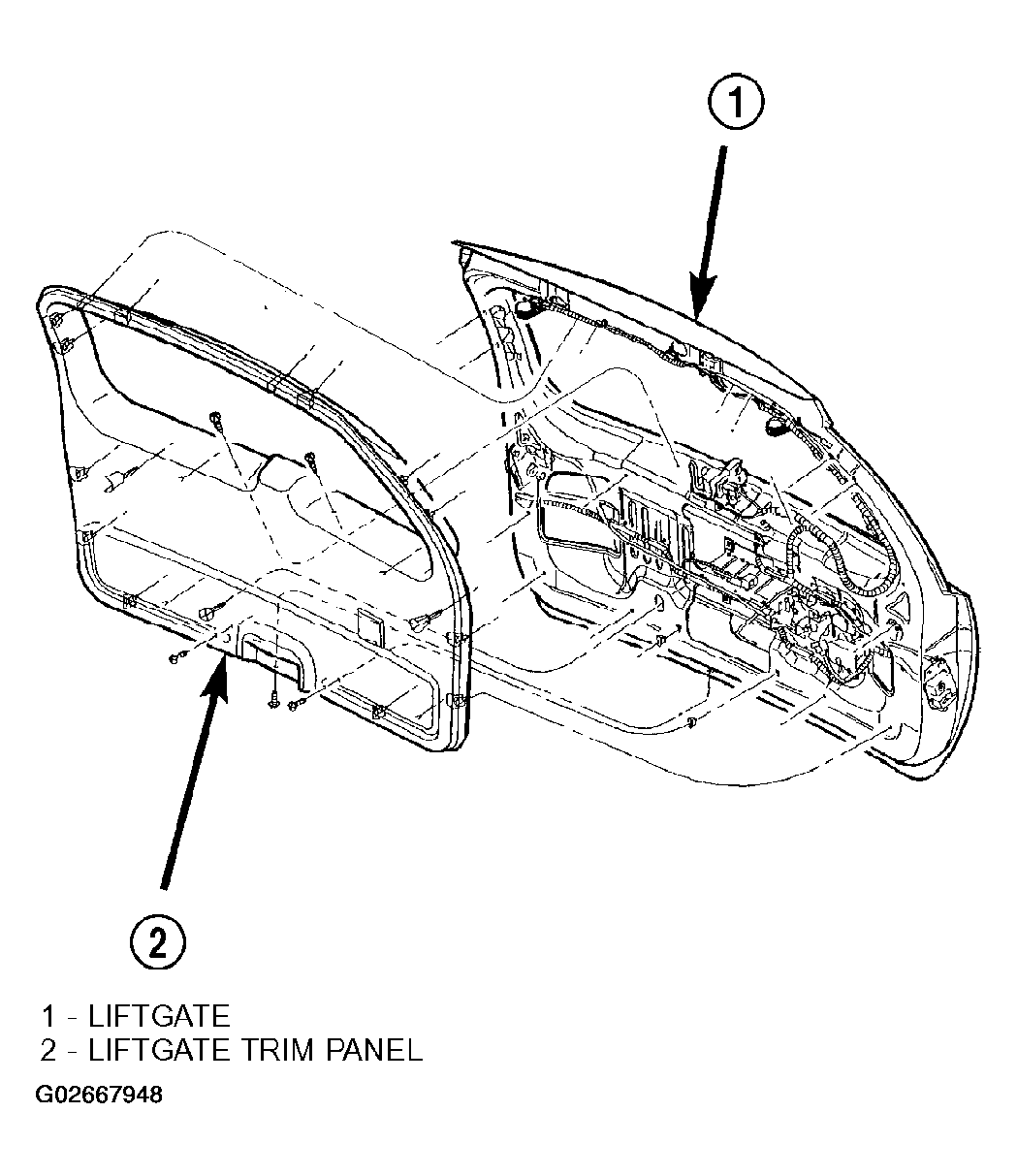

    Fig 1: Identifying Liftgate Trim Panel
    G02667948Courtesy of DAIMLERCHRYSLER CORP.
