Intrusion Transceiver Module (Export) - Black 6 Way Connector End View

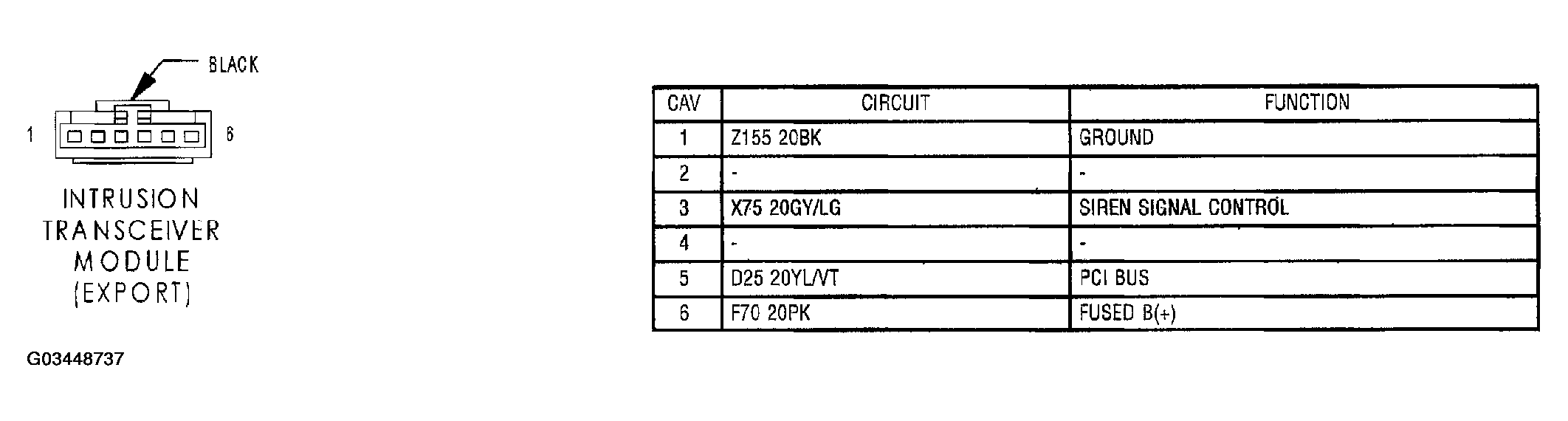

Fig 1: Intrusion Transceiver Module (Export) Connector End View
G03448737Courtesy of DAIMLERCHRYSLER CORP.
