Drag Link: Removal
- Raise and support the vehicle.
- Remove right wheel and tire assembly.

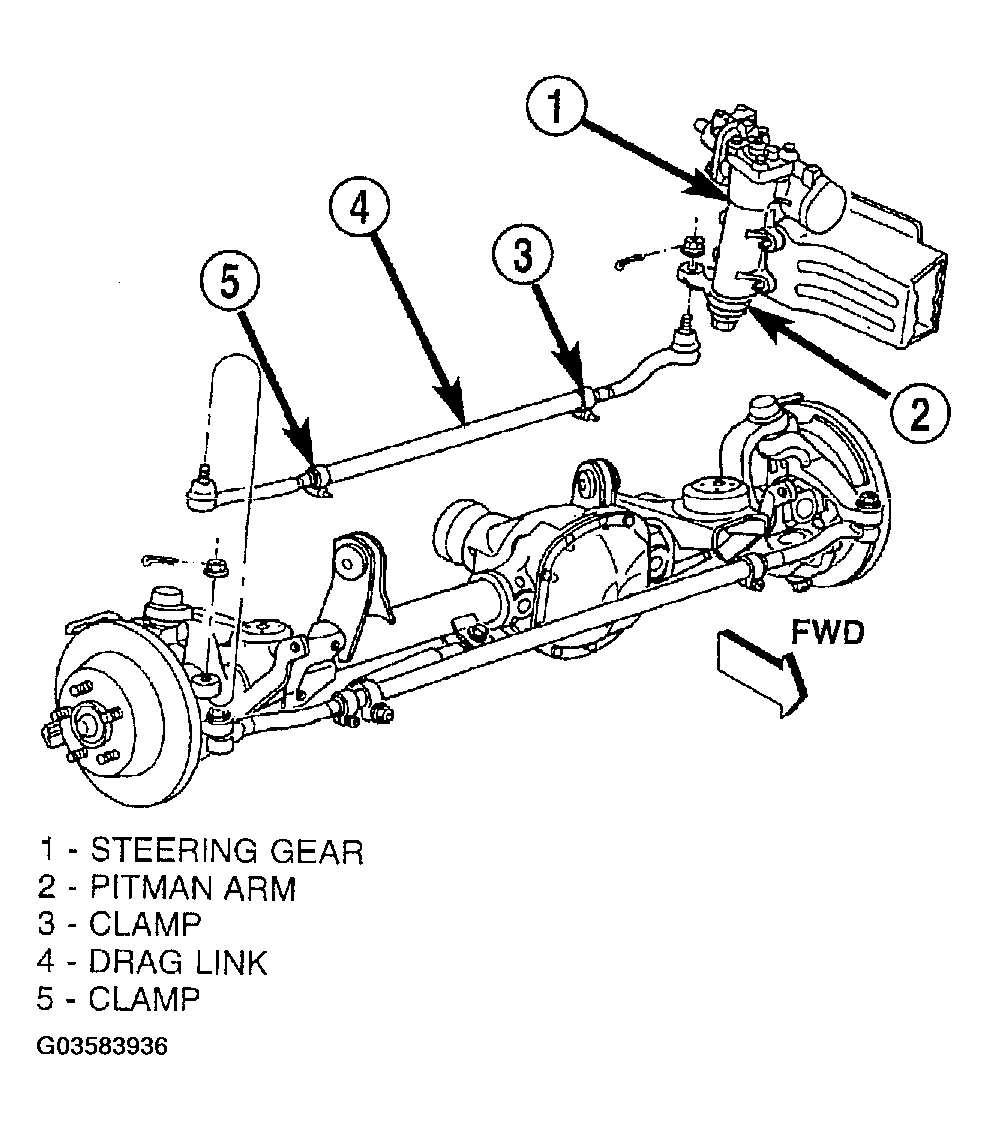

- Remove the cotter pins and nuts at the right steering knuckle and pitman arm (Fig 1).
- Remove the drag link from the steering knuckle and pitman arm Puller C-3894-A.
- Loosen adjustment sleeve clamp bolts and unscrew the tie rod ends from the adjustment sleeve.
