Junction Block



Junction Block

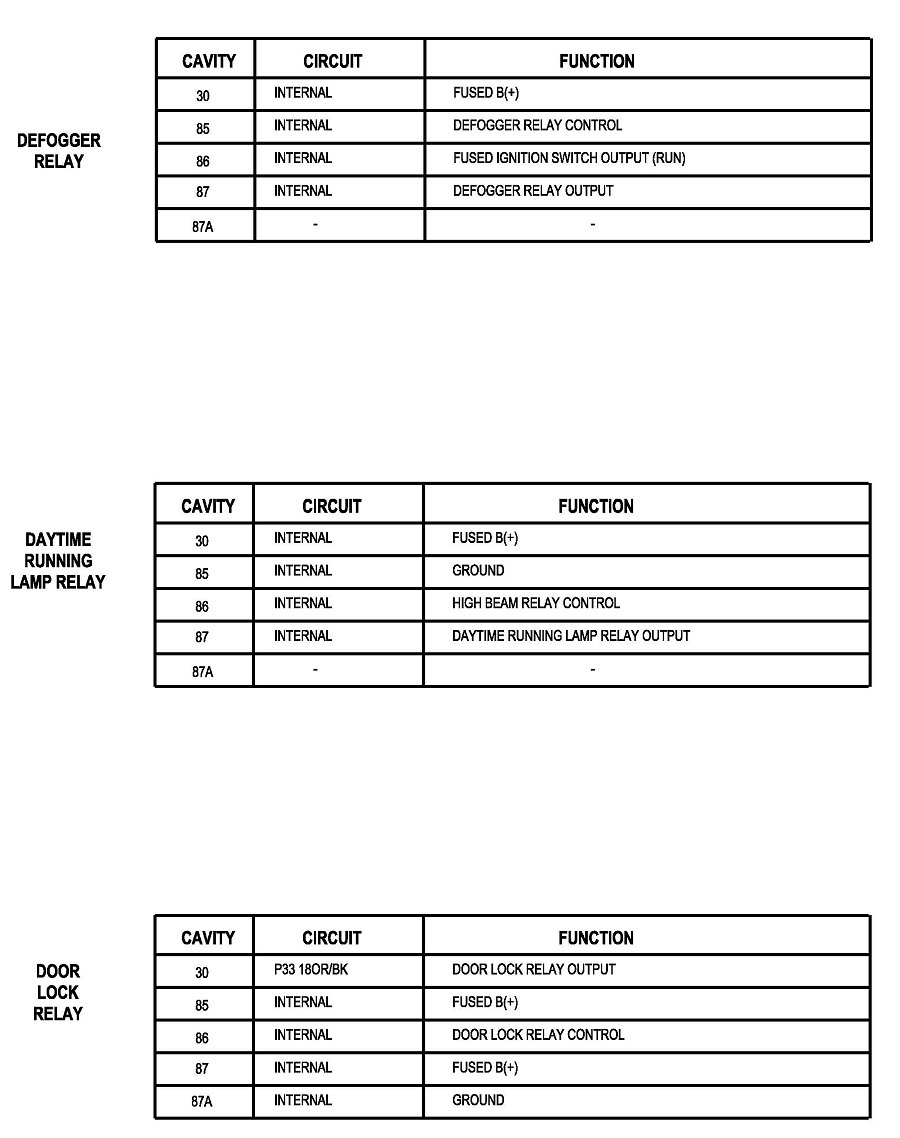

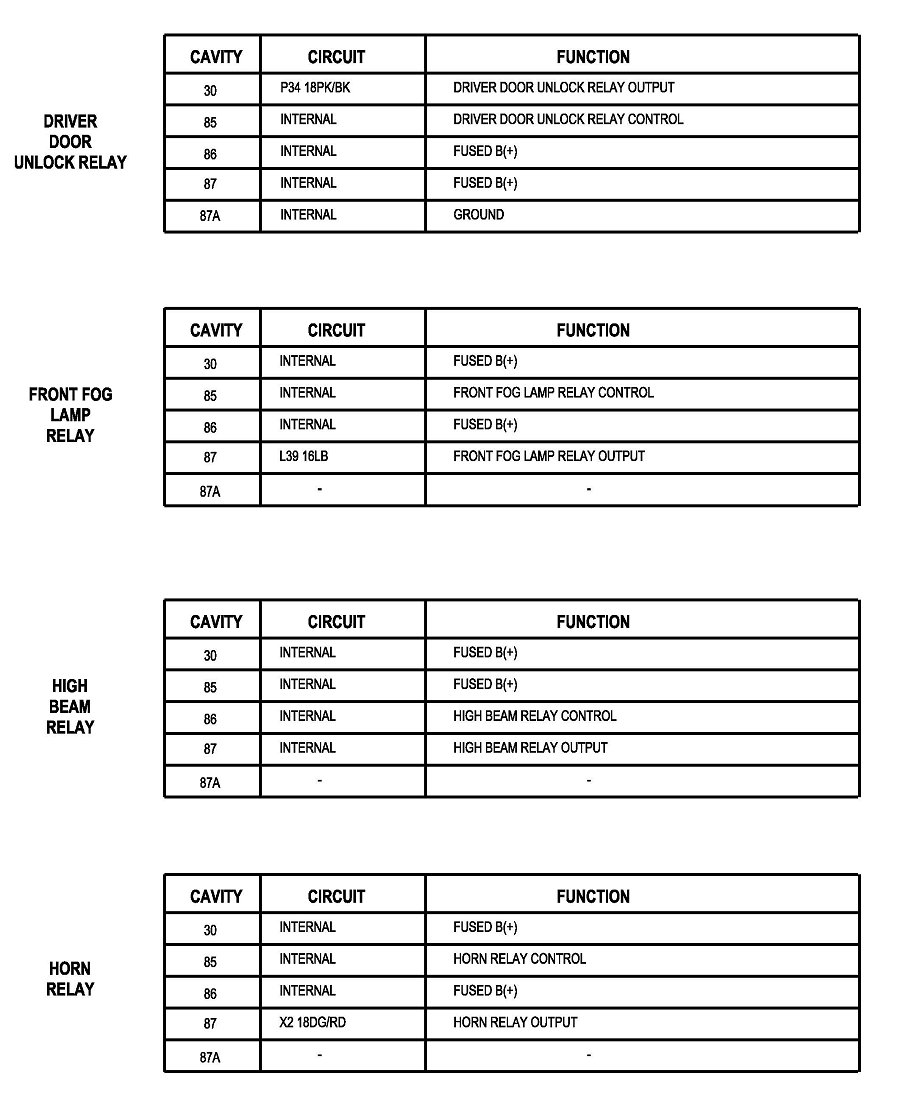

Junction Block Inboard:

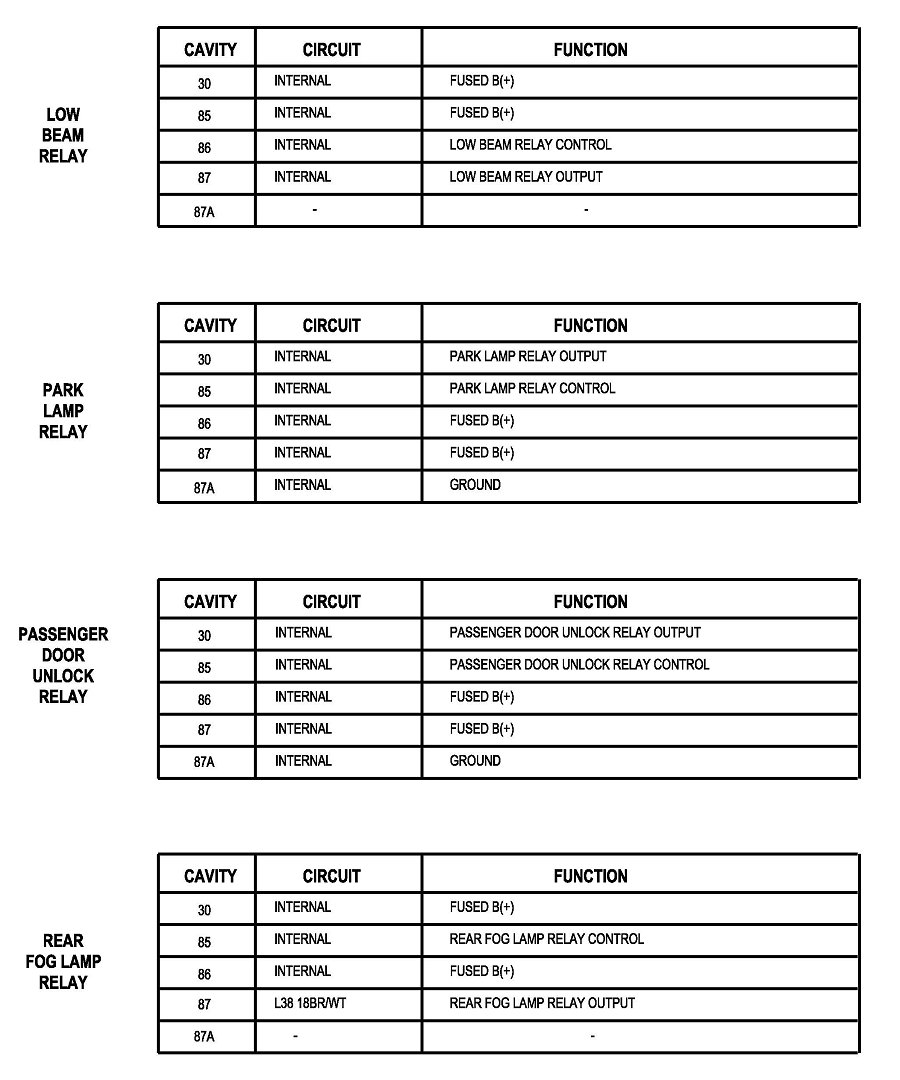

Junction Block Outboard:

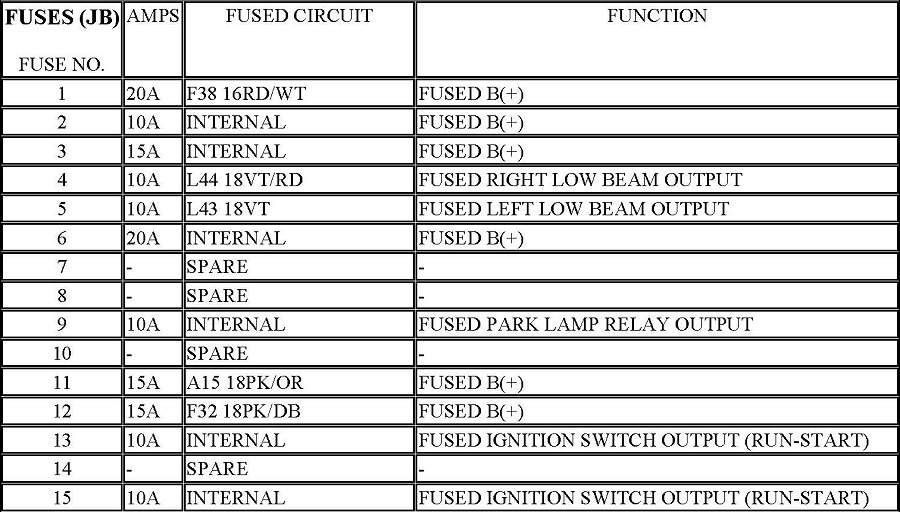

Fuses (1 Of 2):

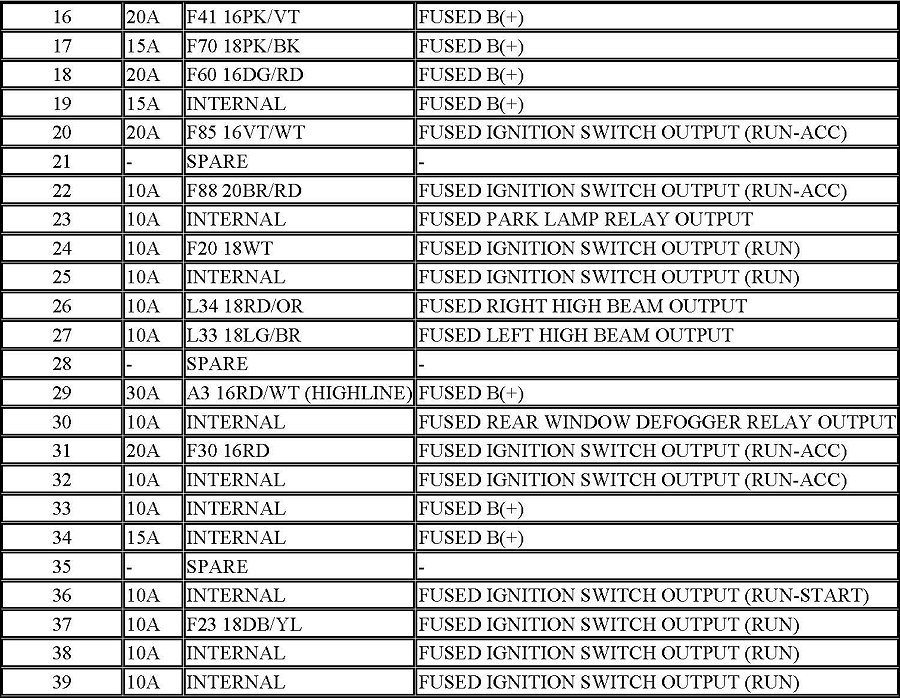

Fuses (2 Of 2):

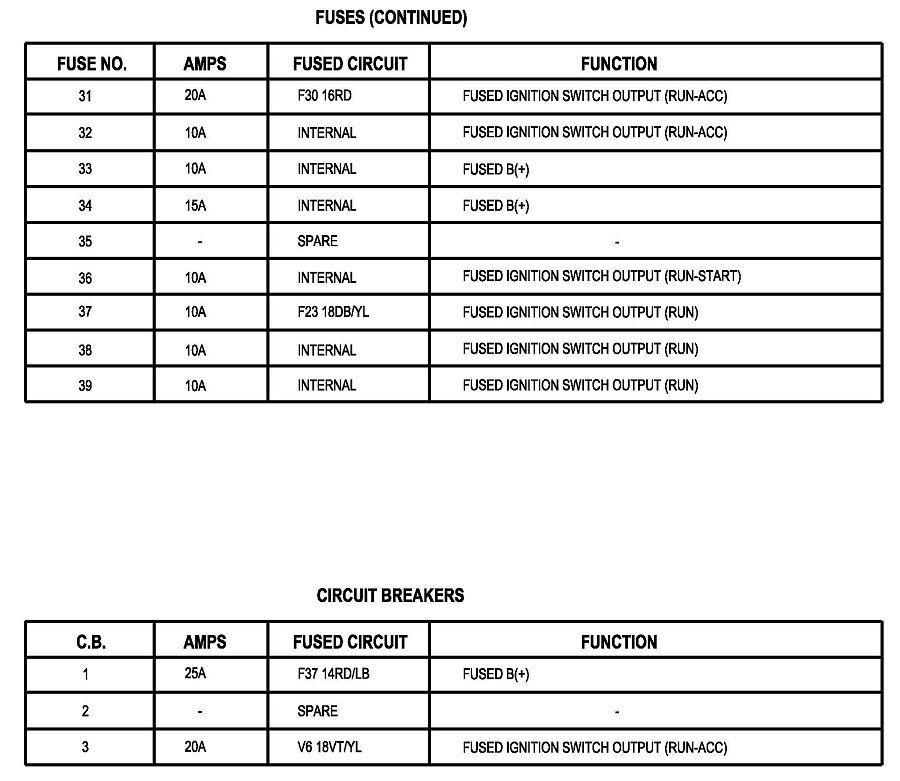

Circuit Breakers:





Connectors (1 Of 3):





Connectors (2 Of 3):





Connectors (3 Of 3):
