Power Distribution Center



Power Distribution Center (PDC)

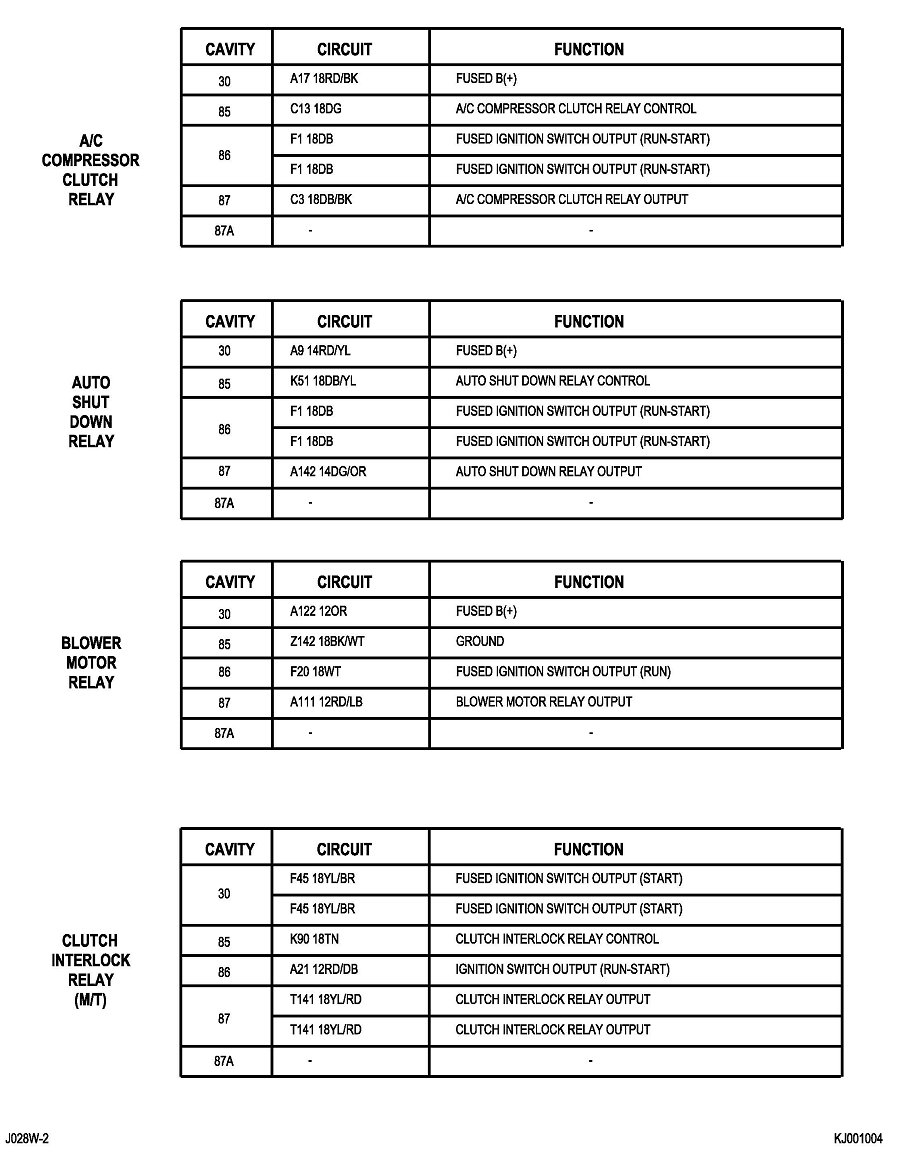

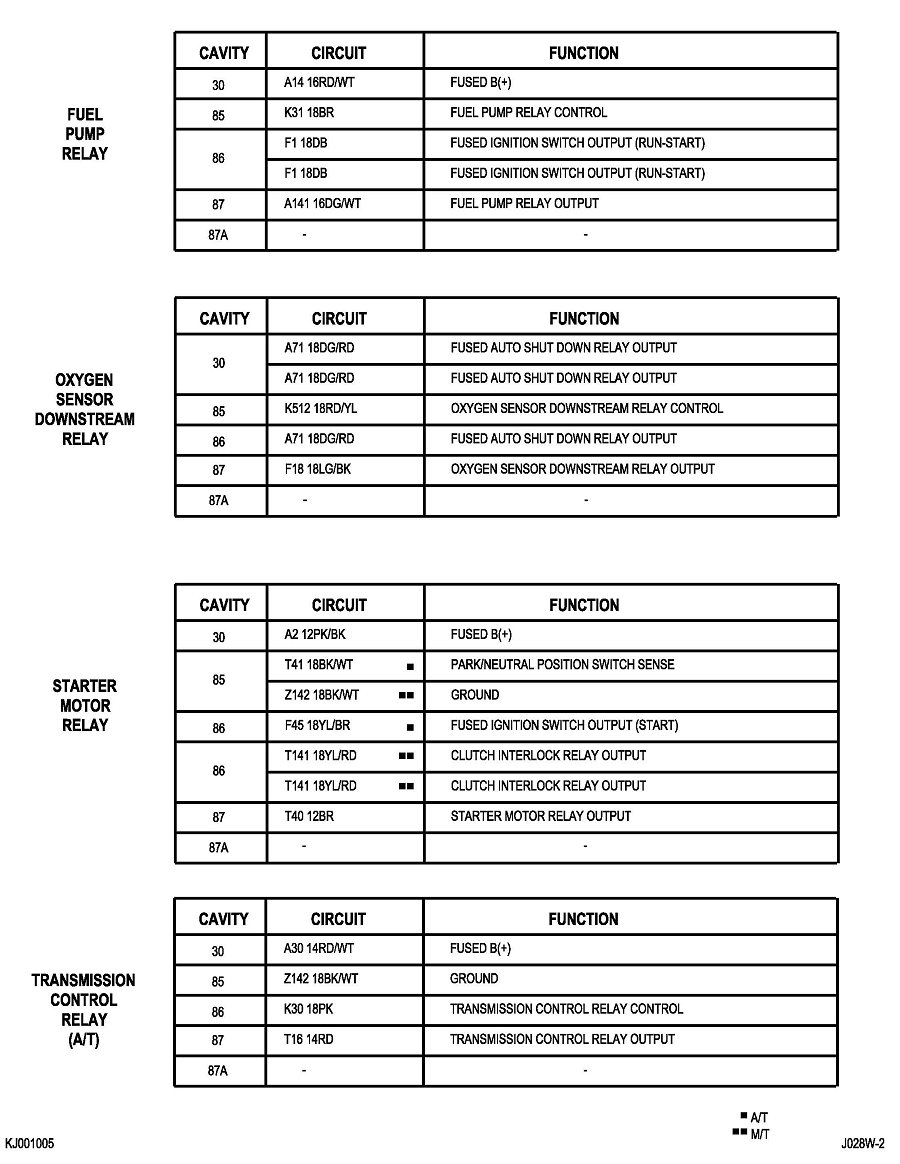

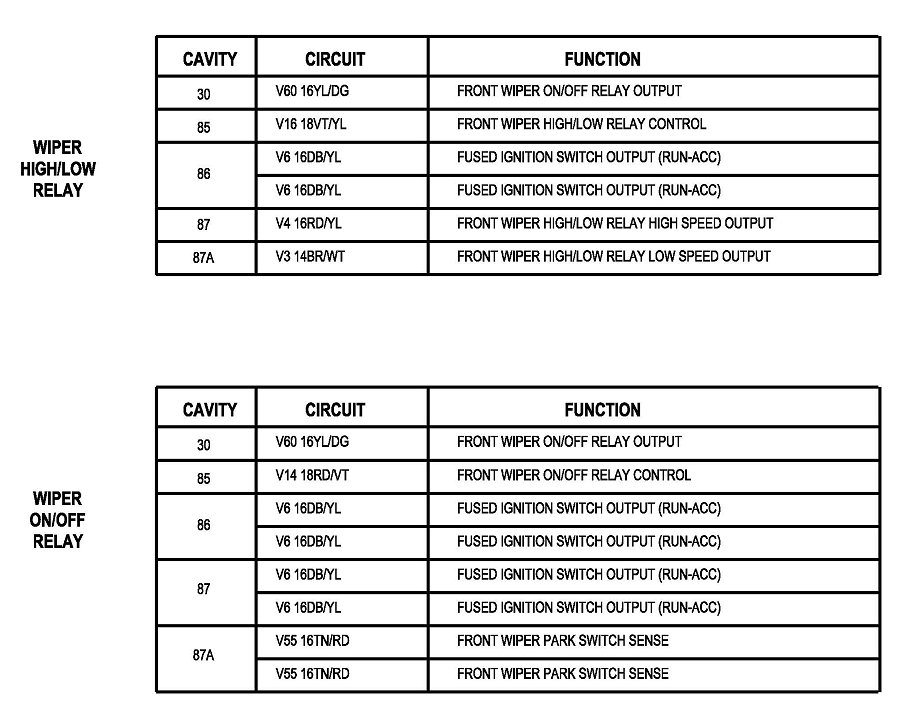

Power Distribution Center:

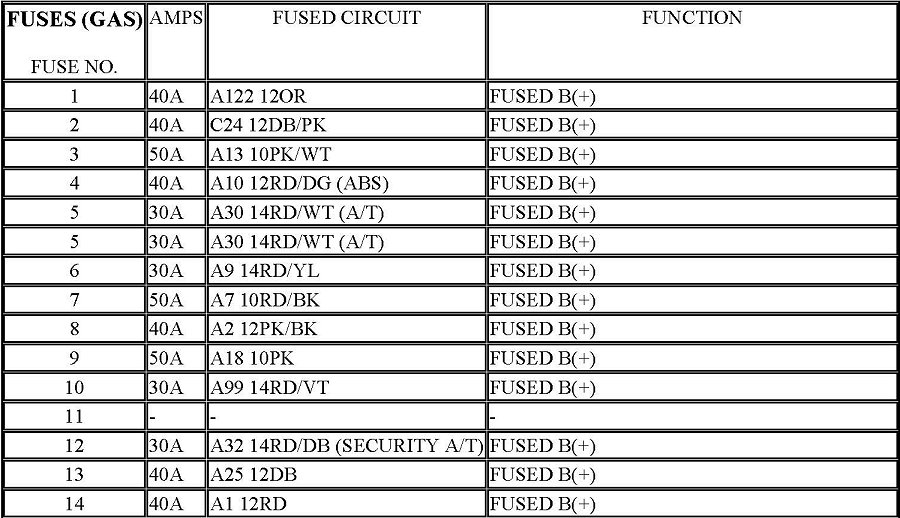

Fuses (1 Of 2):

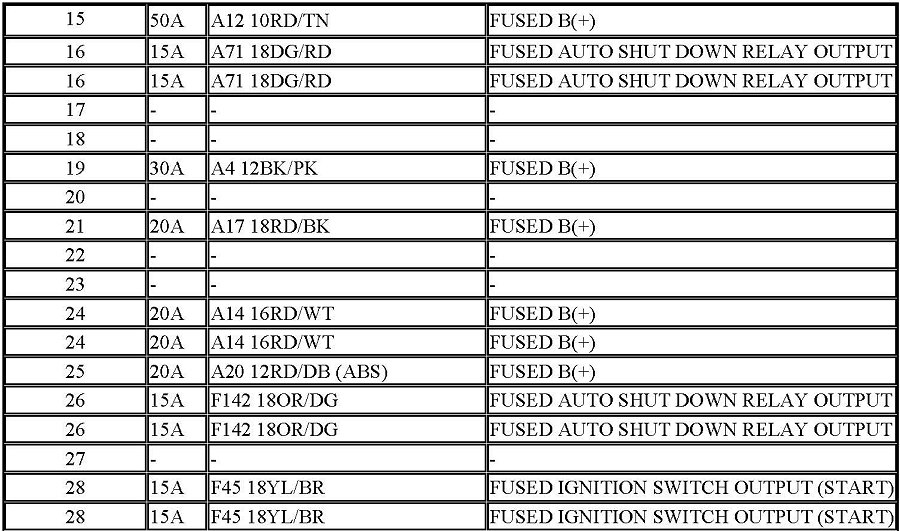

Fuses (2 Of 2):





Connectors (1 Of 3):





Connectors (2 Of 3):





Connectors (3 Of 3):
