Ignition Switch Lock Cylinder: Service and Repair

LOCK CYLINDER

REMOVAL
The ignition key must be in the key cylinder for cylinder removal. The key cylinder must be removed first before removing ignition switch.

1. If equipped with an automatic transmission, place shifter in PARK position.
2. Remove the lower shroud cover.
3. Remove the remote keyless entry (RKE) module.
4. Remove the halo ring around the lock cylinder.
5. Rotate key to ON position.

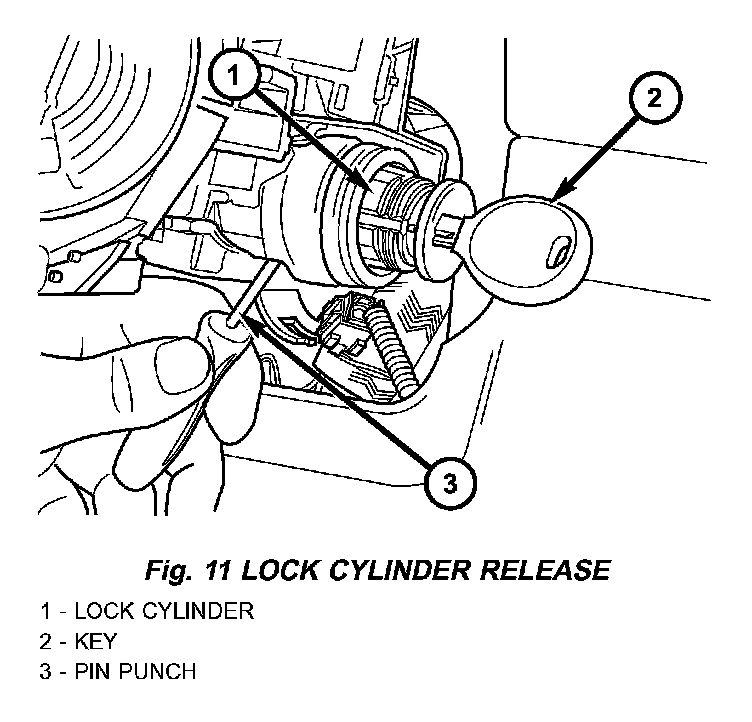

6. A release tang is located on bottom of key cylinder.





7. Position a small screwdriver or pin punch into tang access hole on bottom of steering column.
8. Push the pin punch up while pulling key cylinder from steering column.

INSTALLATION
The ignition key must be in the key cylinder for cylinder installation.
1. Install the lock cylinder into the housing using care to align the end of the lock cylinder with the ignition switch.
2. Push the lock cylinder in until it clicks.
3. Rotate the key to the lock position.
4. install the halo ring around the lock cylinder housing.
5. Install the R.K.E. module.
6. Install the lower shroud cover.
