Connector Locations

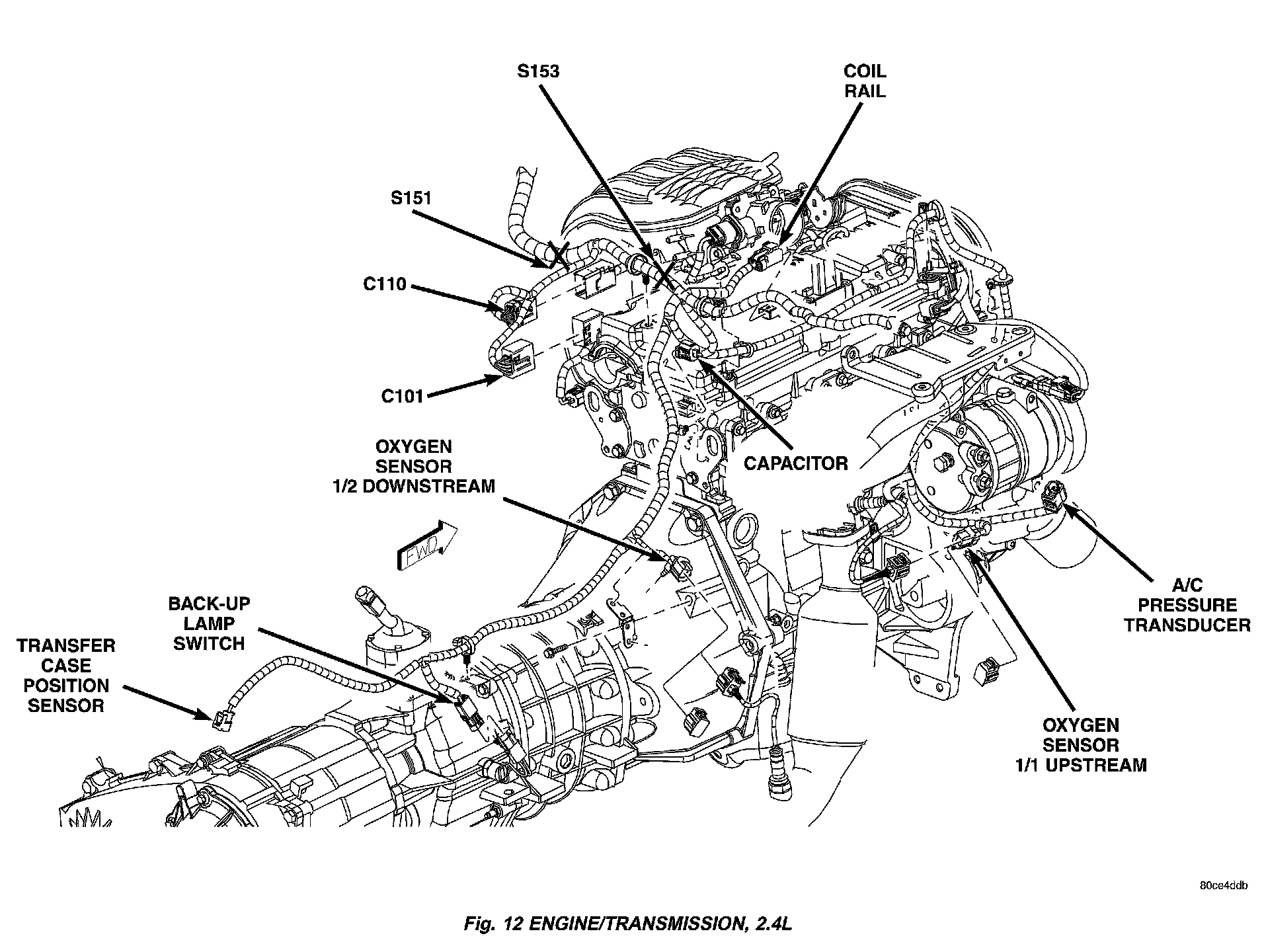

Fig. 12 Engine / Transmission, 2.4L:

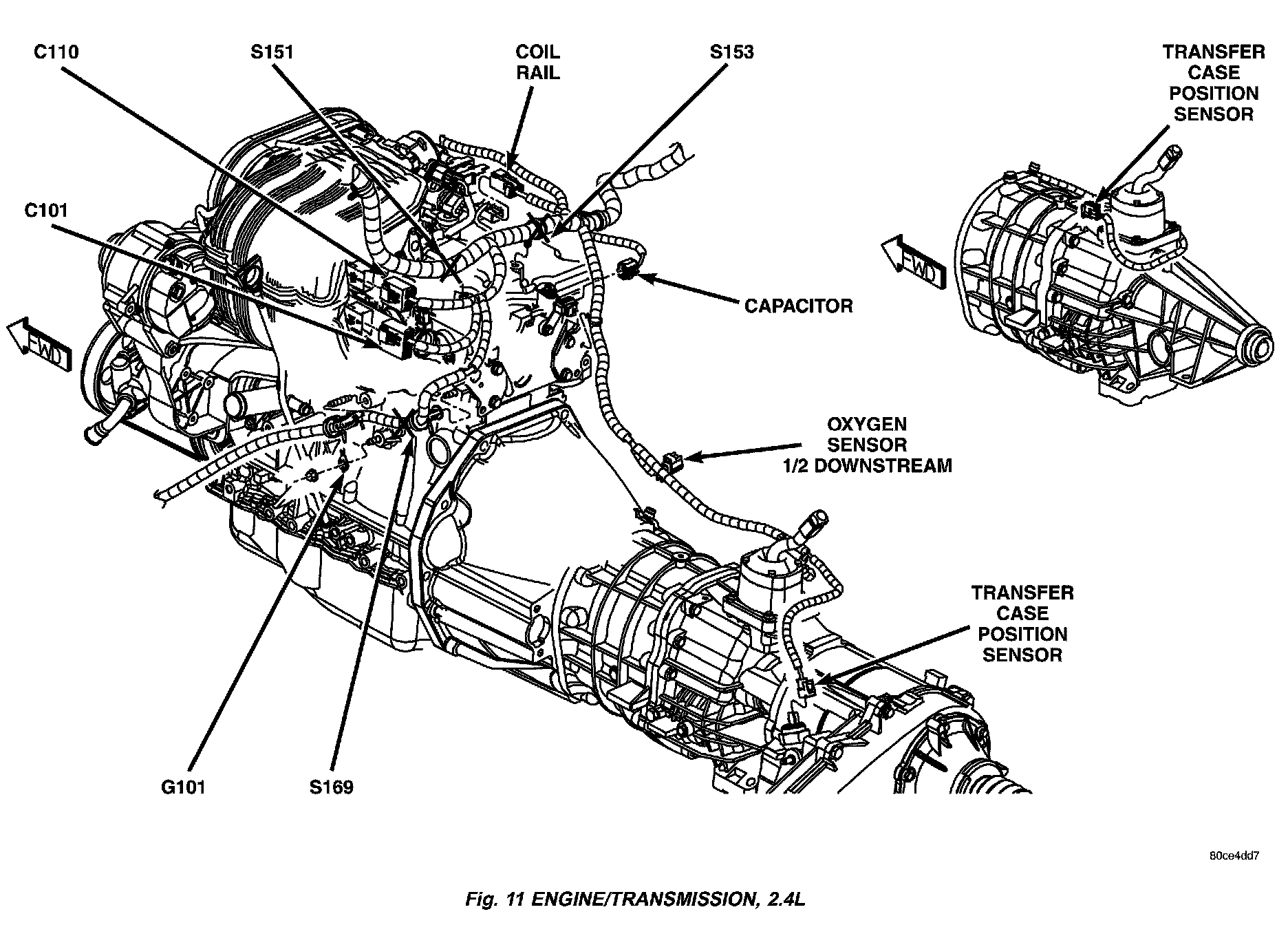

Fig. 11 Engine / Transmission, 2.4L:

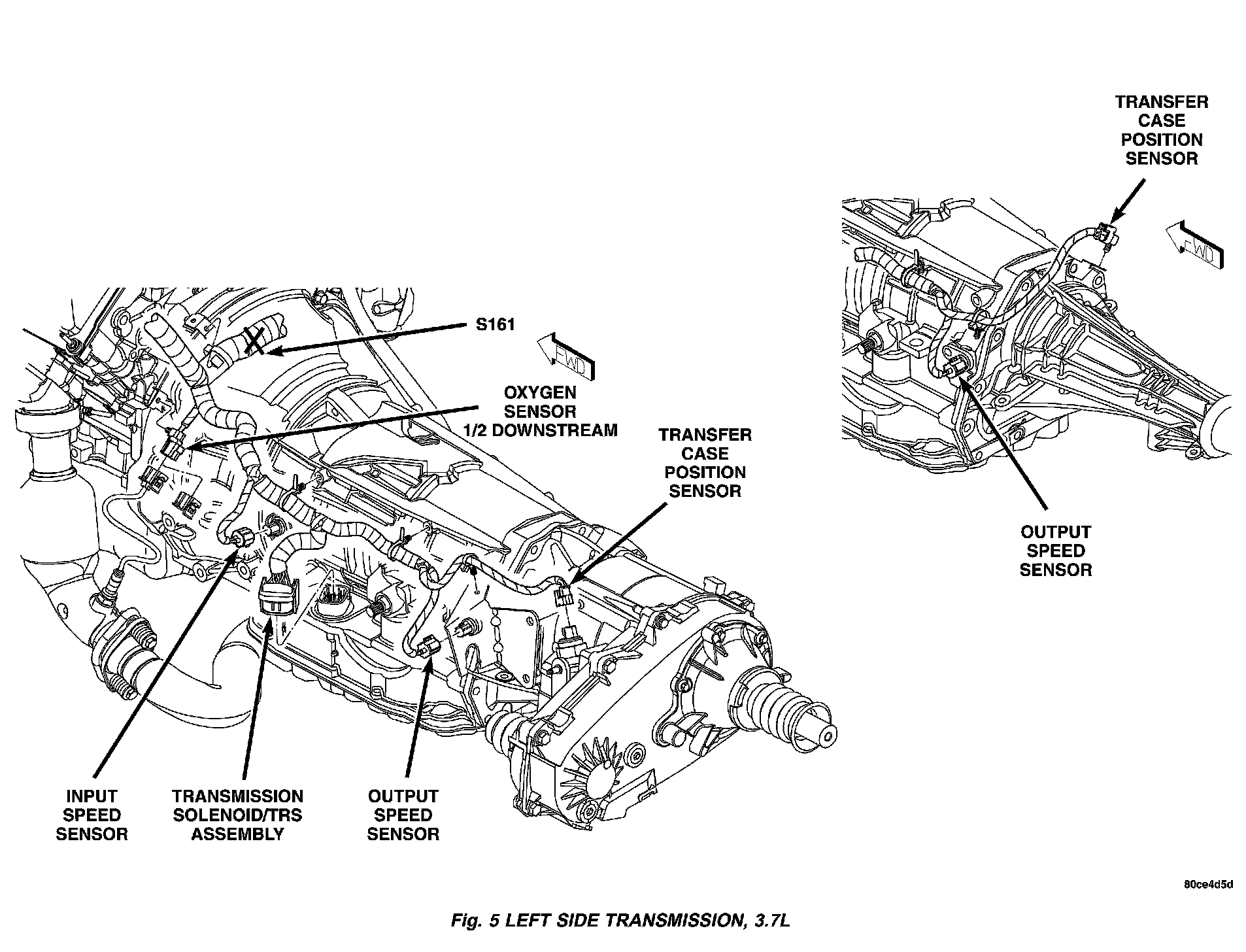

Fig. 5 Left Side Transmission 3.7L:

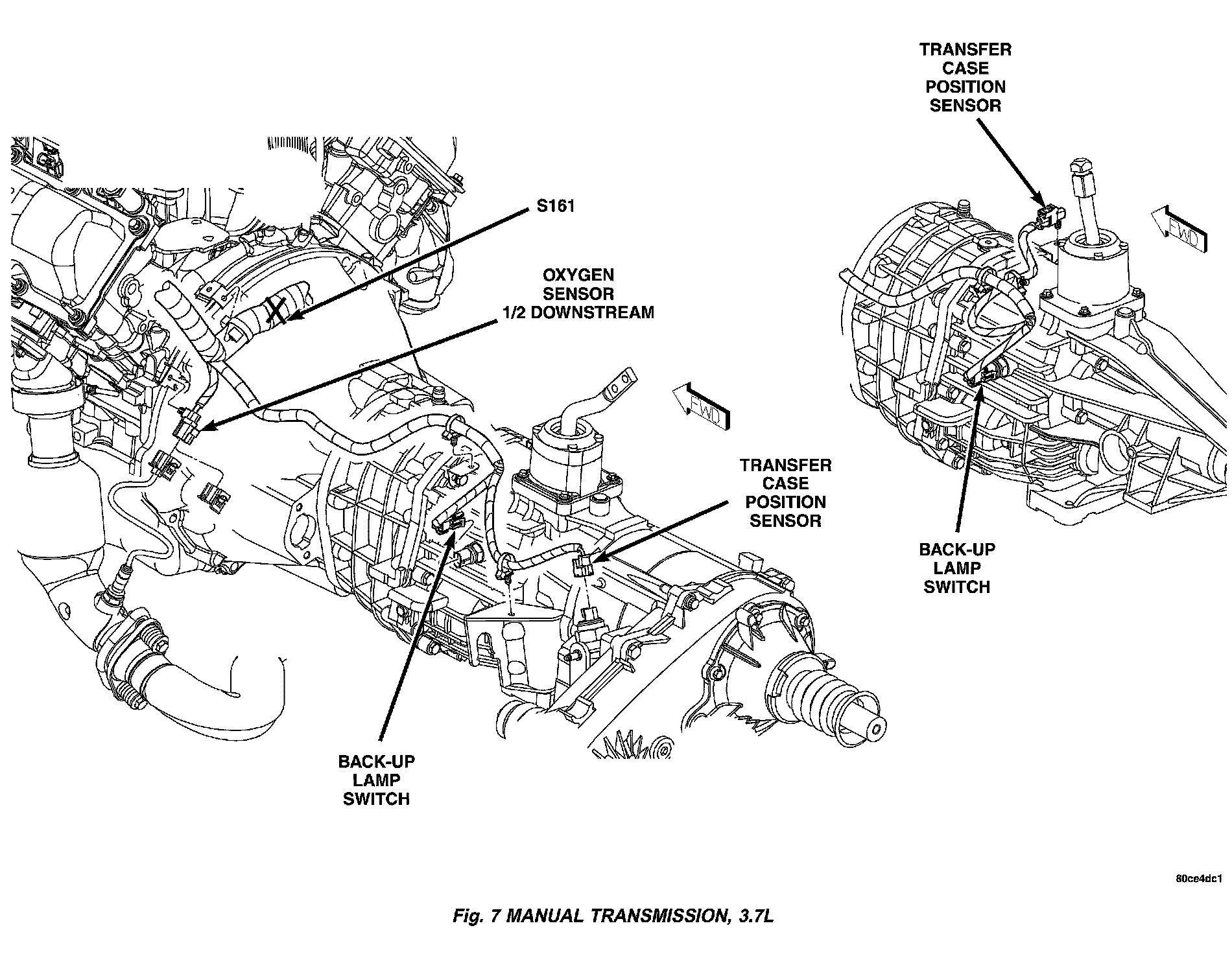

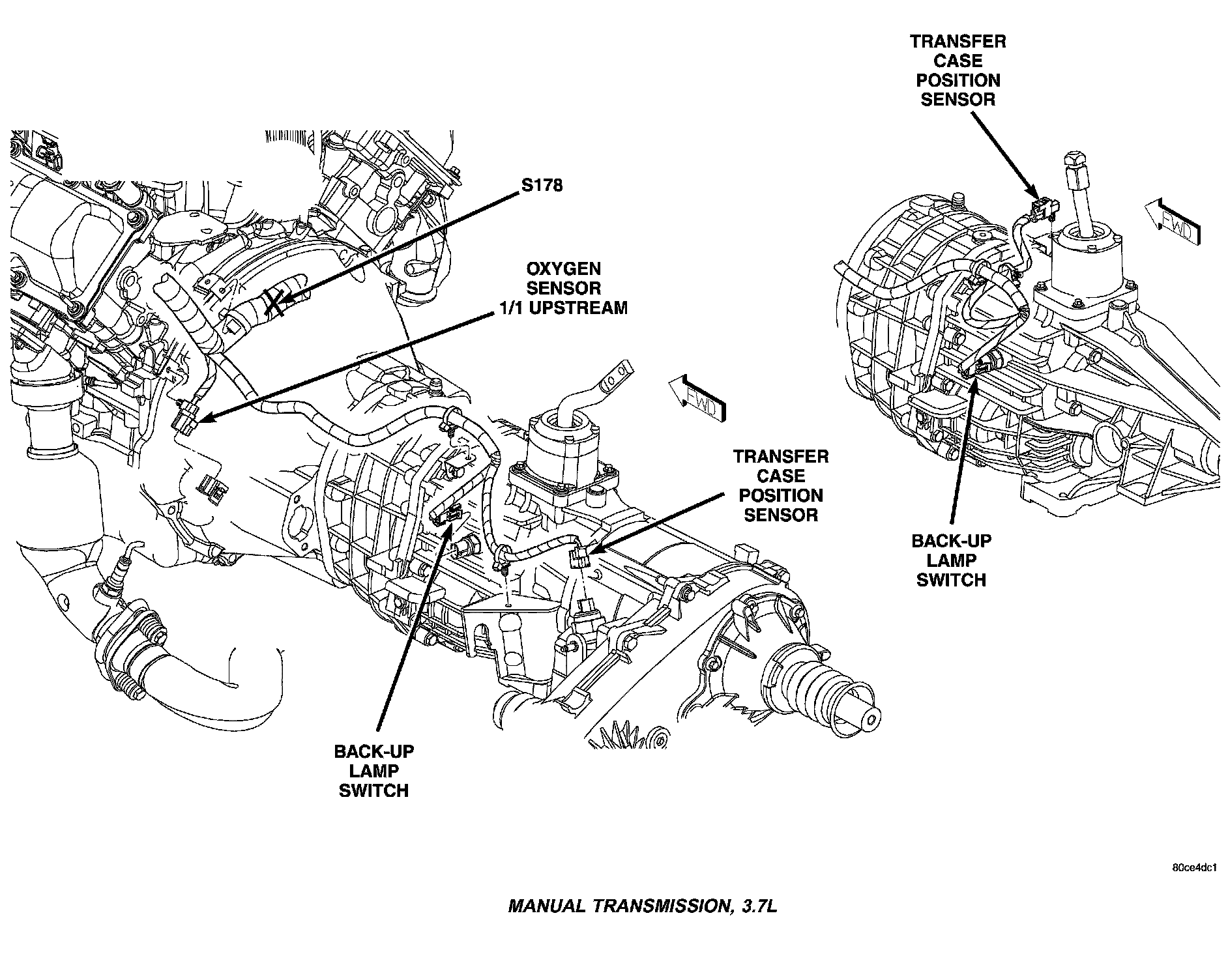

Fig.7 Manual Transmission, 3.7L:

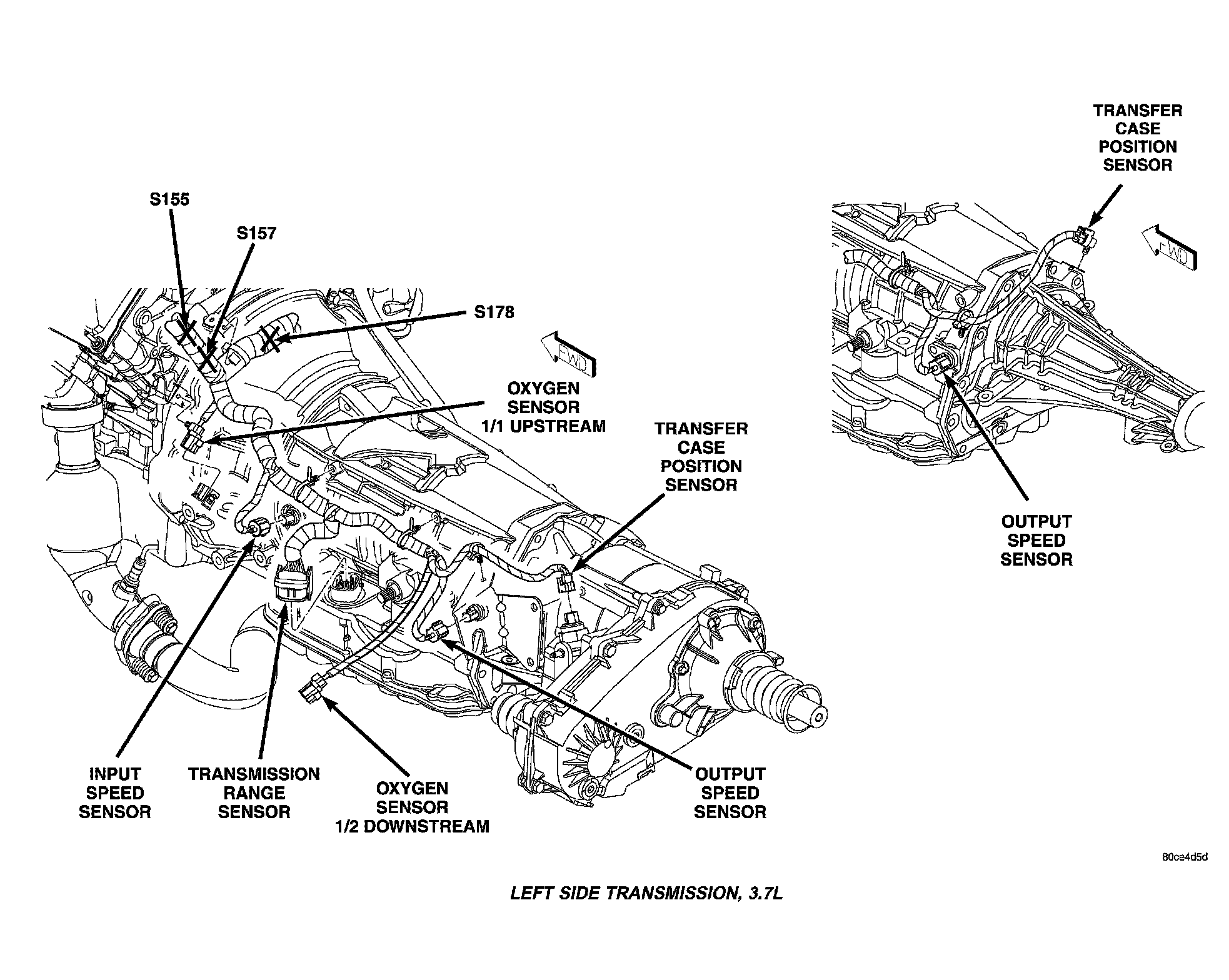

Left Side Transmission (3.7L):

Manual Transmission (3.7L):

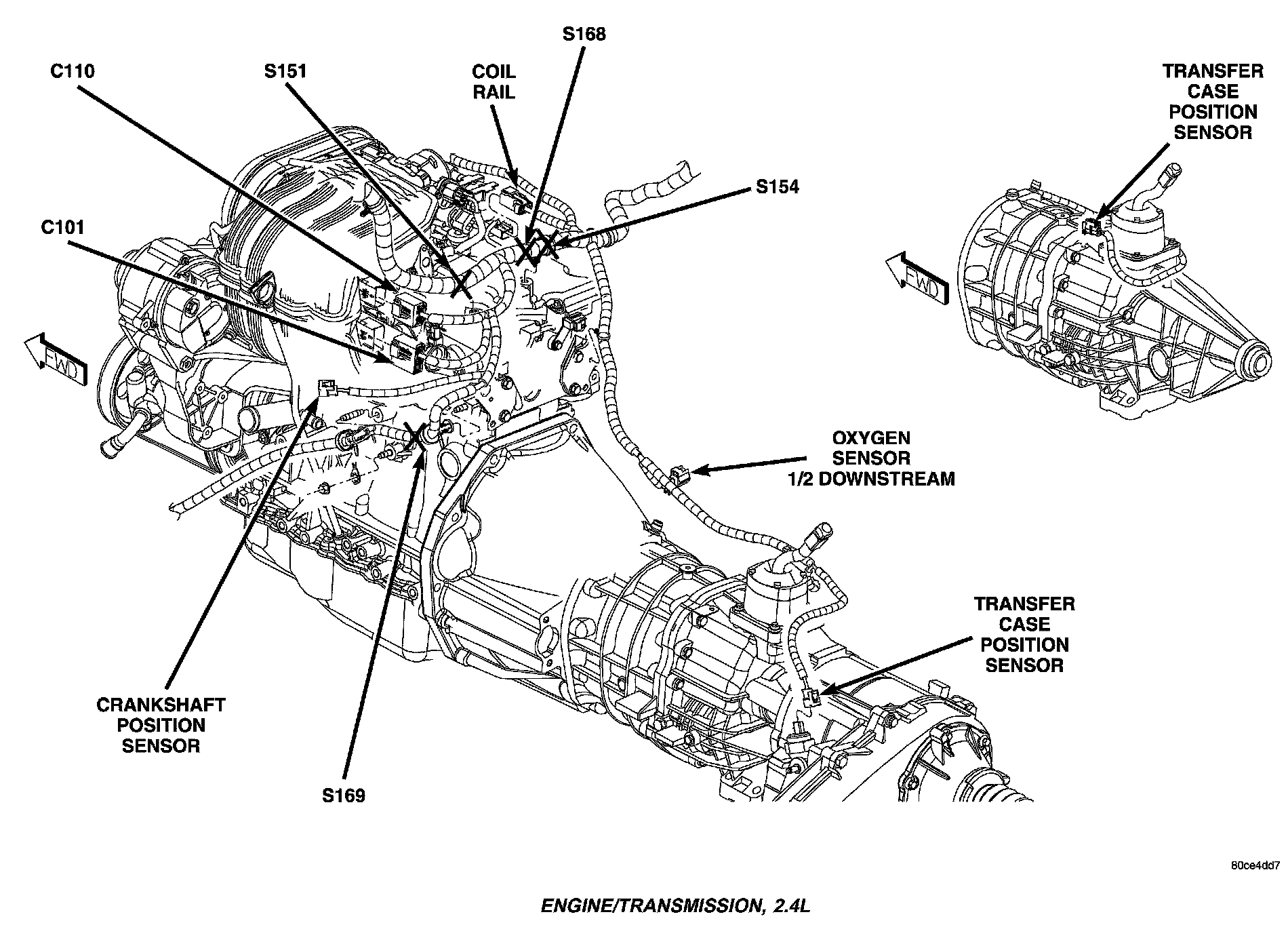

Engine/Transmission (2.4L):

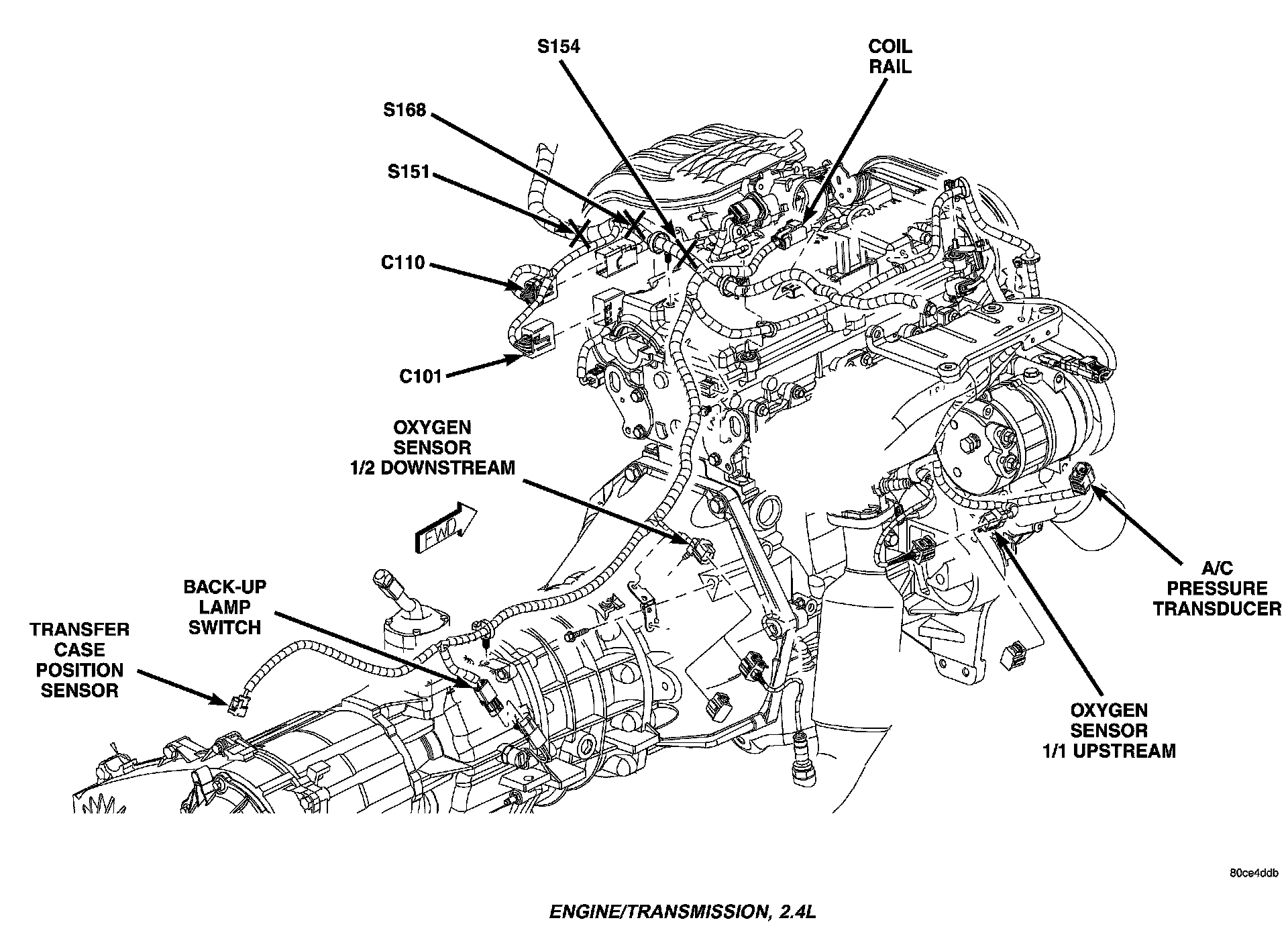

Engine/Transmission (2.4L):

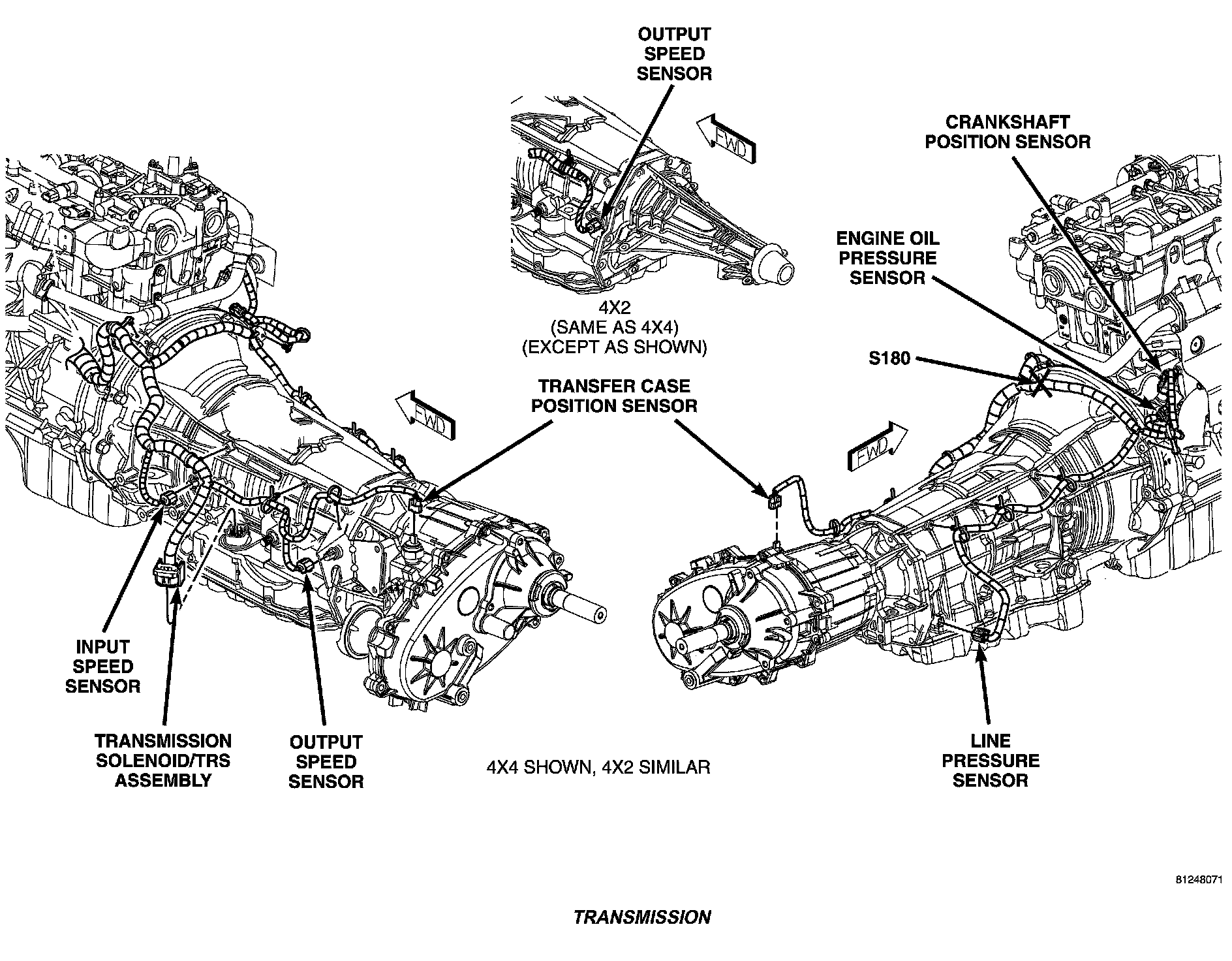

Transmission:
