ORC Airbag Control Module Connector End View (C1)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
ORC Airbag Control Module Connector End View (C1)

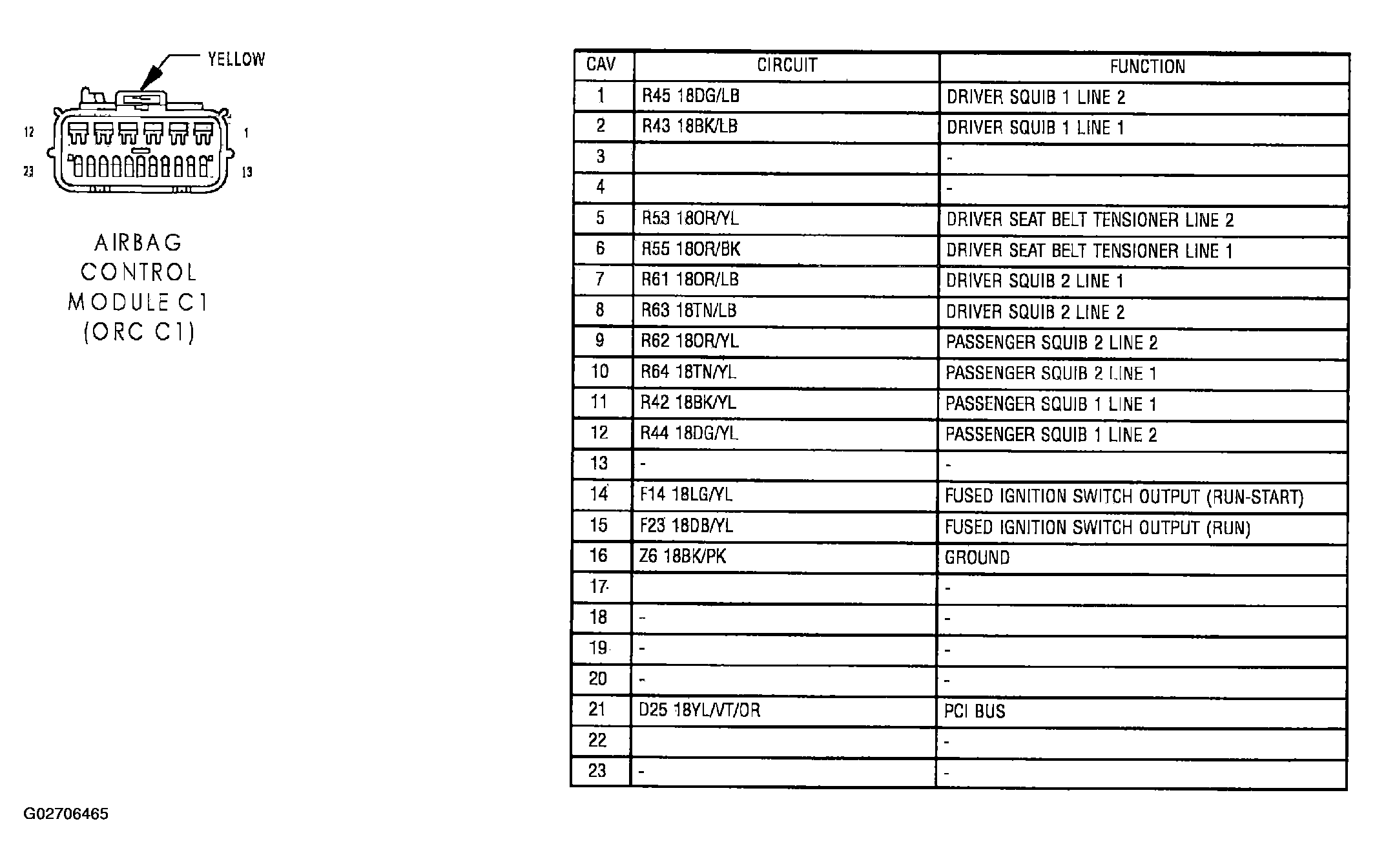

Fig 1: ORC Airbag Control Module Connector End View (C1)
Courtesy of DAIMLERCHRYSLER CORP.
