Checking Fuel Pressure Leak Down

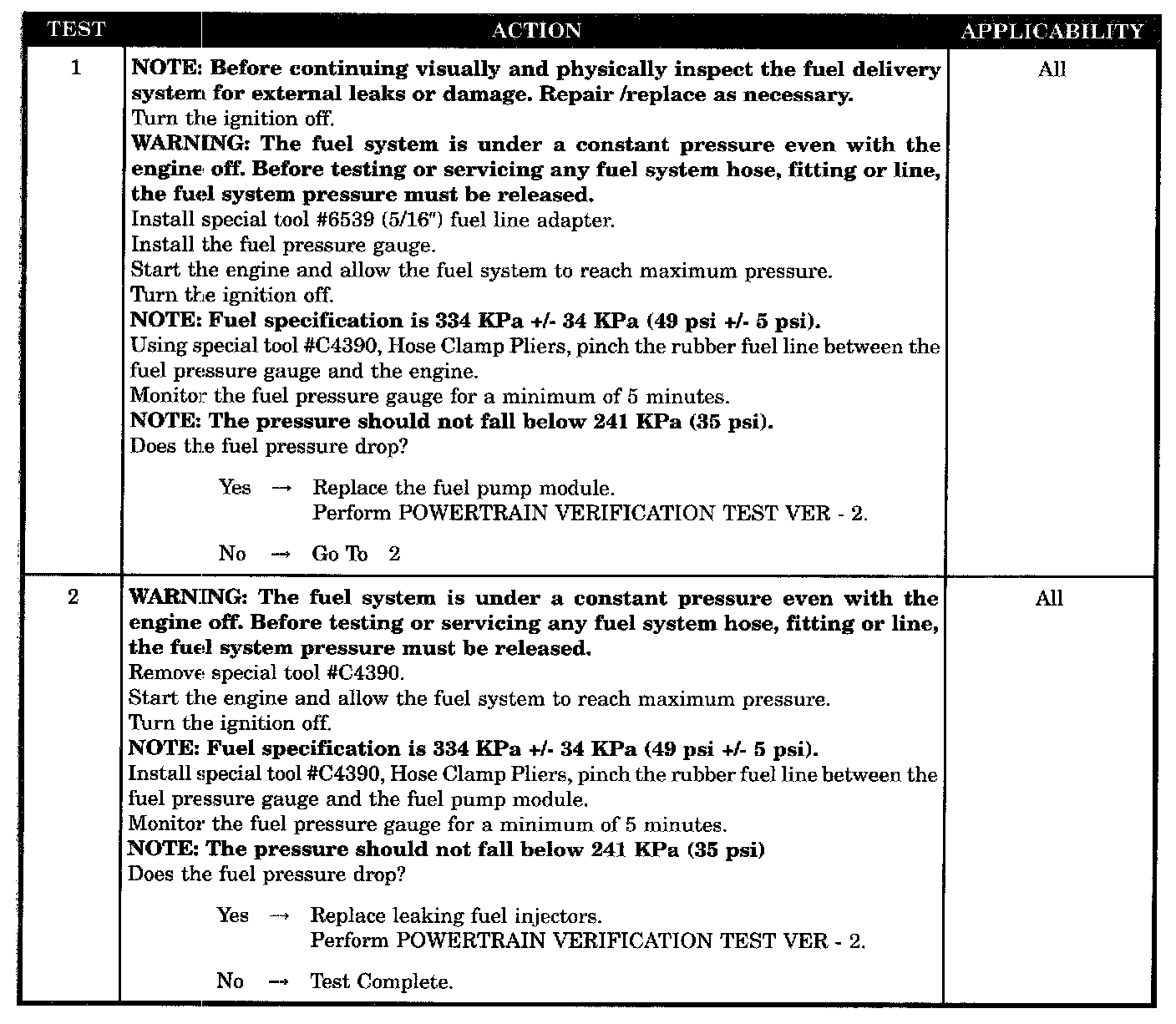

Test 1 - 2:






SYMPTOM
FUEL PRESSURE LEAK DOWN

POSSIBLE CAUSES
- Checking fuel leak down
- Fuel injectors
