Fuel Delivery Check

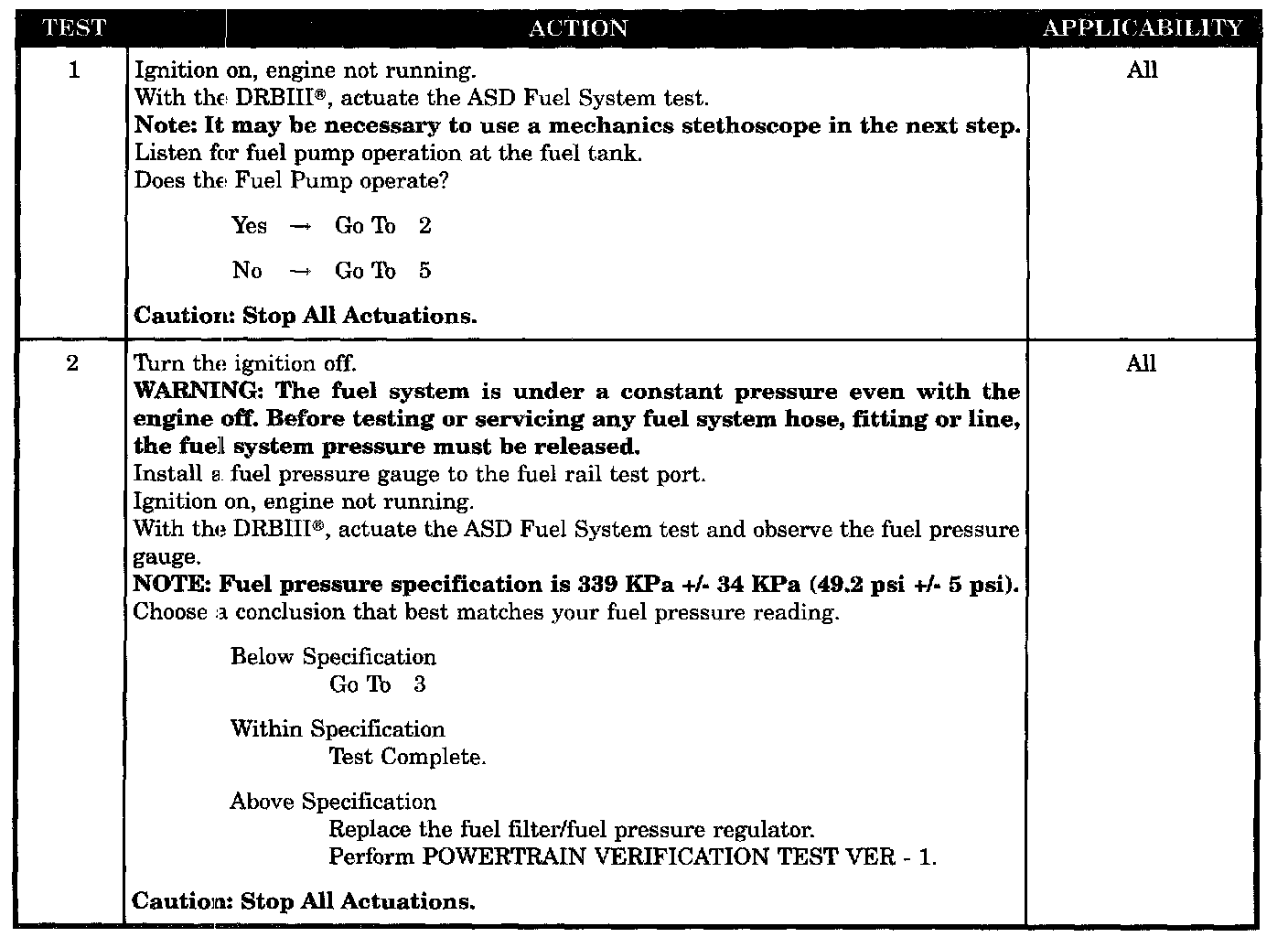

Test 1 - 2:

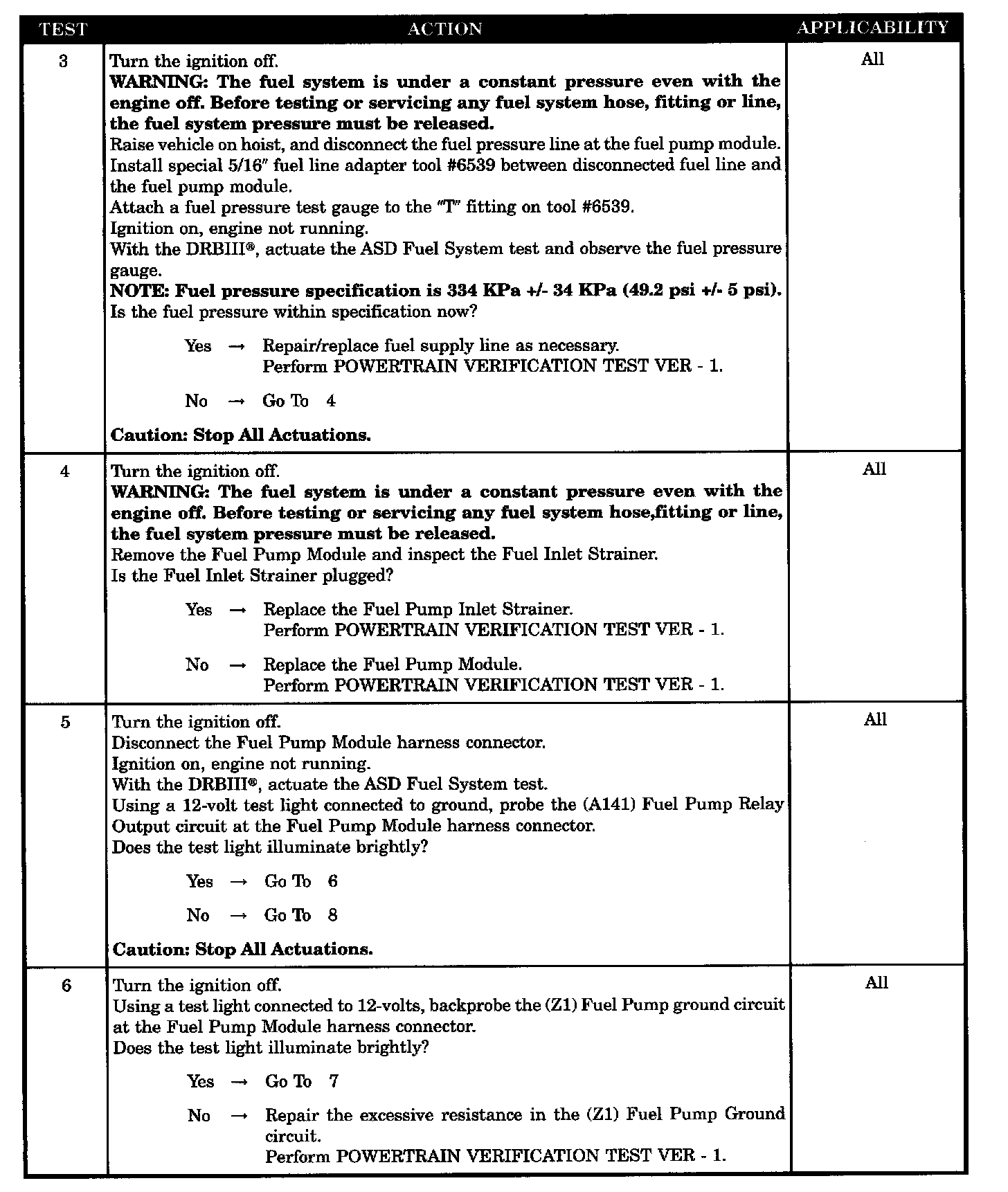

Test 3 - 6:

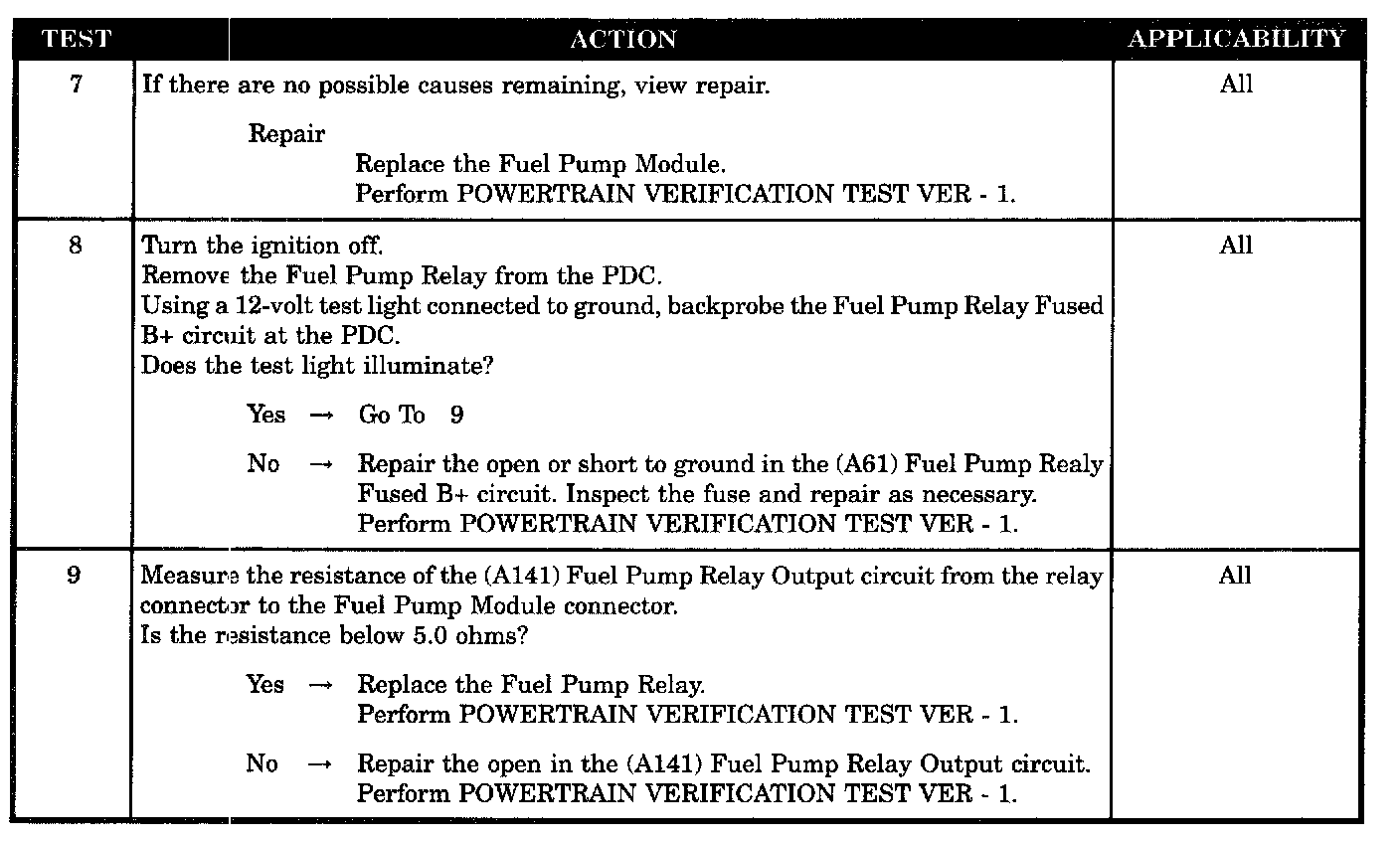

Test 7 - 9:

SYMPTOM
CHECKING FUEL DELIVERY

POSSIBLE CAUSES
- Fuel pump relay
- Fuel pressure out of specification
- restricted fuel supply line
- Fuel pump inject strainer plugged
- Fuel pump
- (A61) fused B+ circuit
- (A141) fuel pump relay output circuit open
- (Z1) fuel pump ground circuit excessive resistance
- Fuel pump module
