Ignition Coil: Service and Repair

REMOVAL
1. Disconnect electrical connector at rear of coil.
2. Remove all secondary cables from coil.

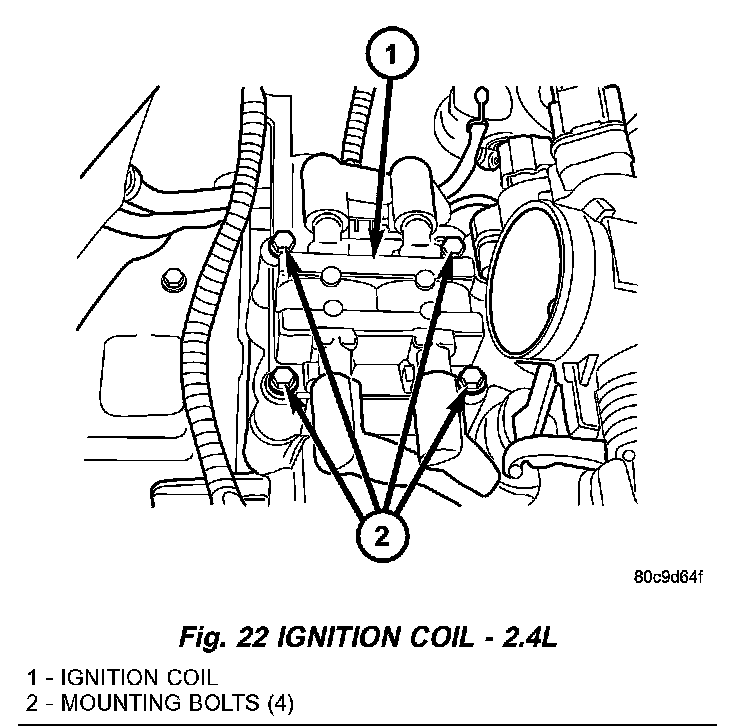

Fig. 22 Ignition Coil - 2.4L:

3. Remove 4 coil mounting bolts.
4. Remove coil from vehicle.

INSTALLATION
1. Position coil to engine.
2. Install 4 mounting bolts. Refer to torque specifications.
3. Install secondary cables.
4. Install electrical connector at rear of coil.
5. Install air cleaner tube and housing.
