Intake Manifold

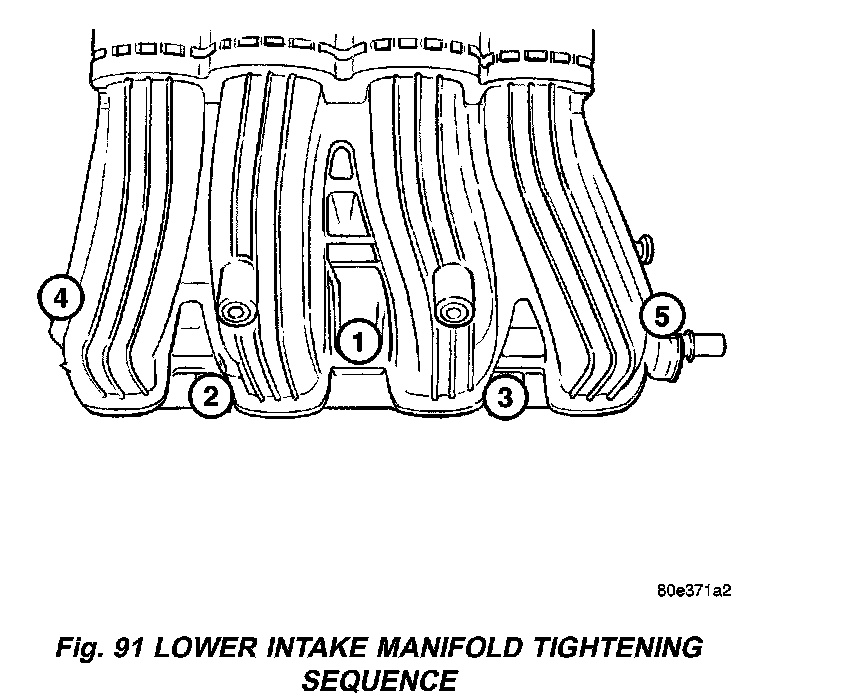

Install and tighten intake manifold fasteners to 28 Nm (250 inch lbs.) in the sequence shown (Fig. 91). Repeat procedure until all bolts are at specified torque.
Install and tighten intake manifold fasteners to 28 Nm (250 inch lbs.) in the sequence shown (Fig. 91). Repeat procedure until all bolts are at specified torque.
