Connector Locations

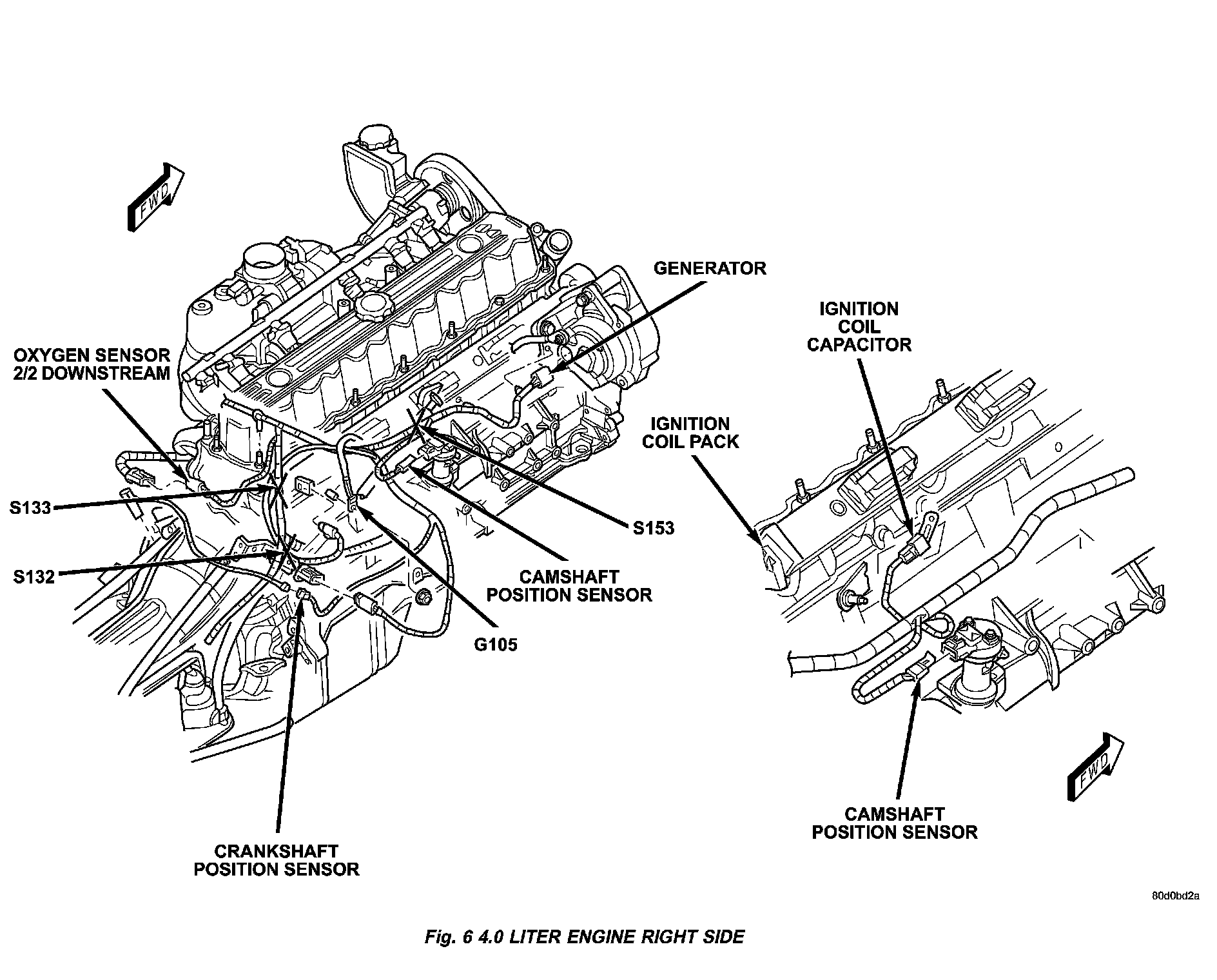

Fig.6 4.0L Engine Right Side:

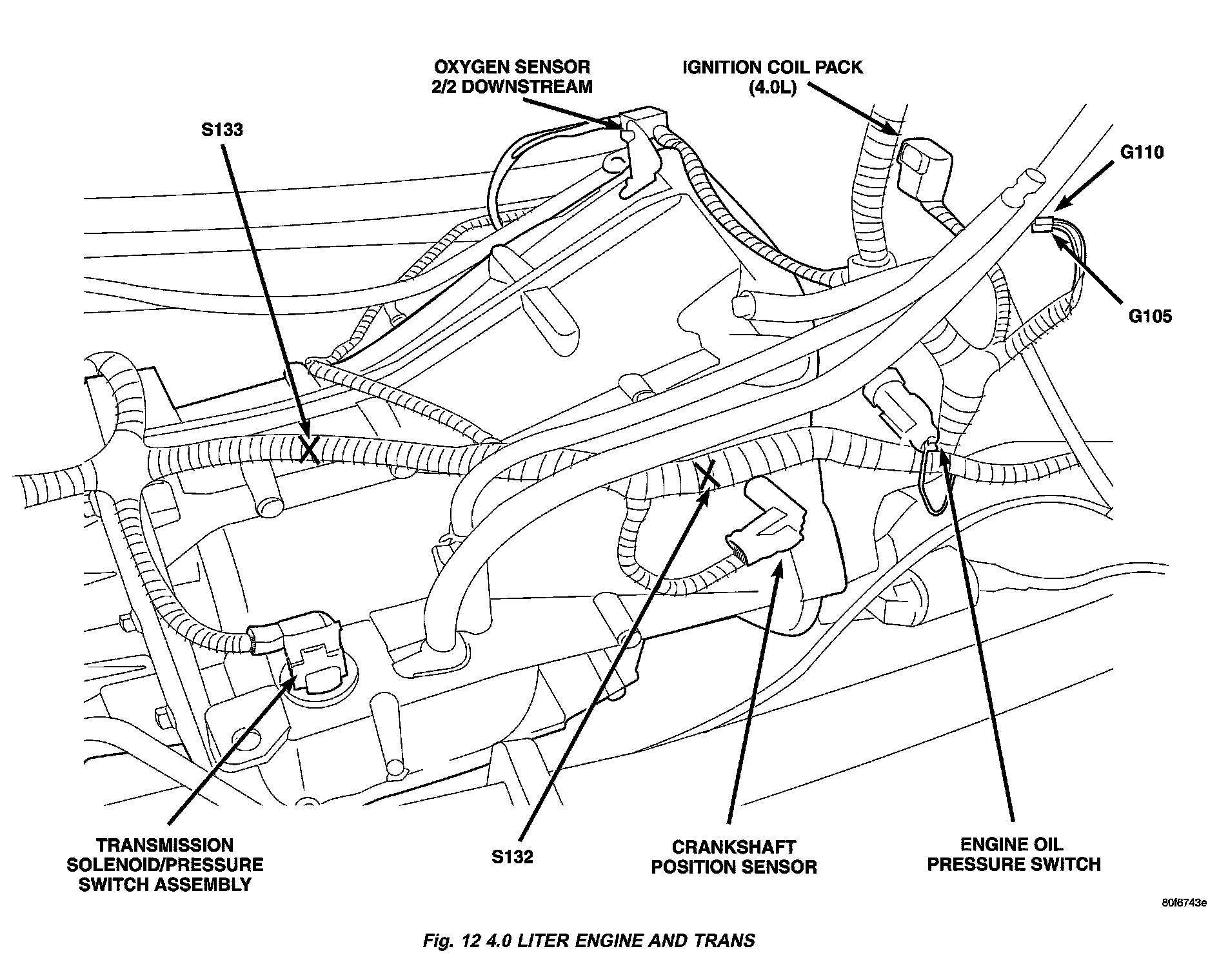

Fig.12 4.0L Engine and Transmission:
Fig.31 Manual Transmission:
