Front Wiper Motor Connector End View

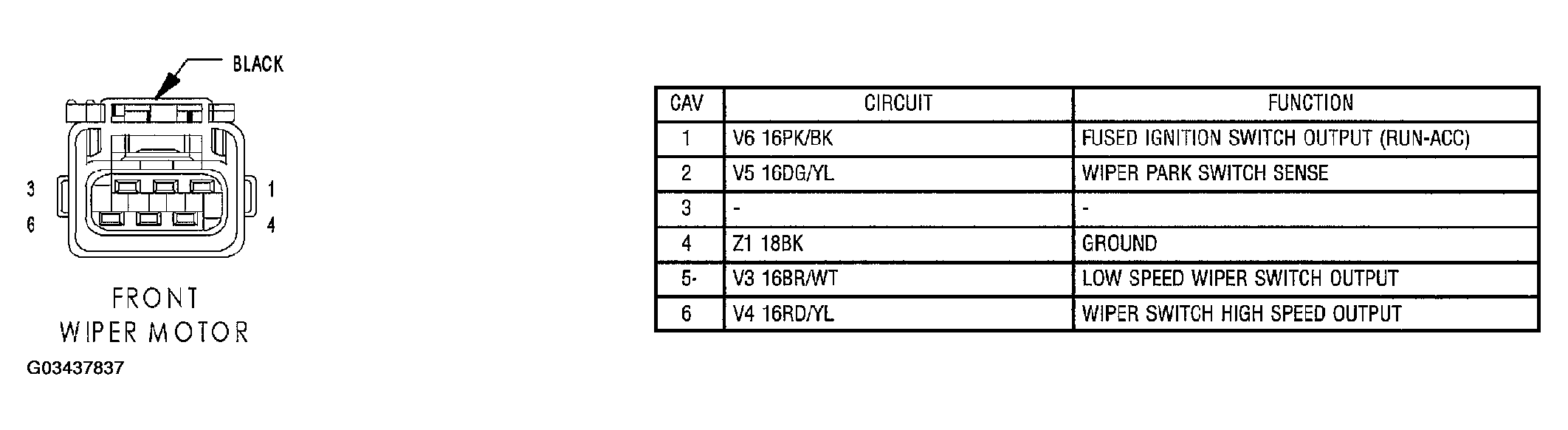

Fig 1: Front Wiper Motor Connector End View
G03437837Courtesy of DAIMLERCHRYSLER CORP.
