Connector End Views
>>
Compass/Temperature Mirror Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Compass/Temperature Mirror Connector End View

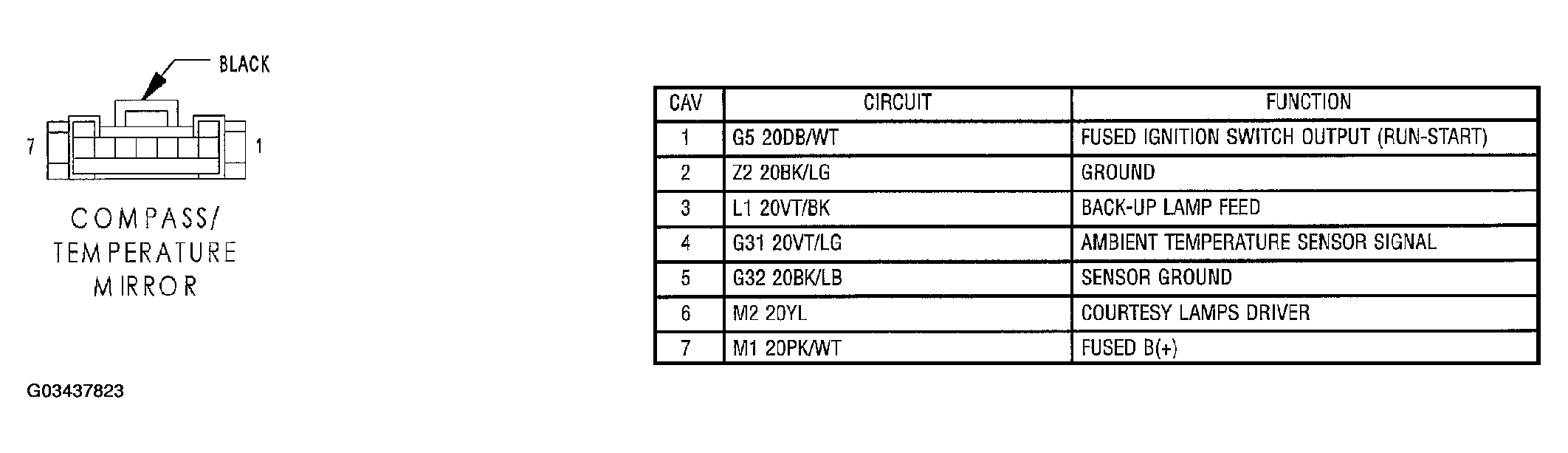

Fig 1: Compass/Temperature Mirror Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
