Oil Pressure Gauge Not Operating Properly

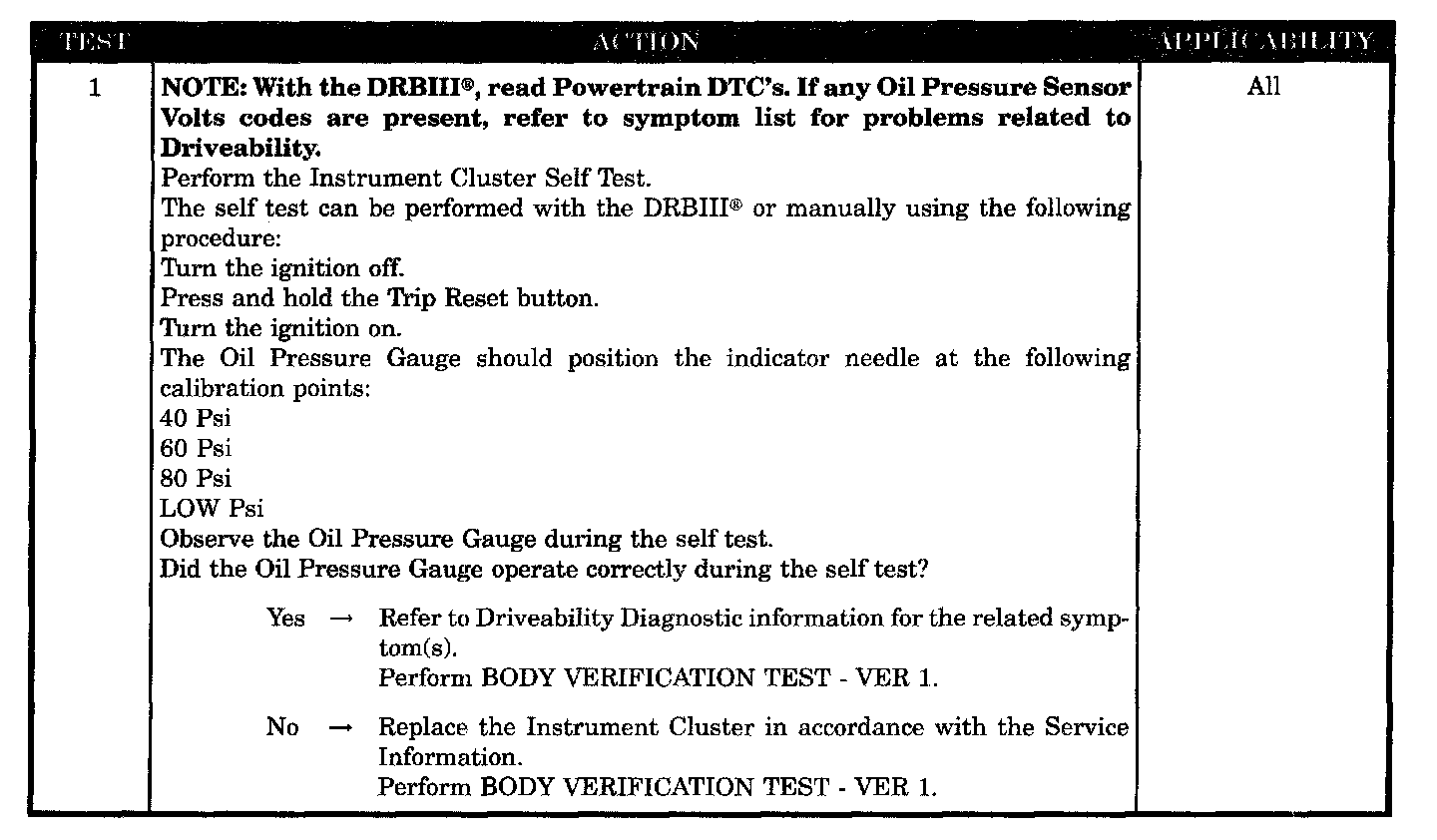

Test 1:






SYMPTOM
OIL PRESSURE GAUGE NOT OPERATING PROPERLY

POSSIBLE CAUSES
- DTC present
- Instrument cluster
