Transmission Control Module (4.7L) Connector End View

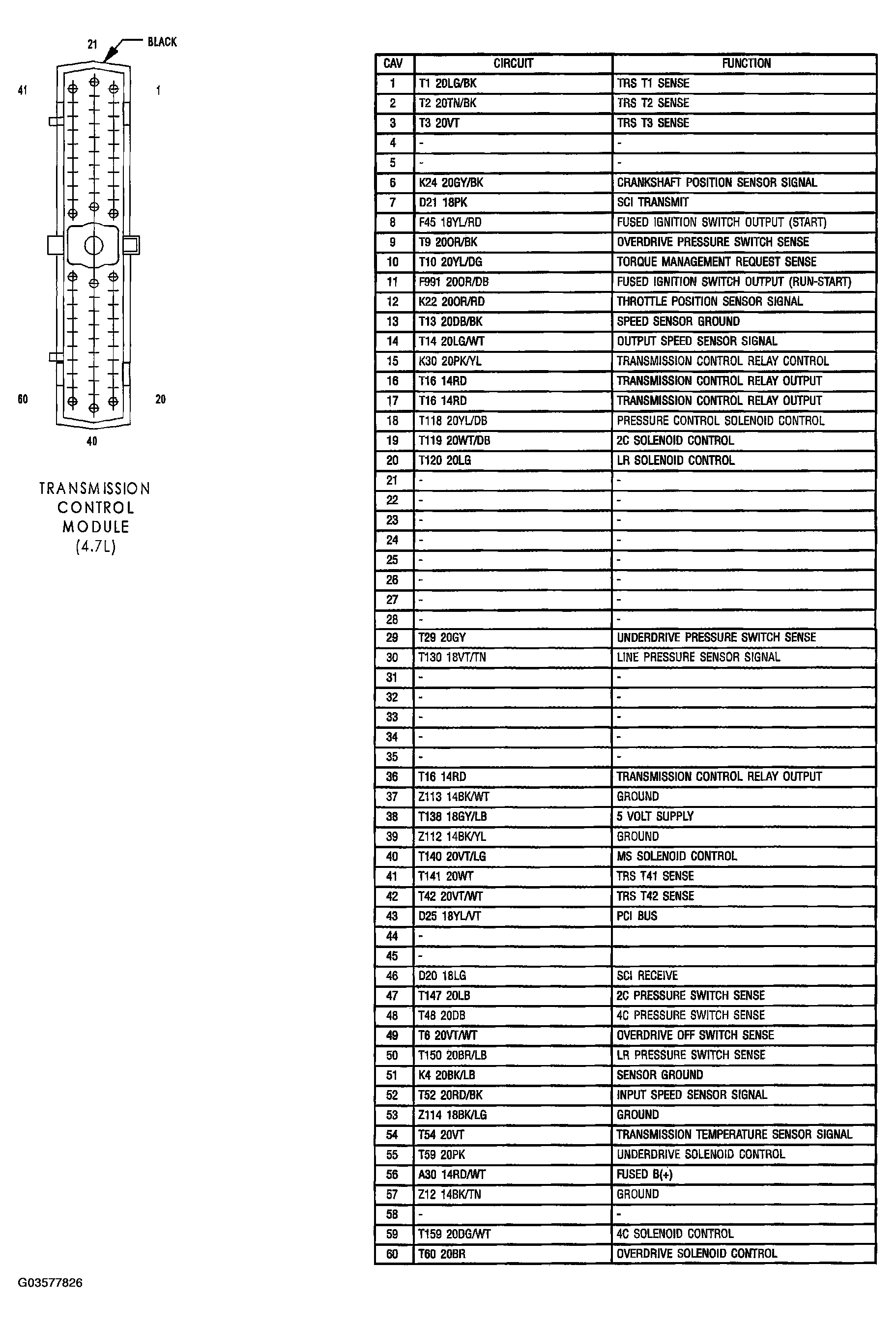

Fig 1: Transmission Control Module (4.7L) Connector End View
G03577826Courtesy of DAIMLERCHRYSLER CORP.
