C314 Connector End View

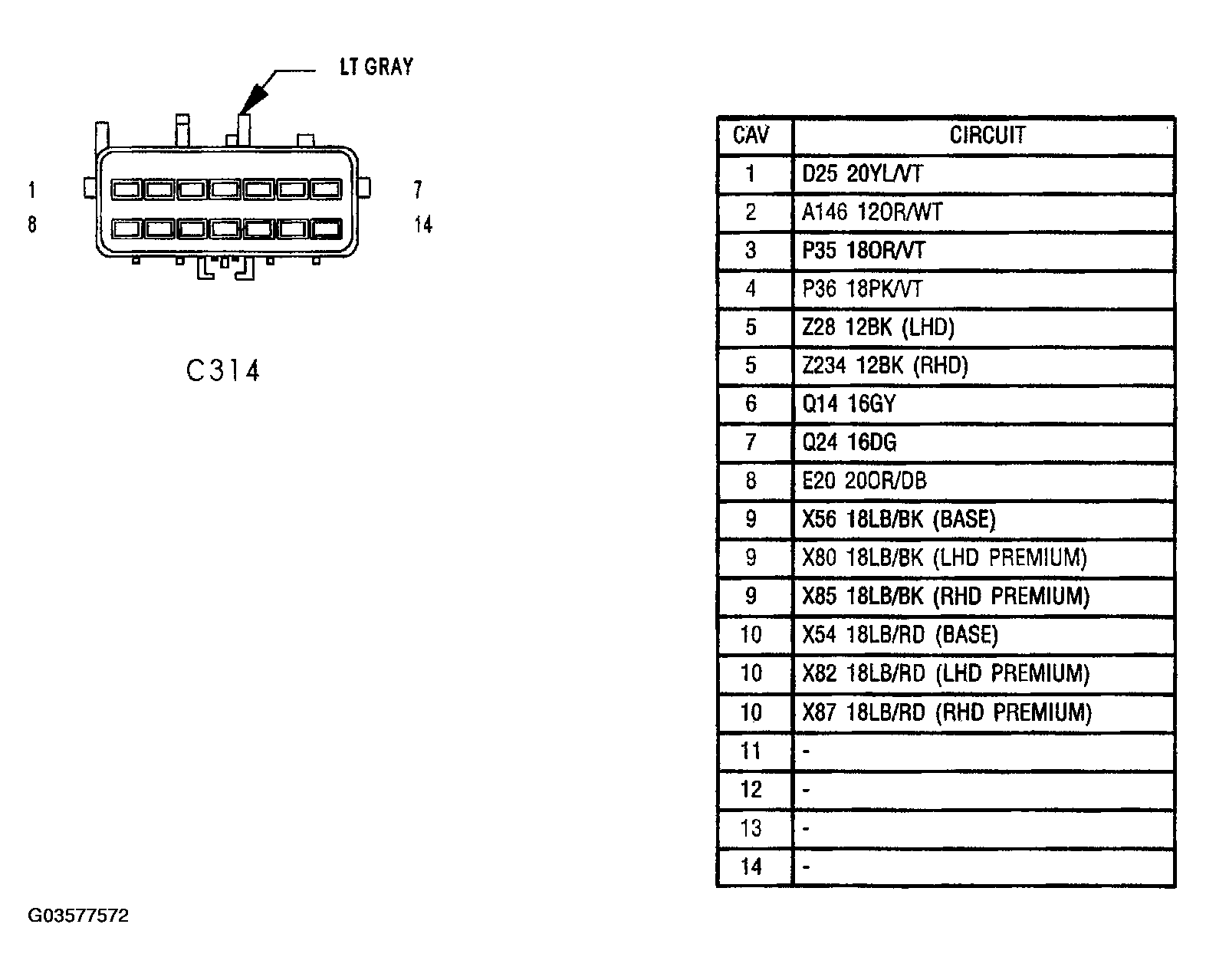

Fig 1: Front Passenger Door Side Inline Connector End View (C314)
G03577572Courtesy of DAIMLERCHRYSLER CORP.

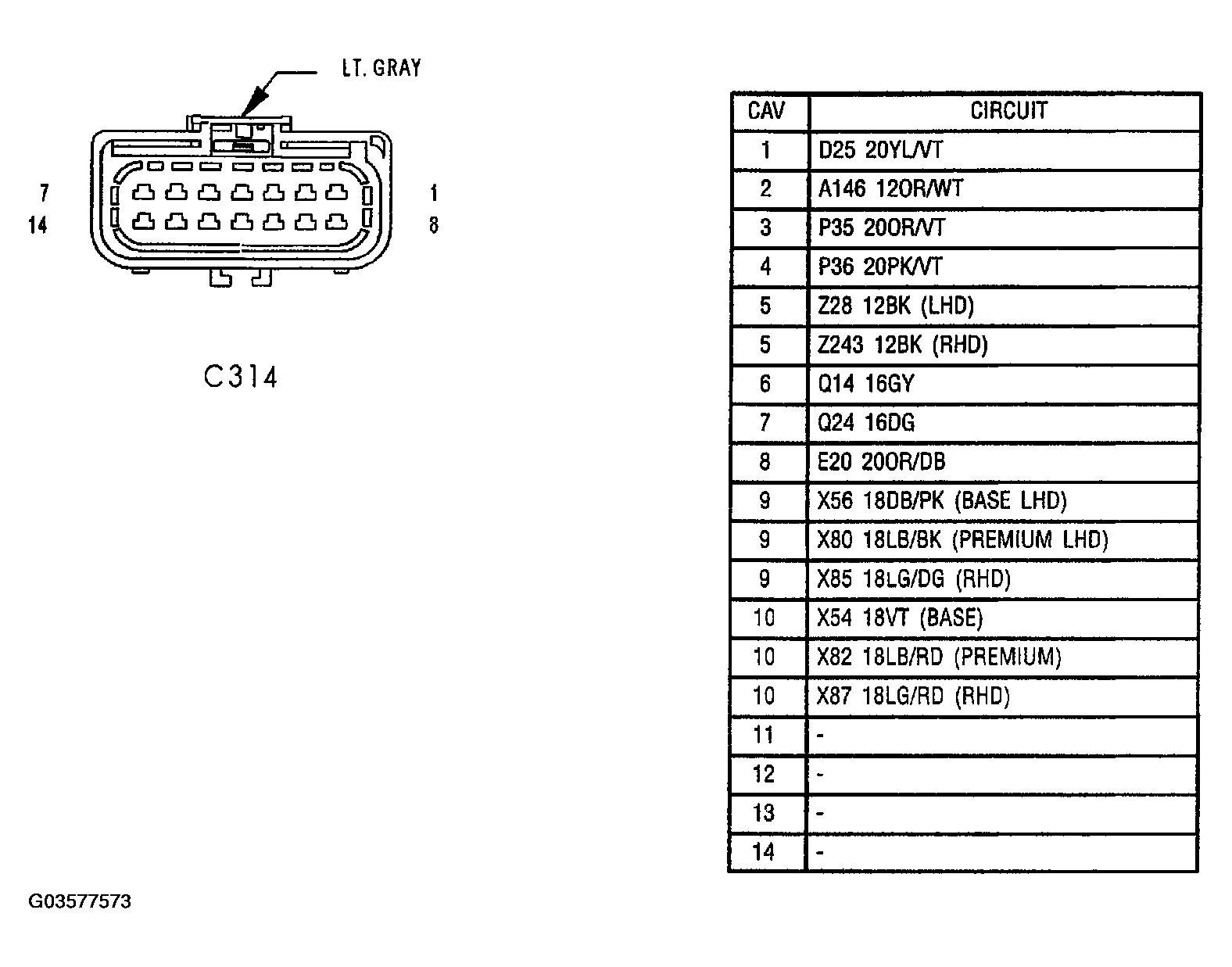

Fig 1: Body Side Inline Connector End View (C314)
G03577573Courtesy of DAIMLERCHRYSLER CORP.
