Speed Control Switch No. 1 Connector End View

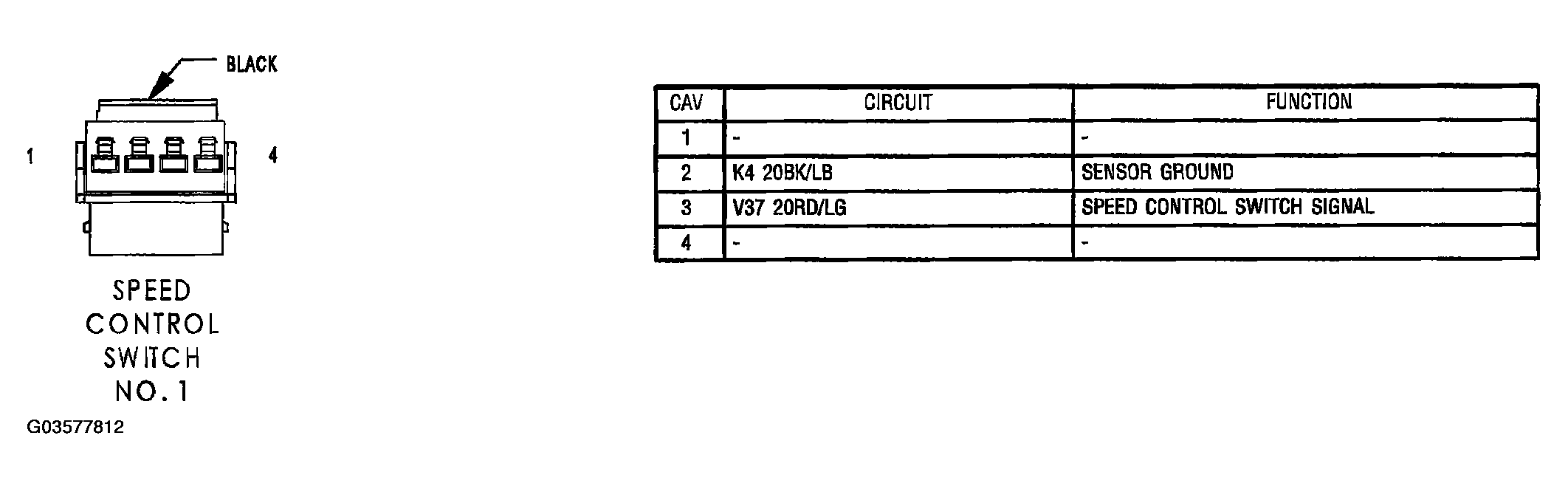

Fig 1: Speed Control Switch Connector End View (1)
G03577812Courtesy of DAIMLERCHRYSLER CORP.
