Verification Tests: Powertrain

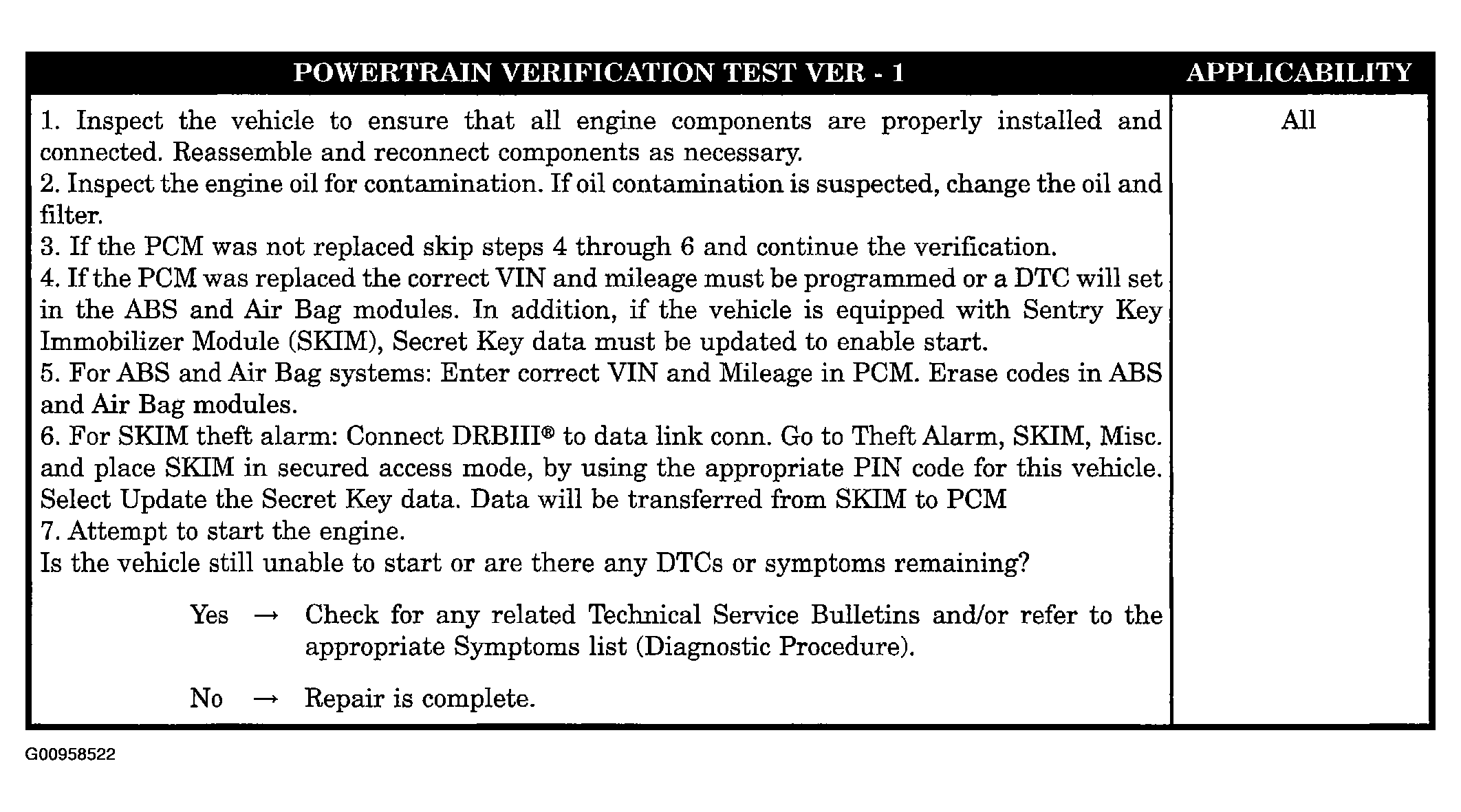

Fig 1: Powertrain Verification Test - VER-1
G00958522Courtesy of DAIMLERCHRYSLER CORP.

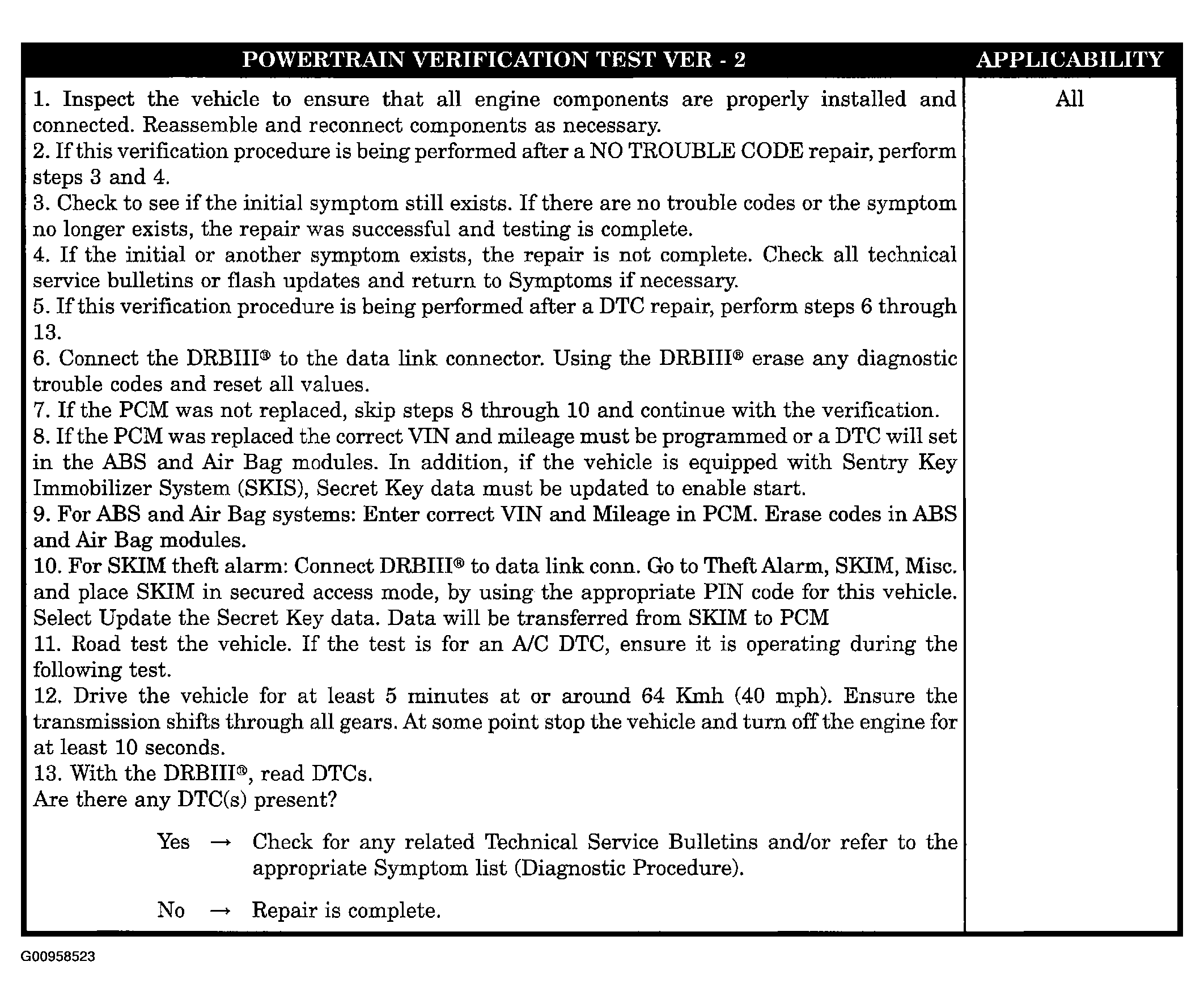

Fig 2: Powertrain Verification Test - VER-2
G00958523Courtesy of DAIMLERCHRYSLER CORP.
