Installation - 4.0L

The TPS is mounted to the throttle body.

The throttle shaft end of throttle body slides into a socket in the TPS (Fig 1 ). The TPS must be installed so that it can be rotated a few degrees. (If sensor will not rotate, install sensor with throttle shaft on other side of socket tangs). The TPS will be under slight tension when rotated.

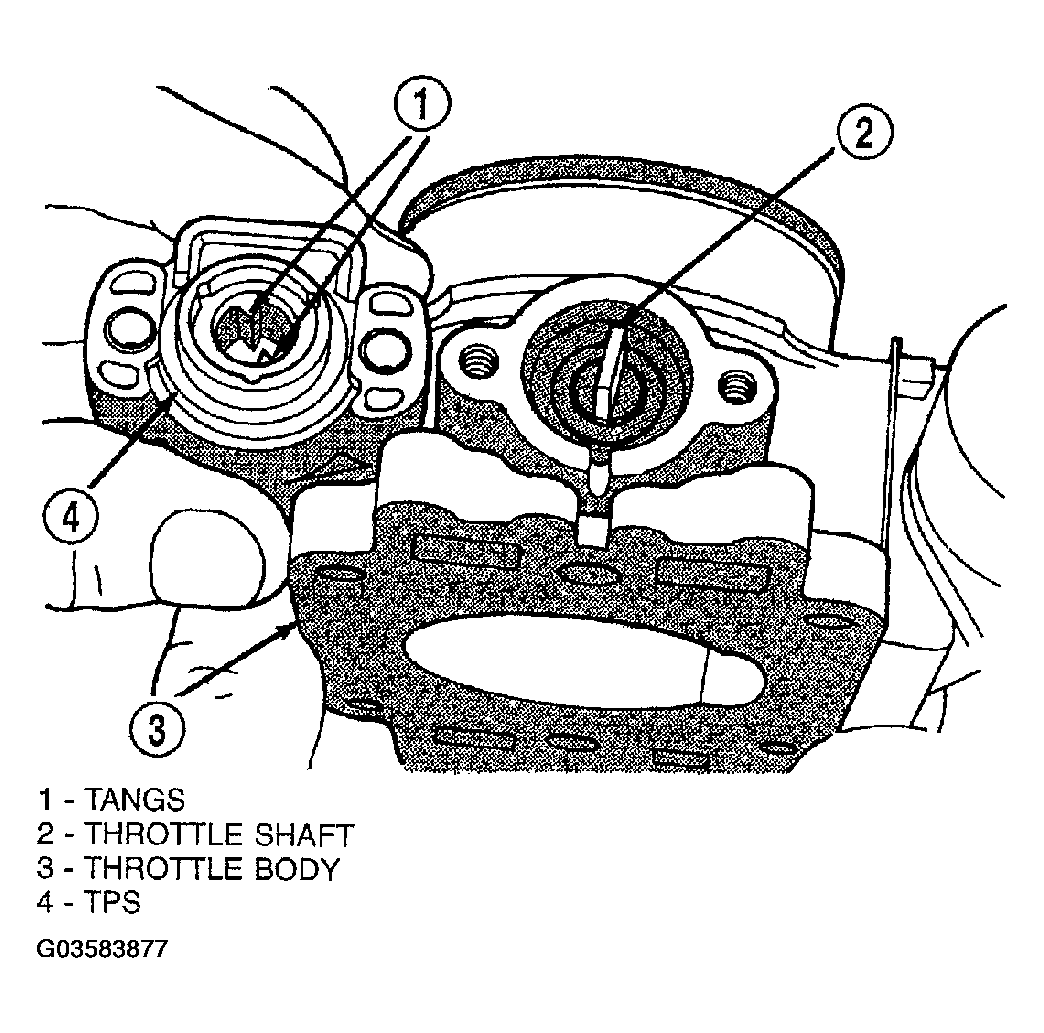

Fig 1: Throttle Position Sensor Installation - 4.0L Engine

Courtesy of DAIMLERCHRYSLER CORP.

1. Install TPS and retaining screws.
2. Tighten screws to 7 N.m (60 in. lbs.) torque.
3. Connect TPS electrical connector to TPS.
4. Manually operate throttle (by hand) to check for any TPS binding before starting engine.
