Adjustable Pedals Module (Except Export) Connector End View

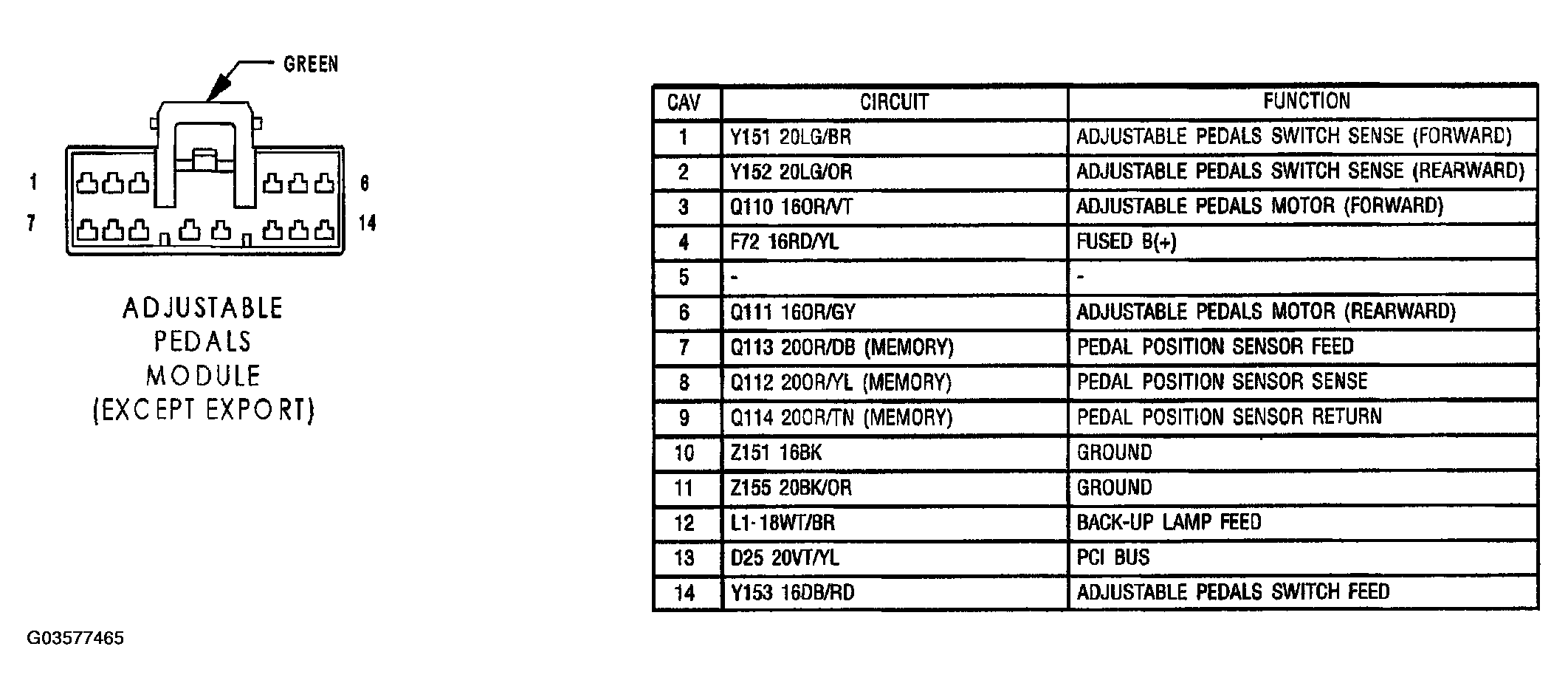

Fig 1: Adjustable Pedals Module (Except Export) Connector End View
G03577465Courtesy of DAIMLERCHRYSLER CORP.
