Driver Power Mirror Connector End View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Driver Power Mirror Connector End View

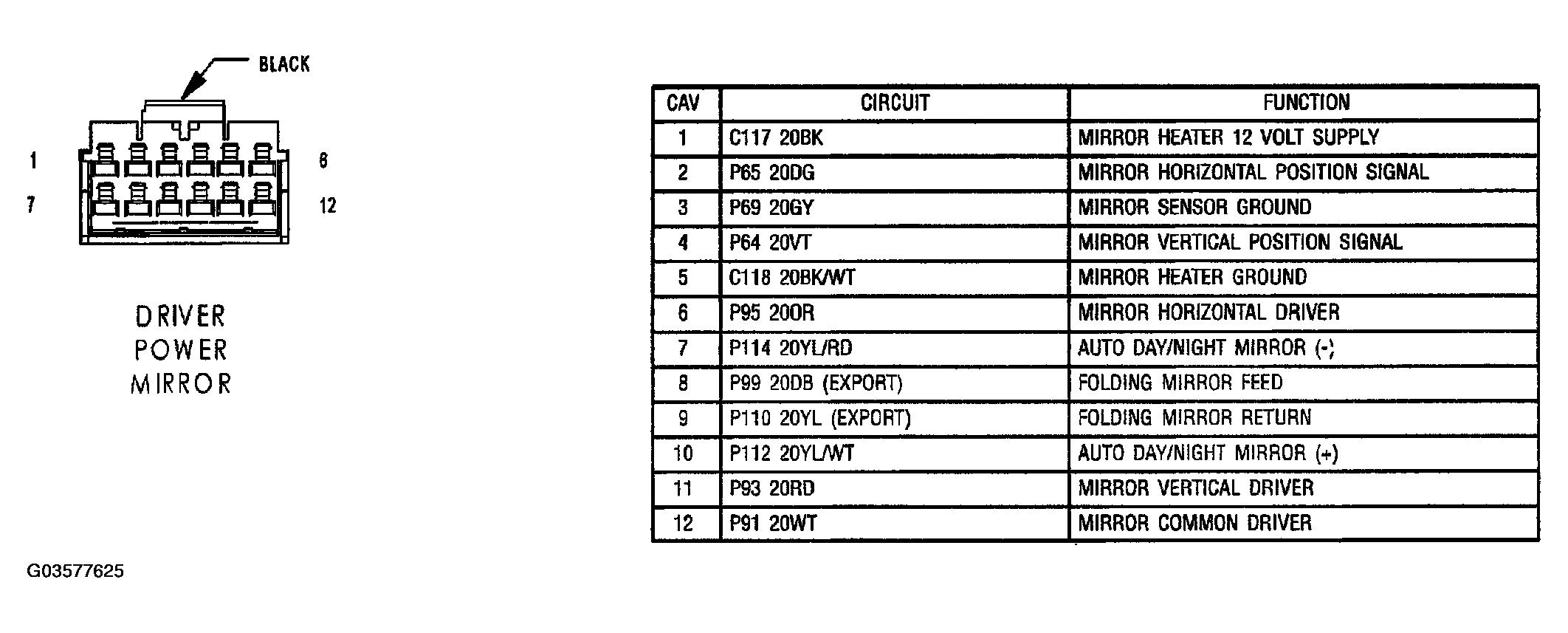

Fig 1: Driver Power Mirror Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
