Please Note:

PLEASE NOTE:
If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

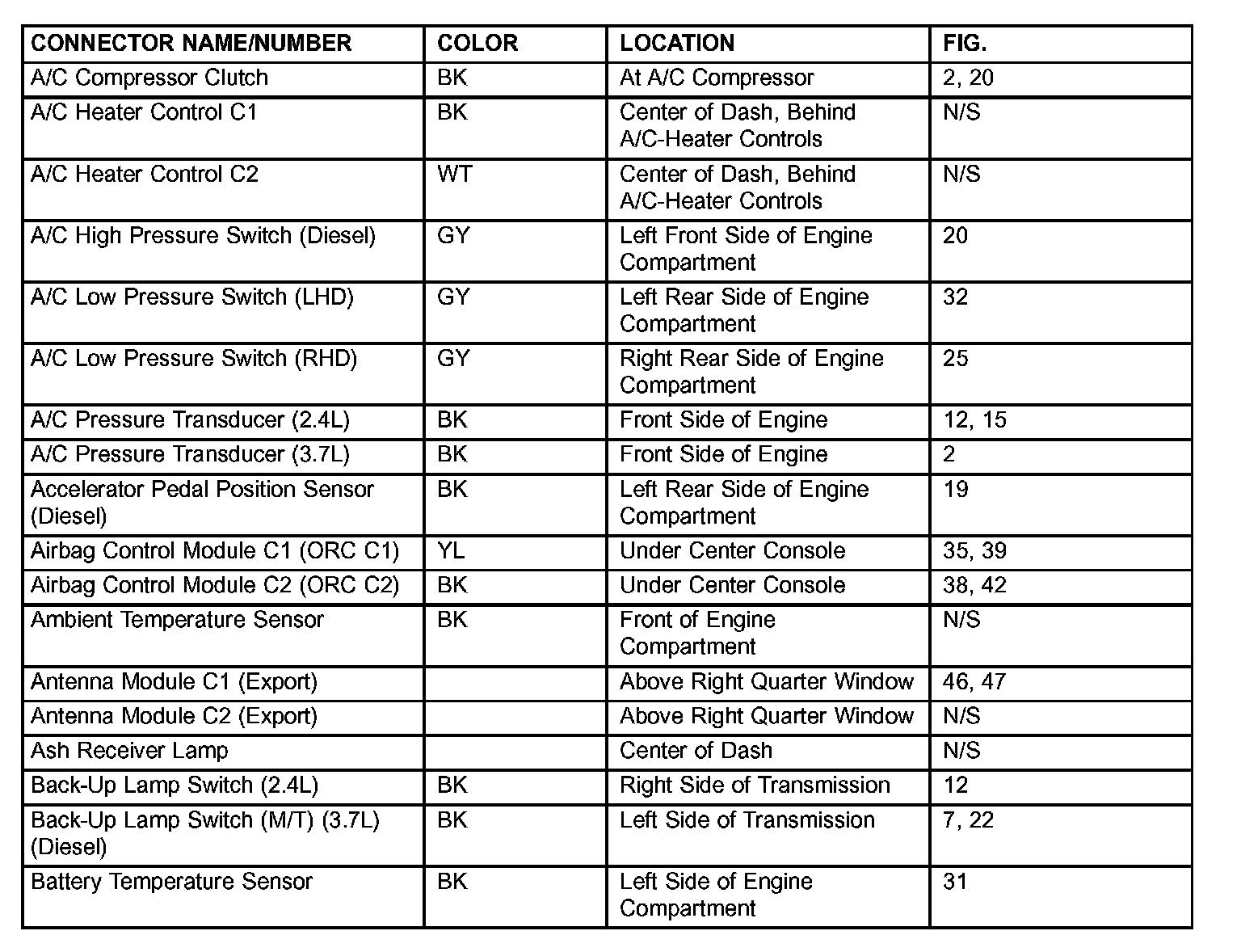

A/C Compressor Clutch - Battery Temperature Sensor:

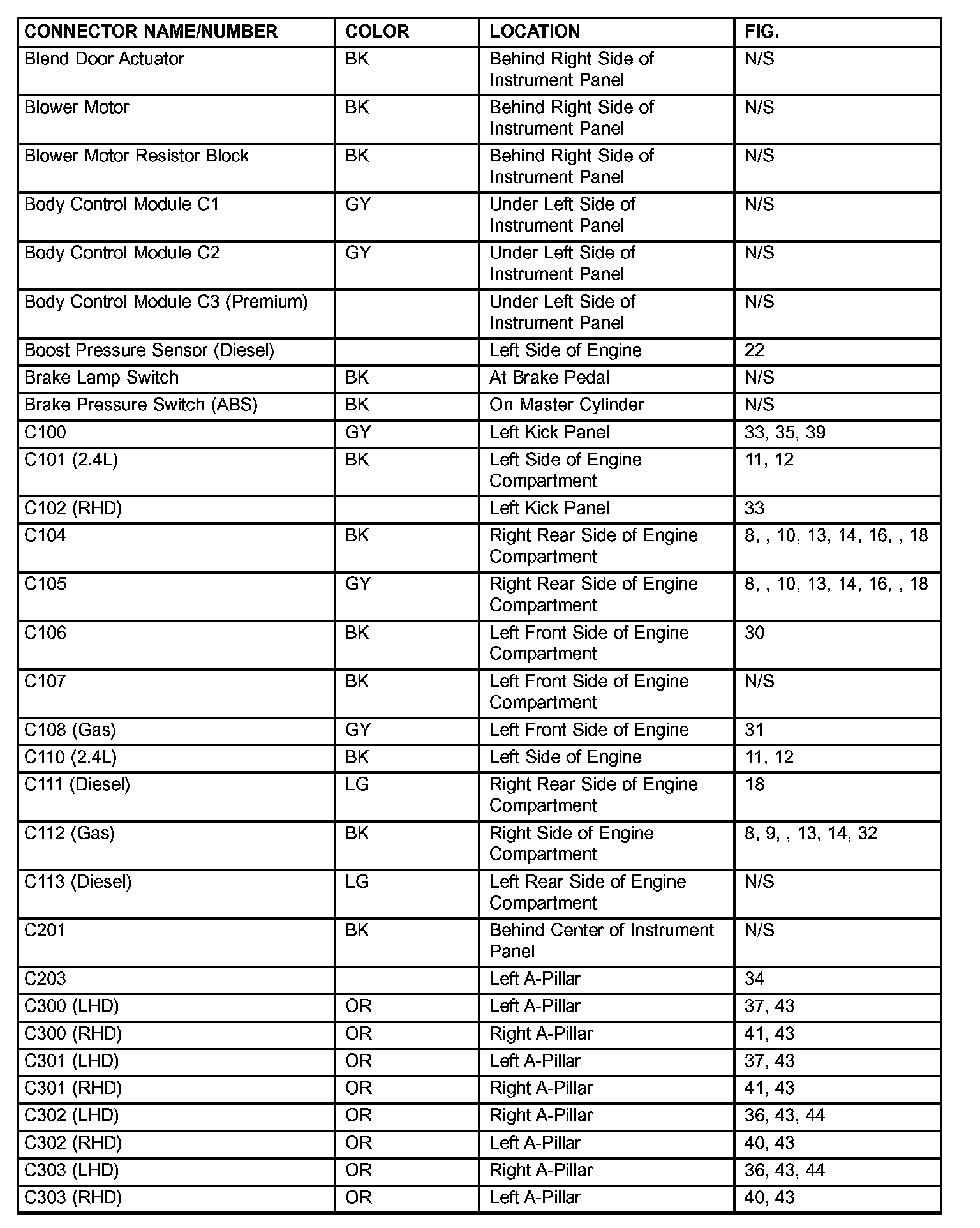

Blend Door Actuator - C303(RHD):

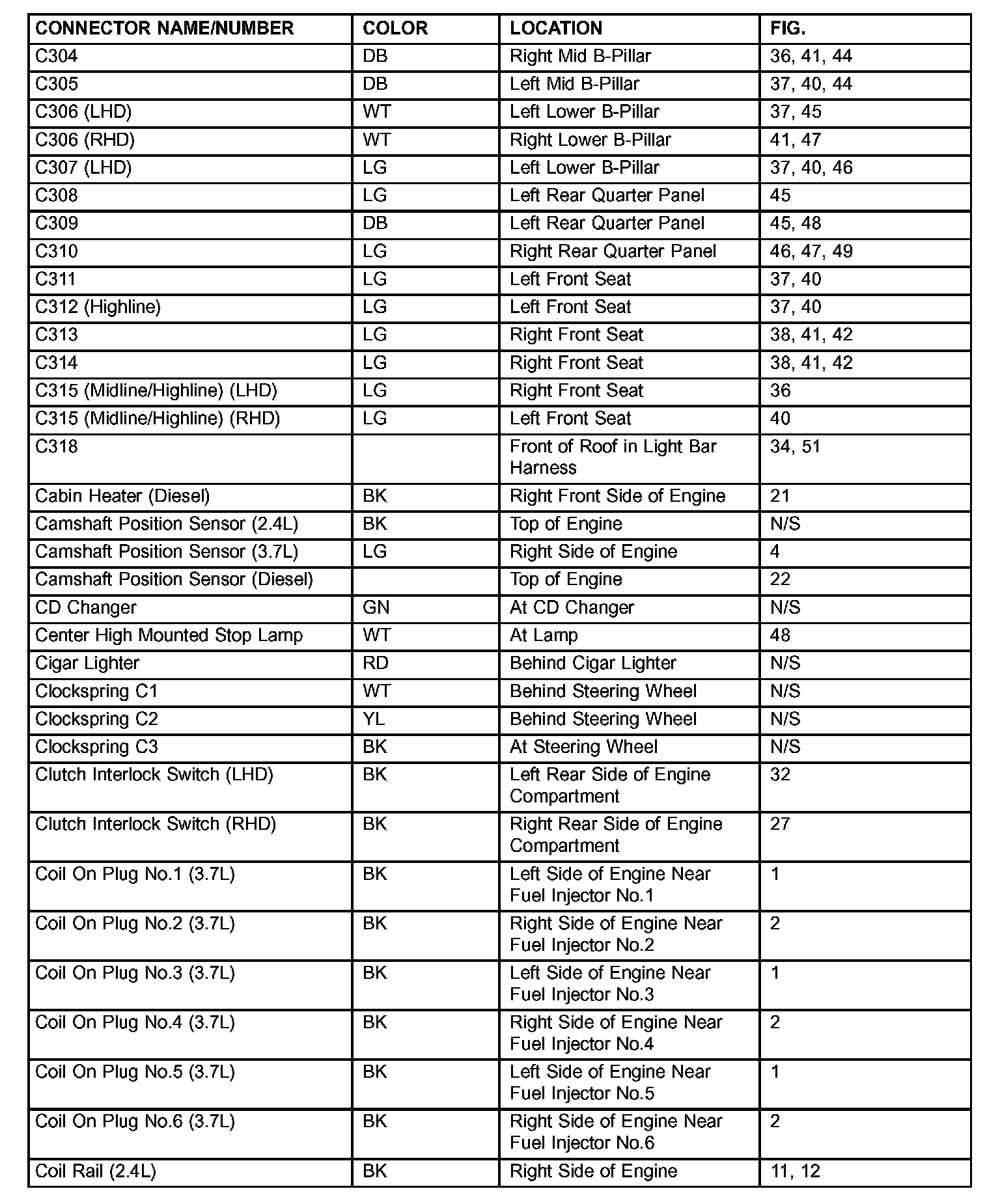

C304 - Coil Rail(2.4L):

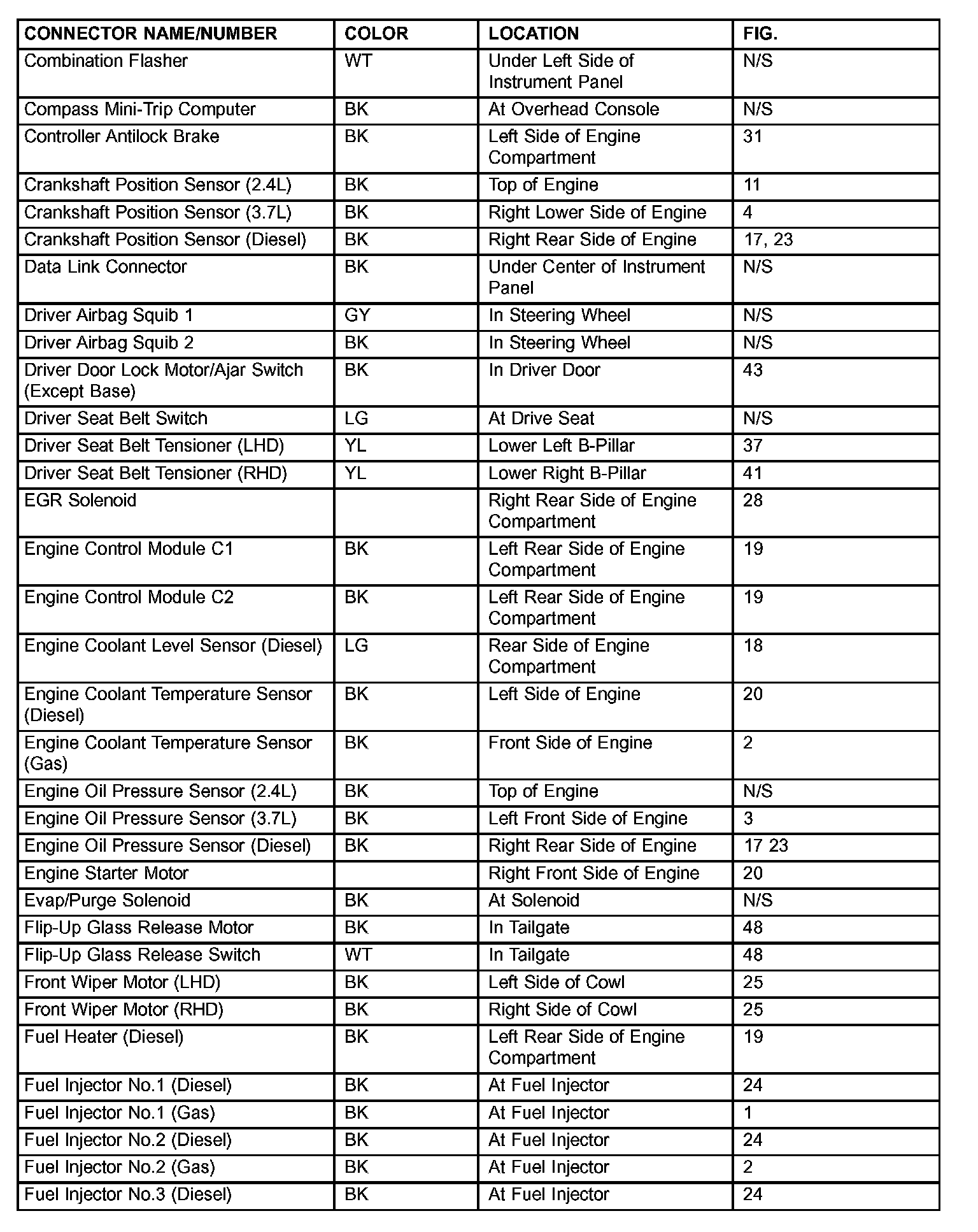

Combination Flasher - Fuel Injector No.3(Diesel):

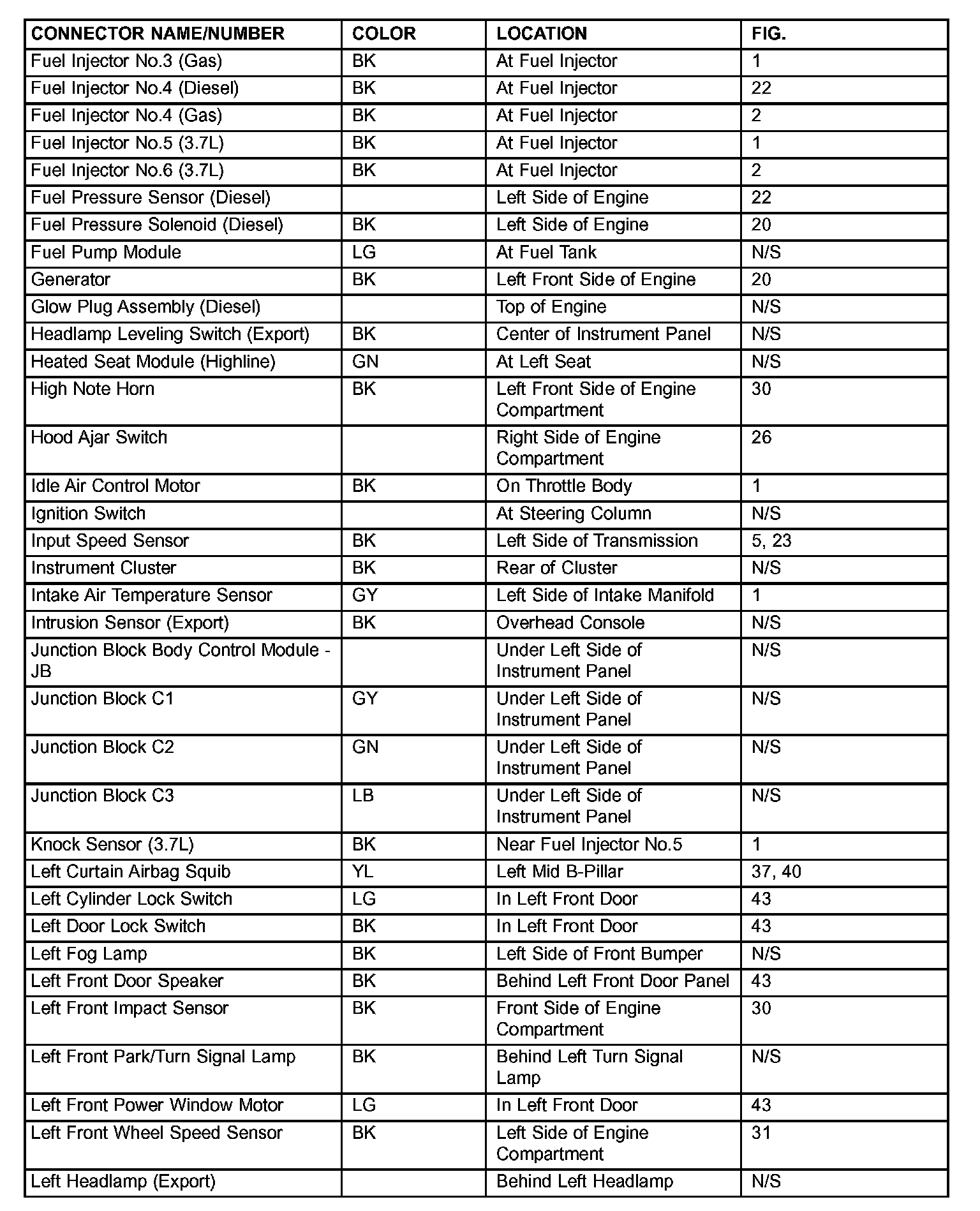

Fuel Injector No.3(Gas) - Left Headlamp(Export):

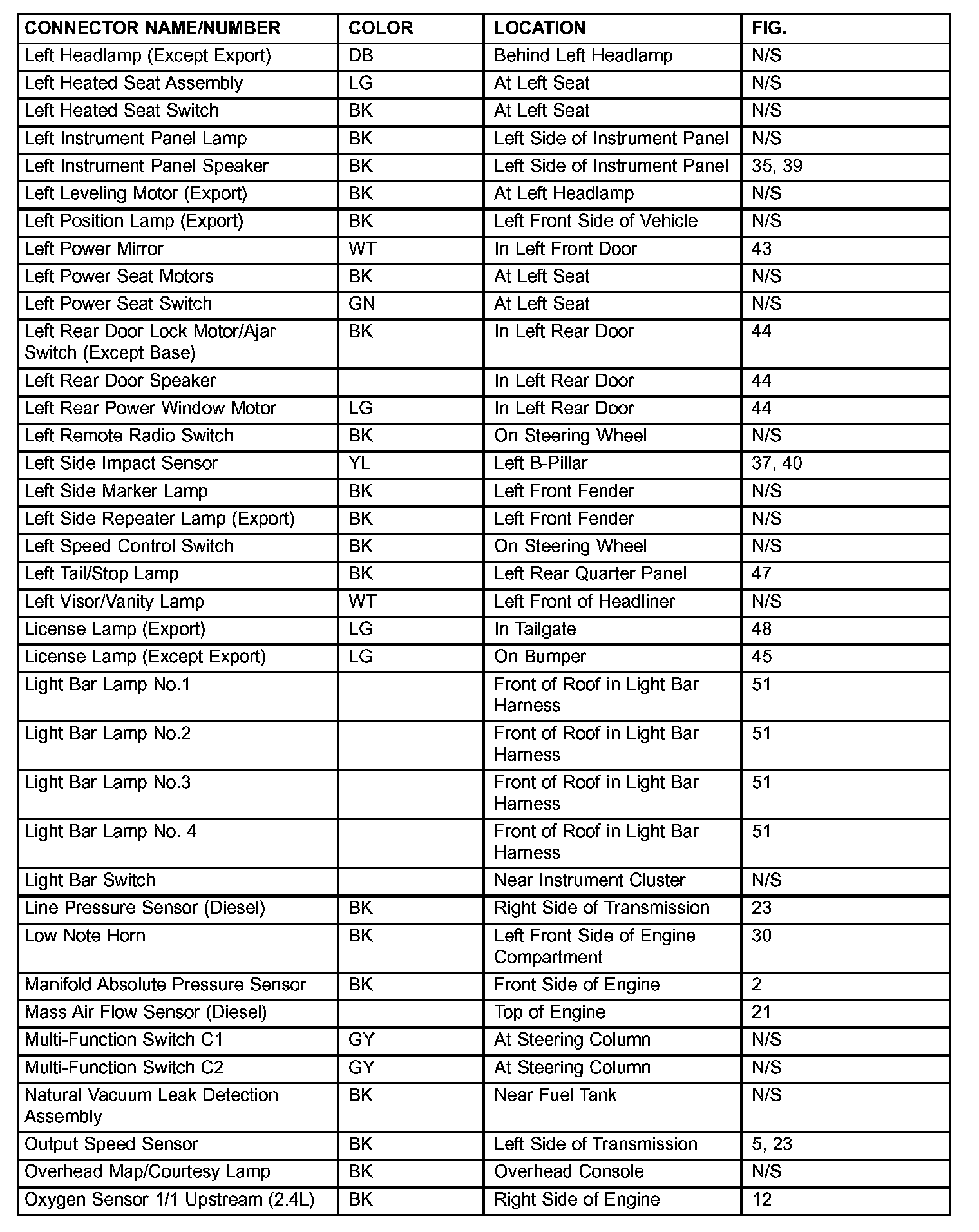

Left Headlamp(Except Export) - Oxygen Sensor 1/1 Upstream(2.4L):

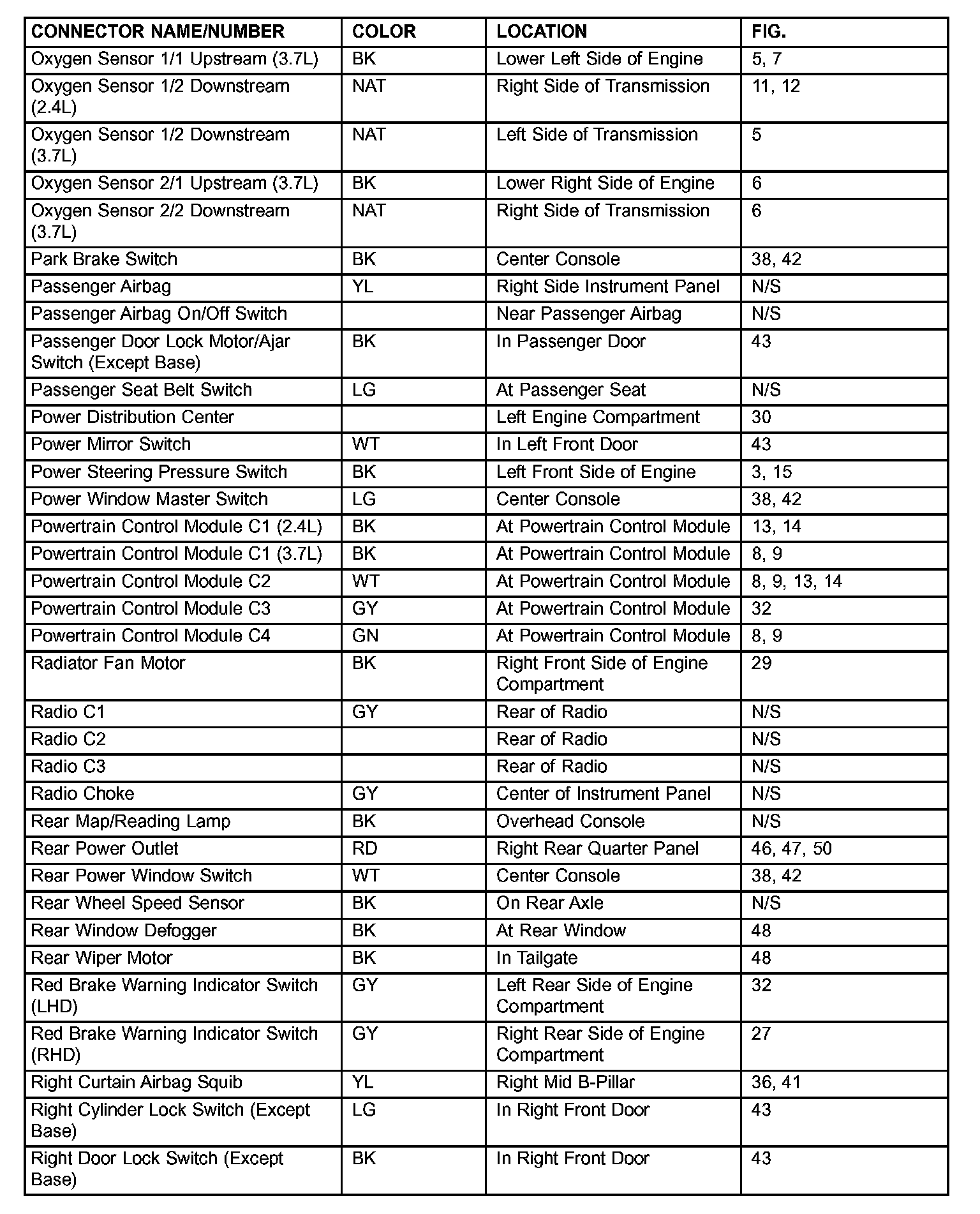

Oxygen Sensor 1/1 Upstream(3.7L) - Right Door Lock Switch(Except Base):

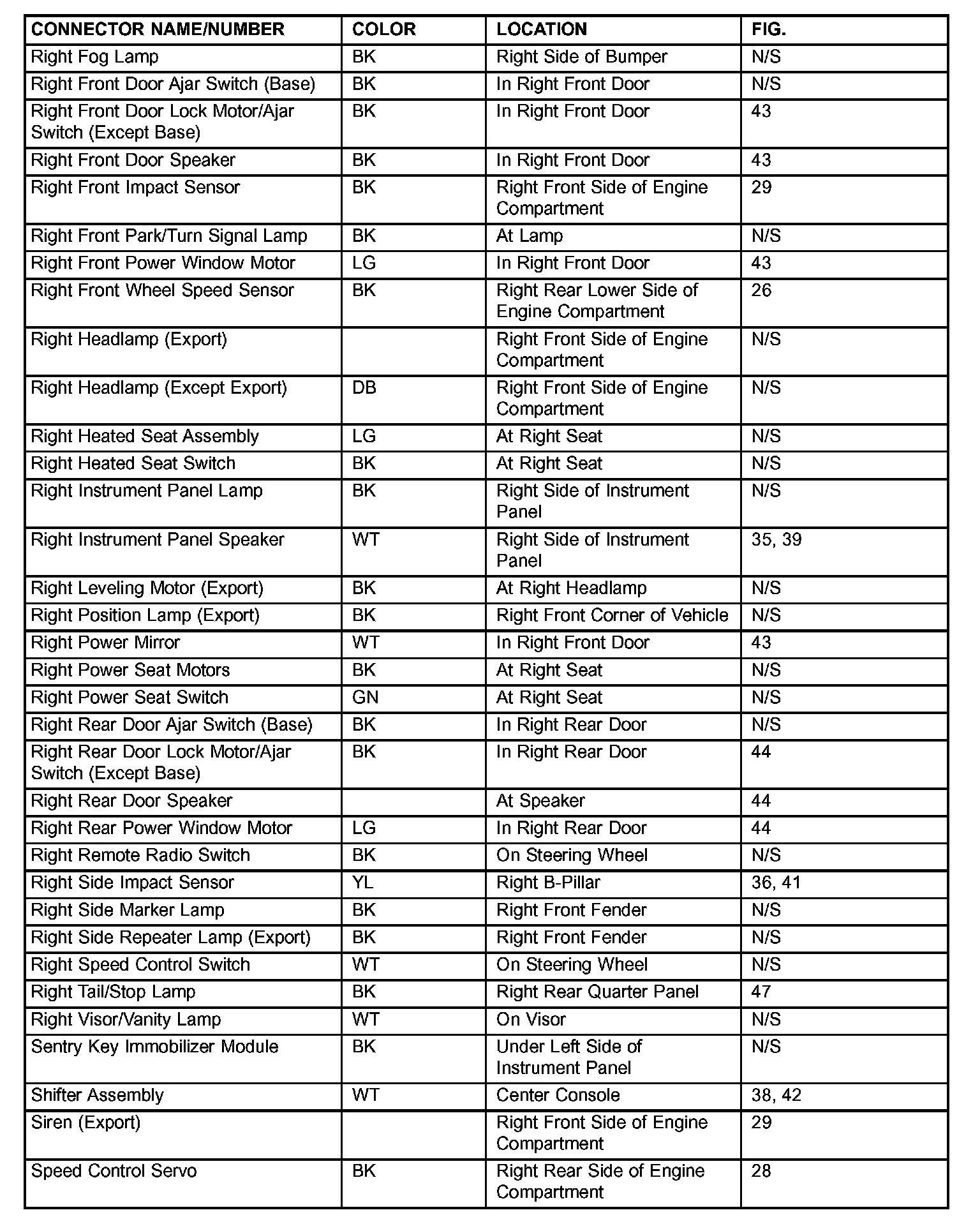

Right Fog Lamp - Speed Control Servo:

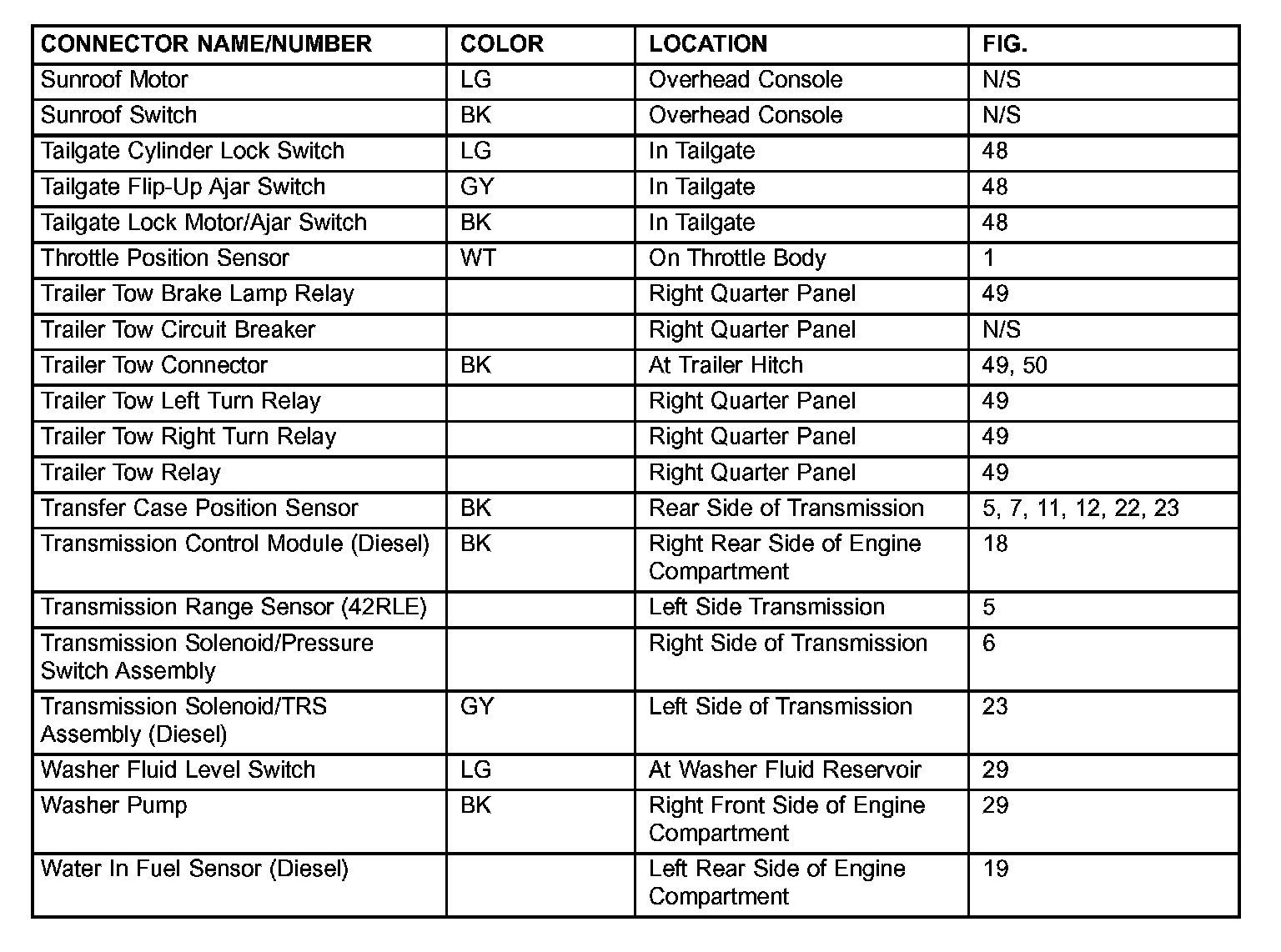

Sunroof Motor - Water In Fuel Sensor:
