Standard Procedure - Module Lamp Replacement

  1. Remove the overhead console.
  2. Using a flat blade screwdriver twist out socket/lamp.

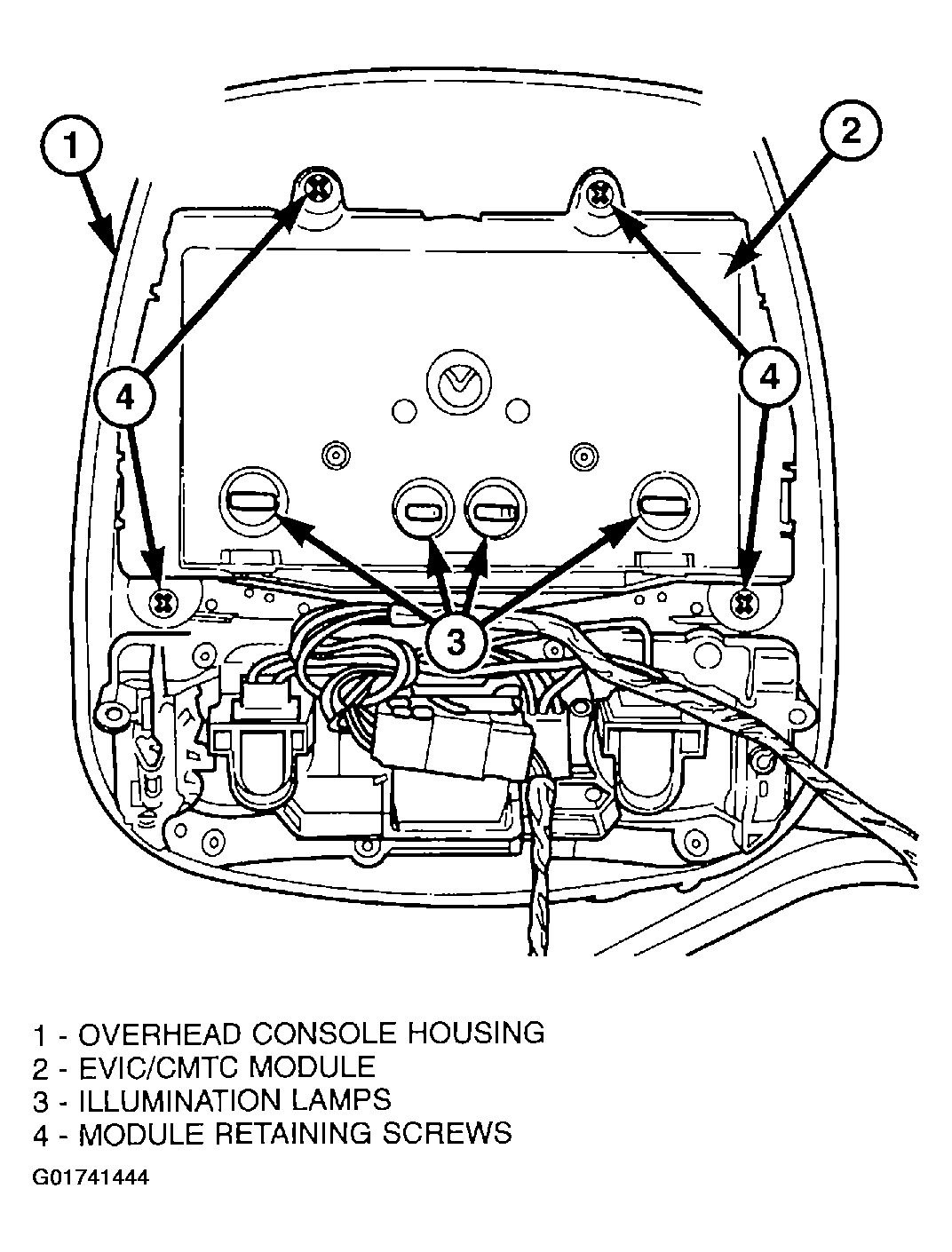

    Fig 1: Removing & Installing Electronic Vehicle Information Center
    G01741444Courtesy of DAIMLERCHRYSLER CORP.
  3. Replace lamp(s) as necessary.
