Hands Free Module
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Hands Free Module

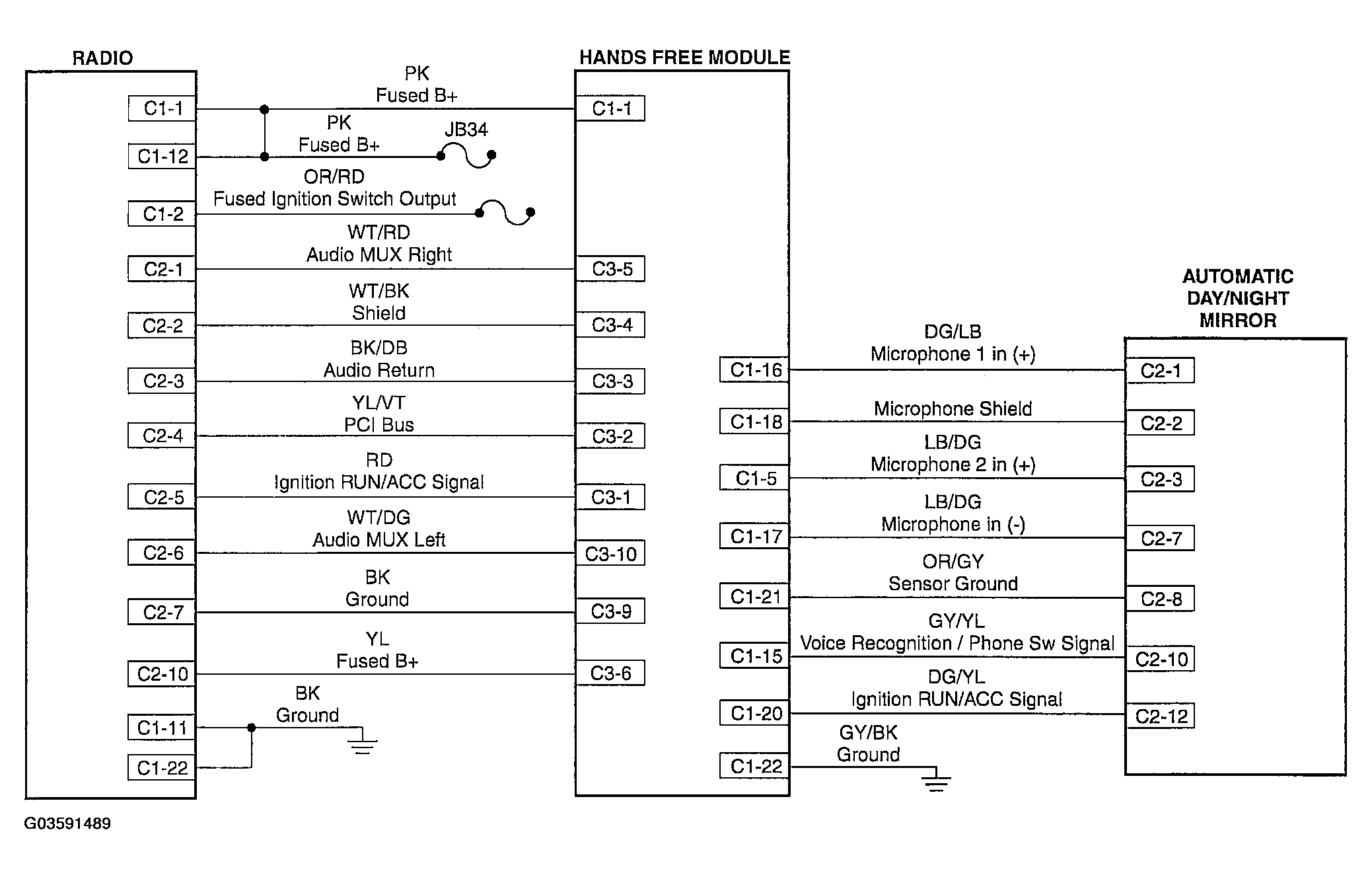

Fig 1: Hands Free Module Schematic Diagrams
Courtesy of DAIMLERCHRYSLER CORP.
