Flex Plate: Installation

  1. Position the flexplate onto the crankshaft and install the bolts hand tight.
  2. Tighten the flexplate retaining bolts to 95 N.m (70 ft. lbs.) in the sequence shown.

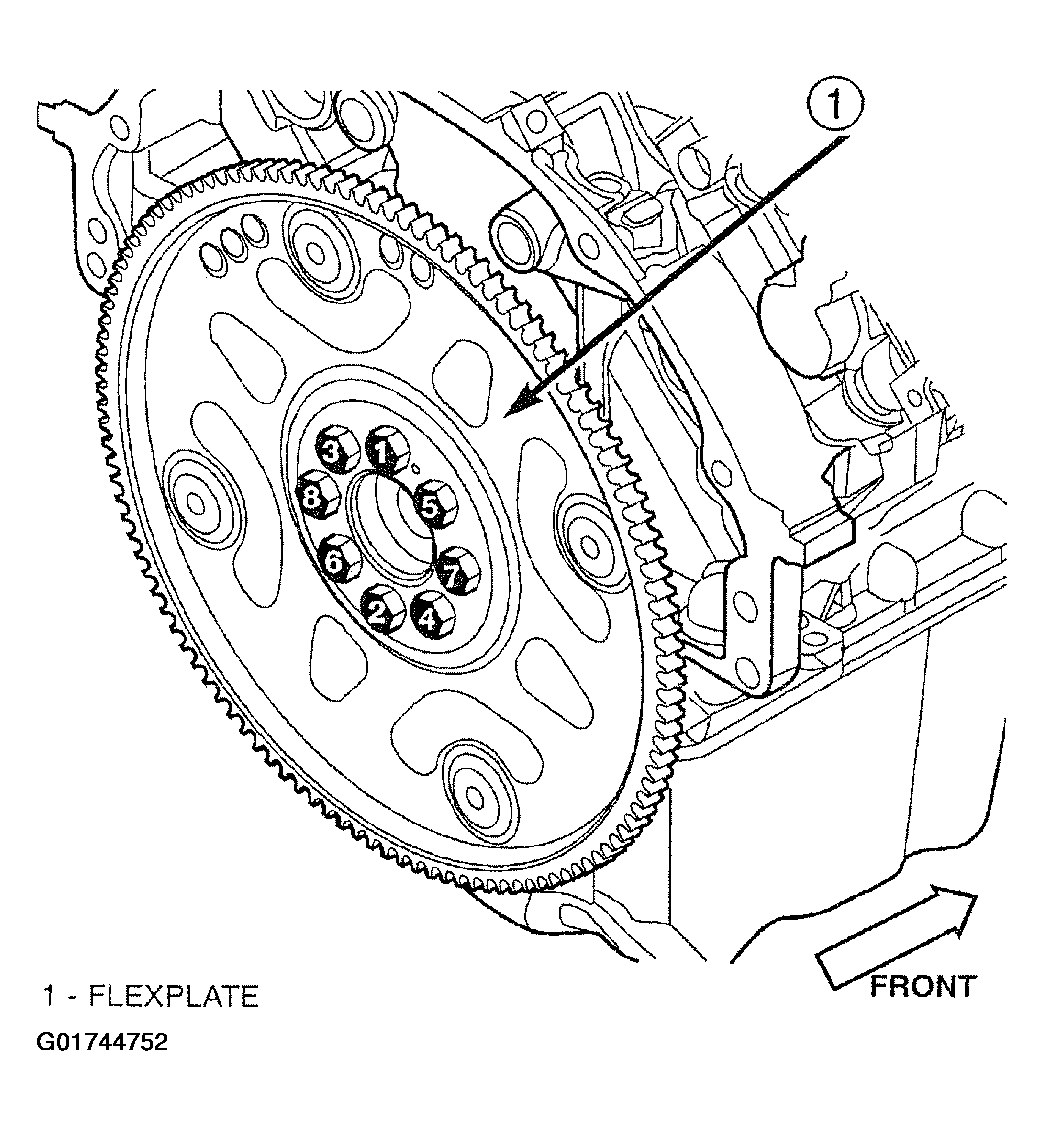

    Fig 1: Identifying Flexplate Tightening Sequence
    G01744752Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the transmission.
