Oil Pressure Sensor/Switch: Removal

  1. Disconnect the negative cable from the battery.
  2. Raise vehicle on hoist.
  3. Remove front splash shield.
  4. Disconnect oil pressure sender wire.
  5. Remove the pressure sender.

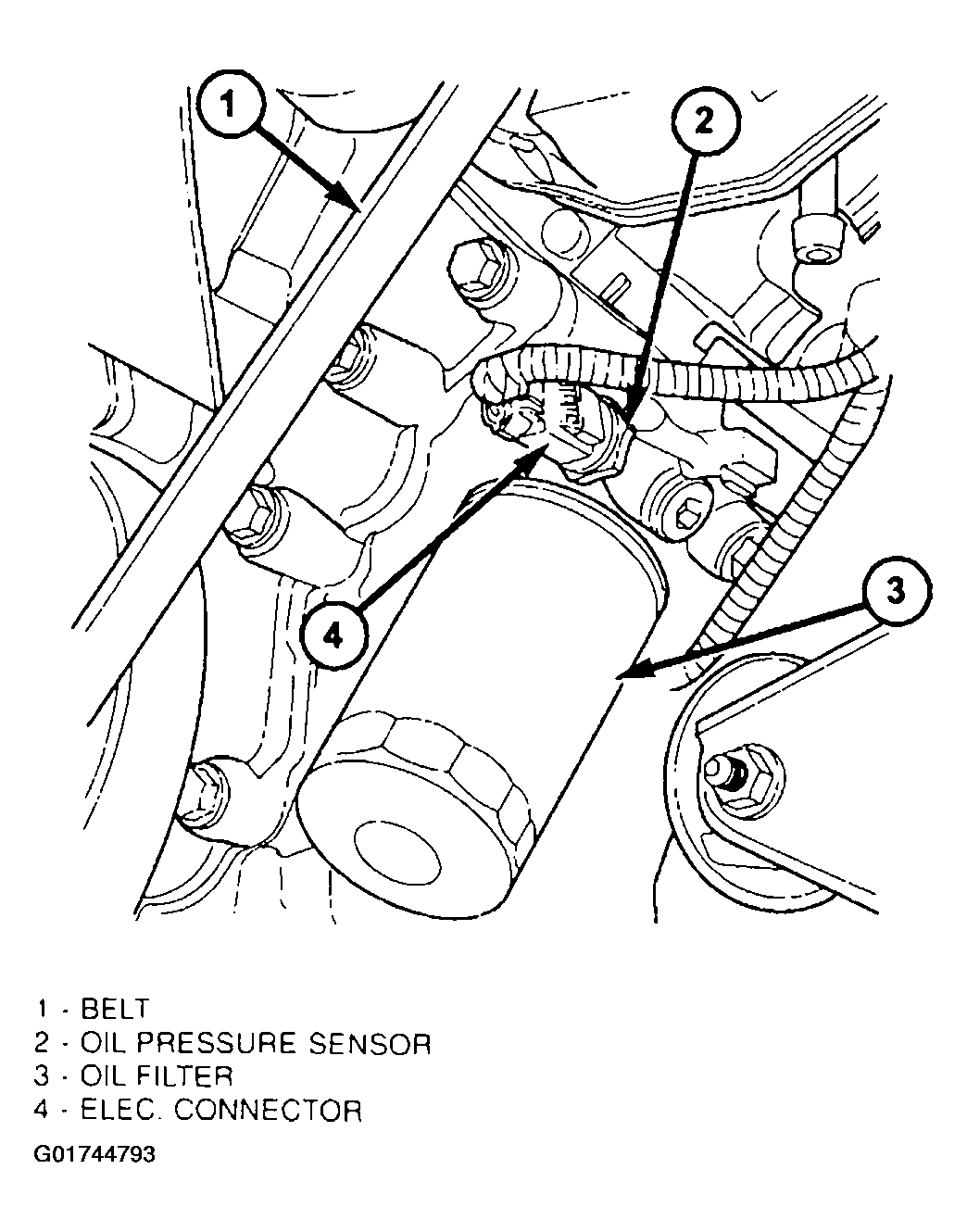

Fig 1: Identifying Oil Pressure Sending Unit
G01744793Courtesy of DAIMLERCHRYSLER CORP.
