Skis Verification Test

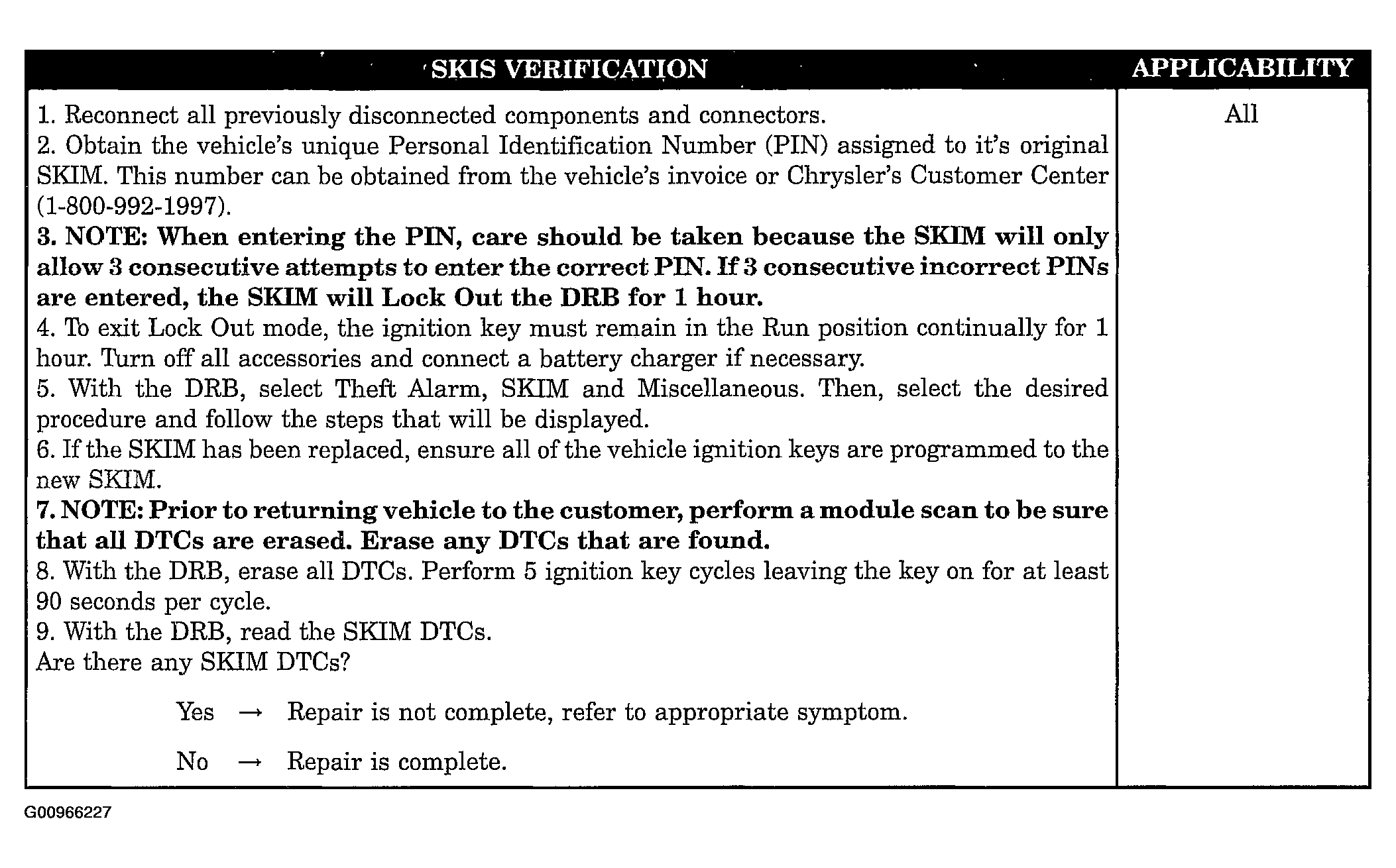

Fig 1: SKIS Verification Test
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
