Controller Antilock Brake: Removal

WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Remove negative battery cable from the battery.
Remove air cleaner housing, (Refer to AIR CLEANER HOUSING ) OR (Refer to AIR CLEANER HOUSING ).
Release CAB harness connector and remove connector (Fig 1 ).

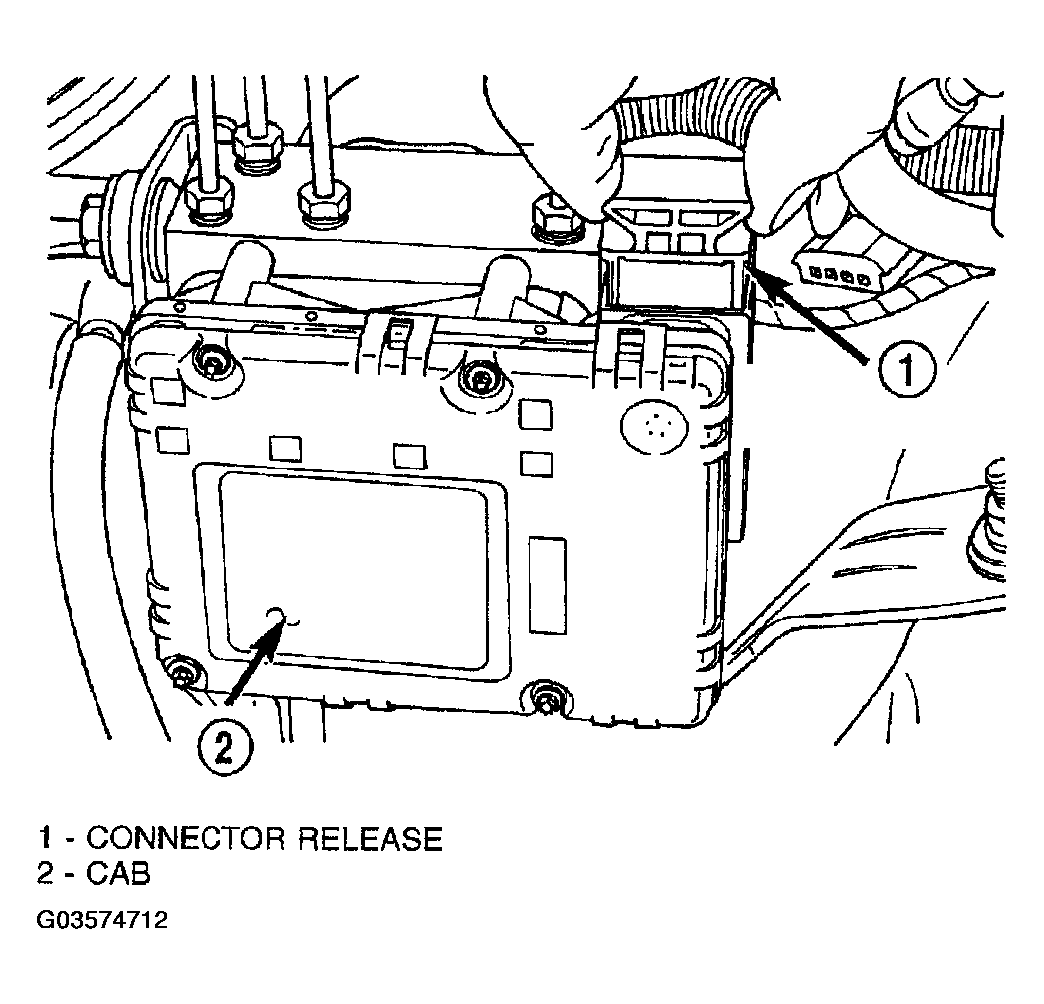

Fig 1: Locating CAB Connector Release
Courtesy of DAIMLERCHRYSLER CORP.
Remove pump motor connector.
Remove CAB mounting bolts (Fig 2 ) and remove the CAB from the HCU.

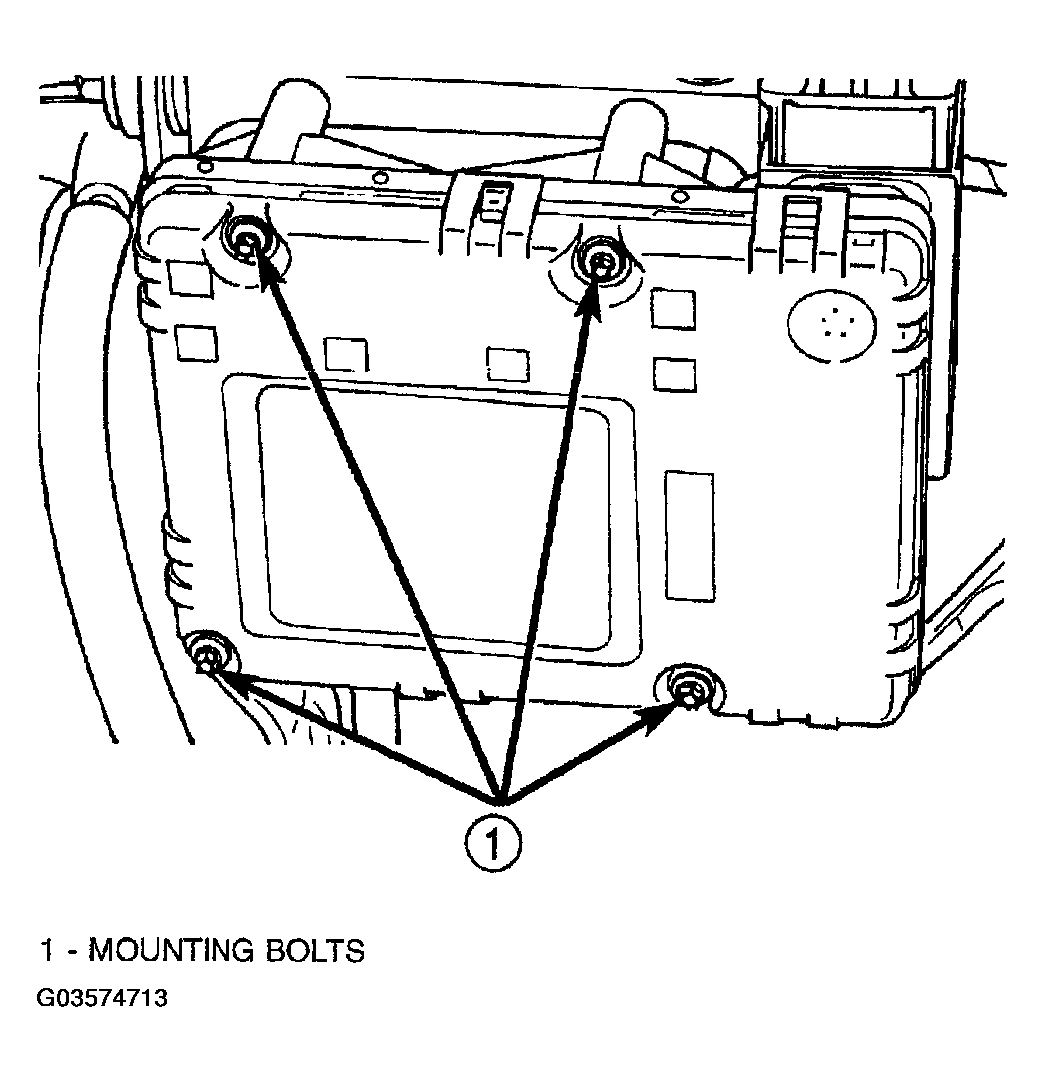

Fig 2: Removing CAB Mounting Bolts
Courtesy of DAIMLERCHRYSLER CORP.
