Door Module: Removal

WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.
Remove the trim panel from the front door. (Refer to TRIM PANEL ).
Remove the door module from the back of the front door trim panel (Fig 1 ).

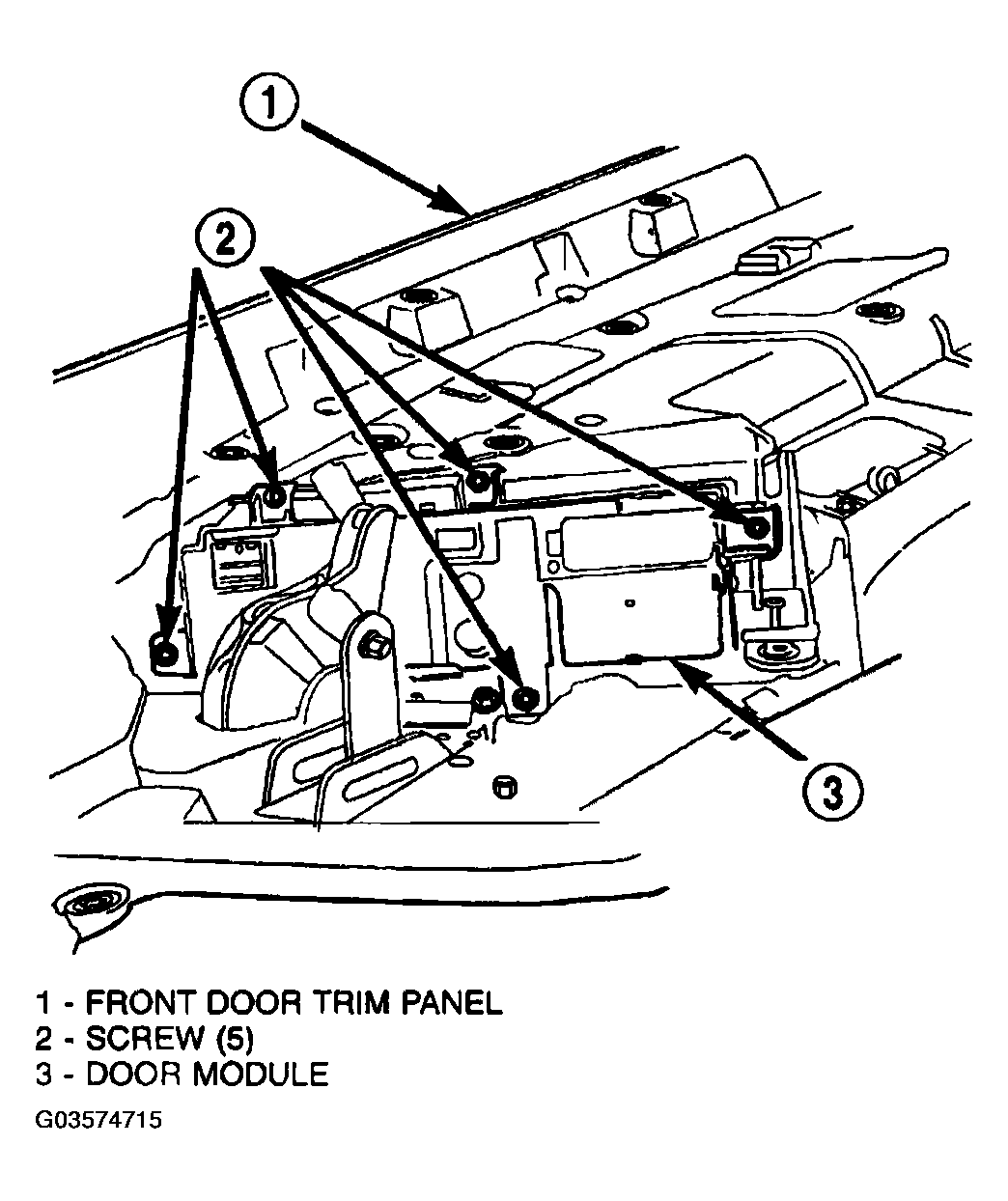

Fig 1: Door Module Remove/Install
Courtesy of DAIMLERCHRYSLER CORP.
Remove the door module from the front door trim panel.
