Section 136 (Cruise Control Systems): Servo: Installation

WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position servo to mounting bracket.
  2. Align hole in cable connector with hole in servo pin. Install cable-to-servo retaining clip.
  3. Insert servo mounting studs through holes in servo mounting bracket.

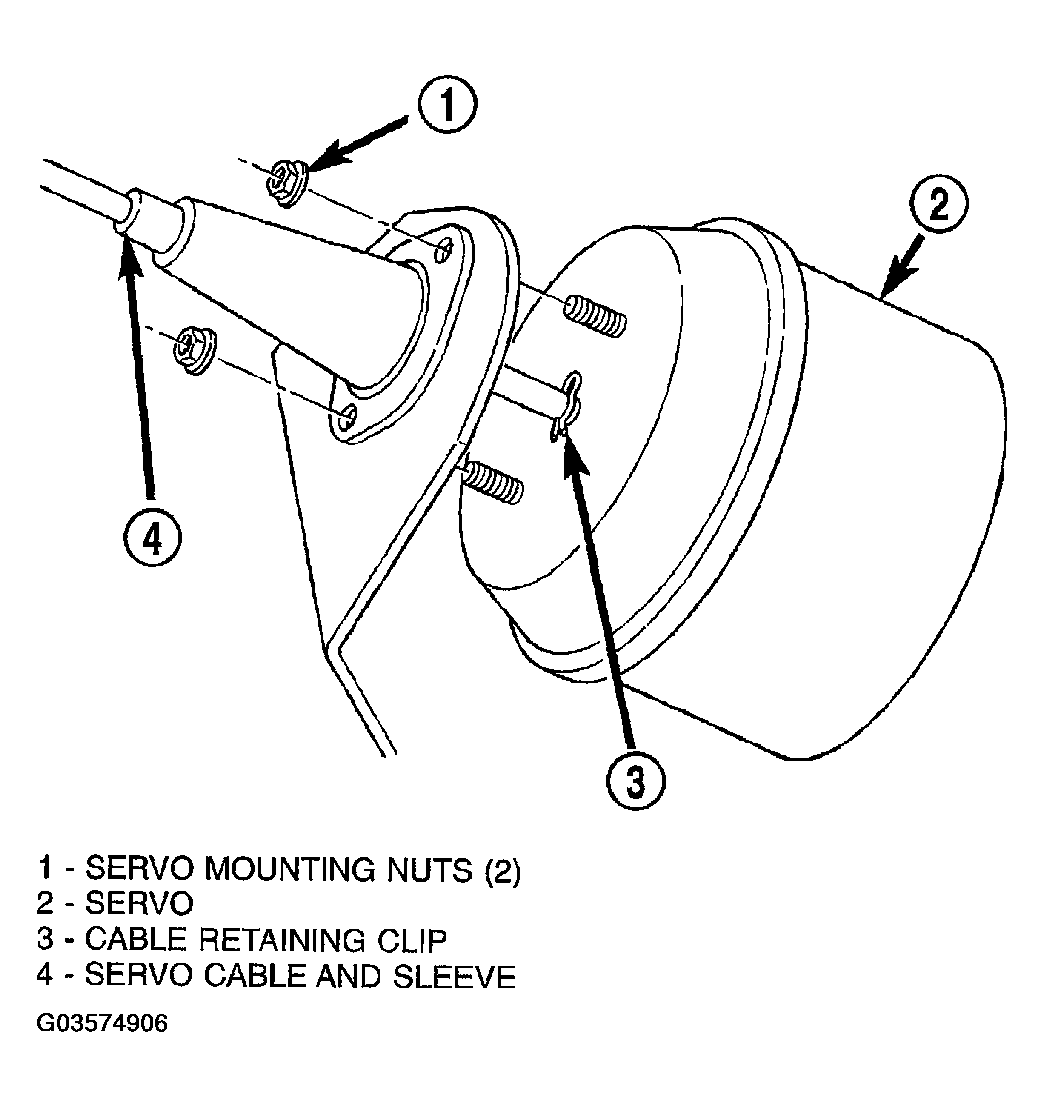

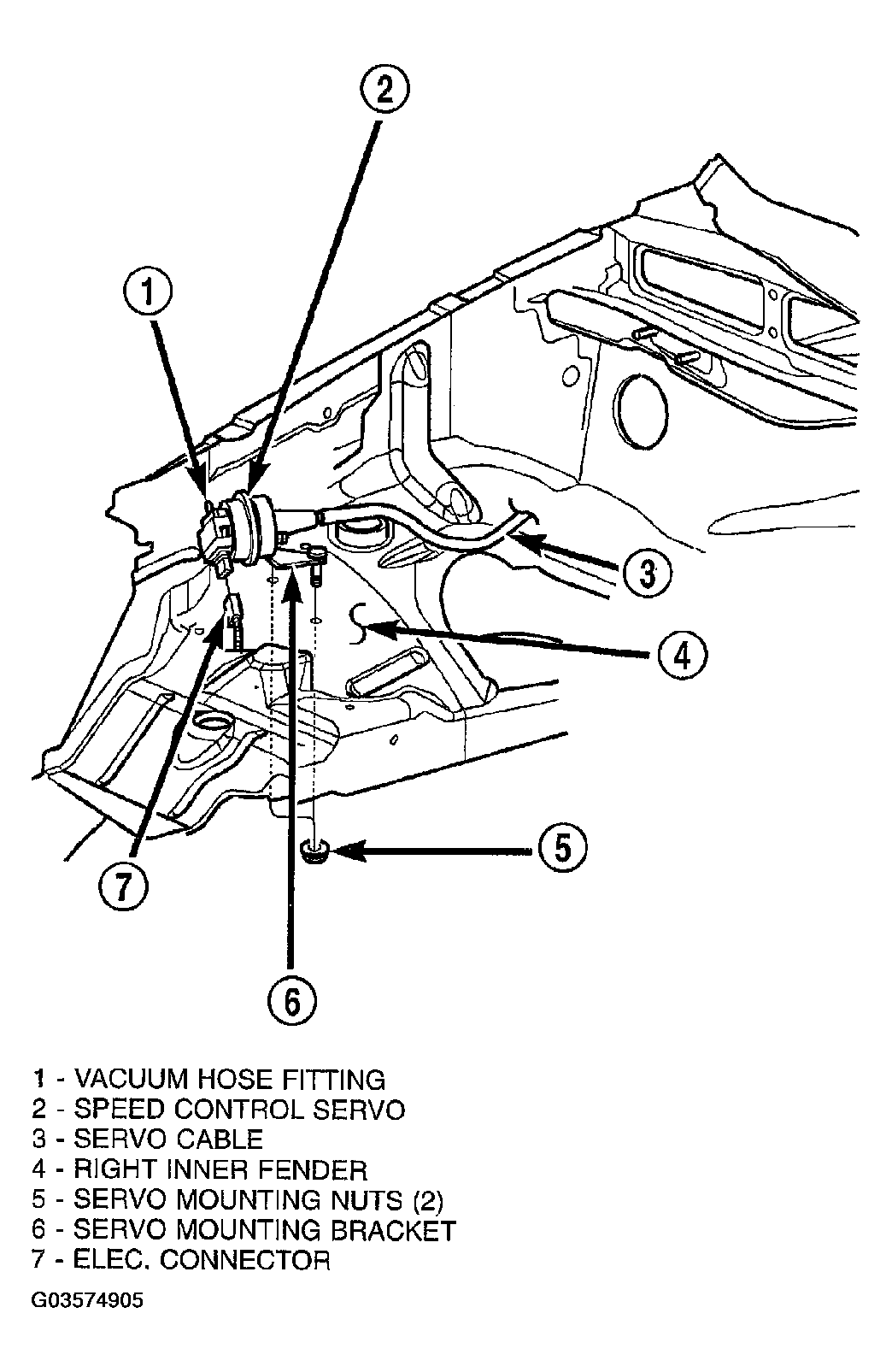

  4. Install servo cable mounting nuts (Figure) and tighten to 8.5 N.m (75 in. lbs.) torque. If servo and bracket is being installed as one assembly, install 2 mounting nuts (Figure) and tighten to 28 N.m +/-6 N.m (250 in. lbs. +/-50 in. lbs.) torque.
  5. Connect vacuum line at servo.
  6. Connect electrical connector at servo.
  7. Connect servo cable to throttle body. Refer to Servo Cable Removal/Installation.
  8. Install battery tray and battery temperature sensor.
  9. Connect wiring to battery tray.
  10. Install battery to battery tray.
  11. Connect positive battery cable to Power Distribution Center (PDC).
  12. Connect positive battery cable to battery.
  13. Connect negative battery cable to battery.
  14. Before starting engine, operate accelerator pedal to check for any binding.
