Controller Anti-Lock Brake: Installation

WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the CAB is being replaced with a new CAB, it must be reprogrammed with the use of a DRB III.

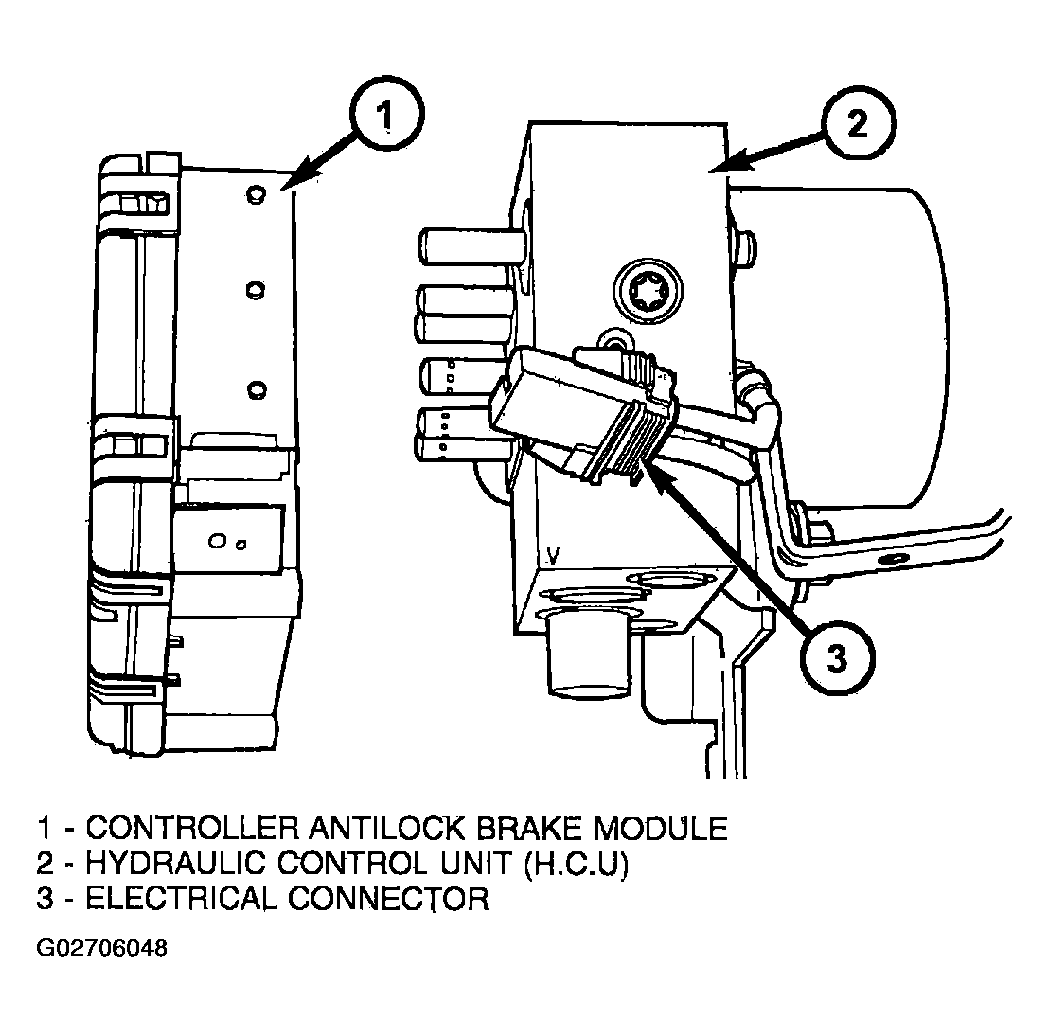

Install CAB to the HCU (Figure ).
Install mounting bolts. Tighten to 2 N.m (16 in. lbs.).
Install the pump electrical connector to the CAB (Figure ).
Install the wiring harness connector to the CAB and push down on the release to secure the connector.
Install negative battery cable to the battery.
