Compass Mini/Trip Computer: Removal
WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove overhead console, refer to REMOVAL
.

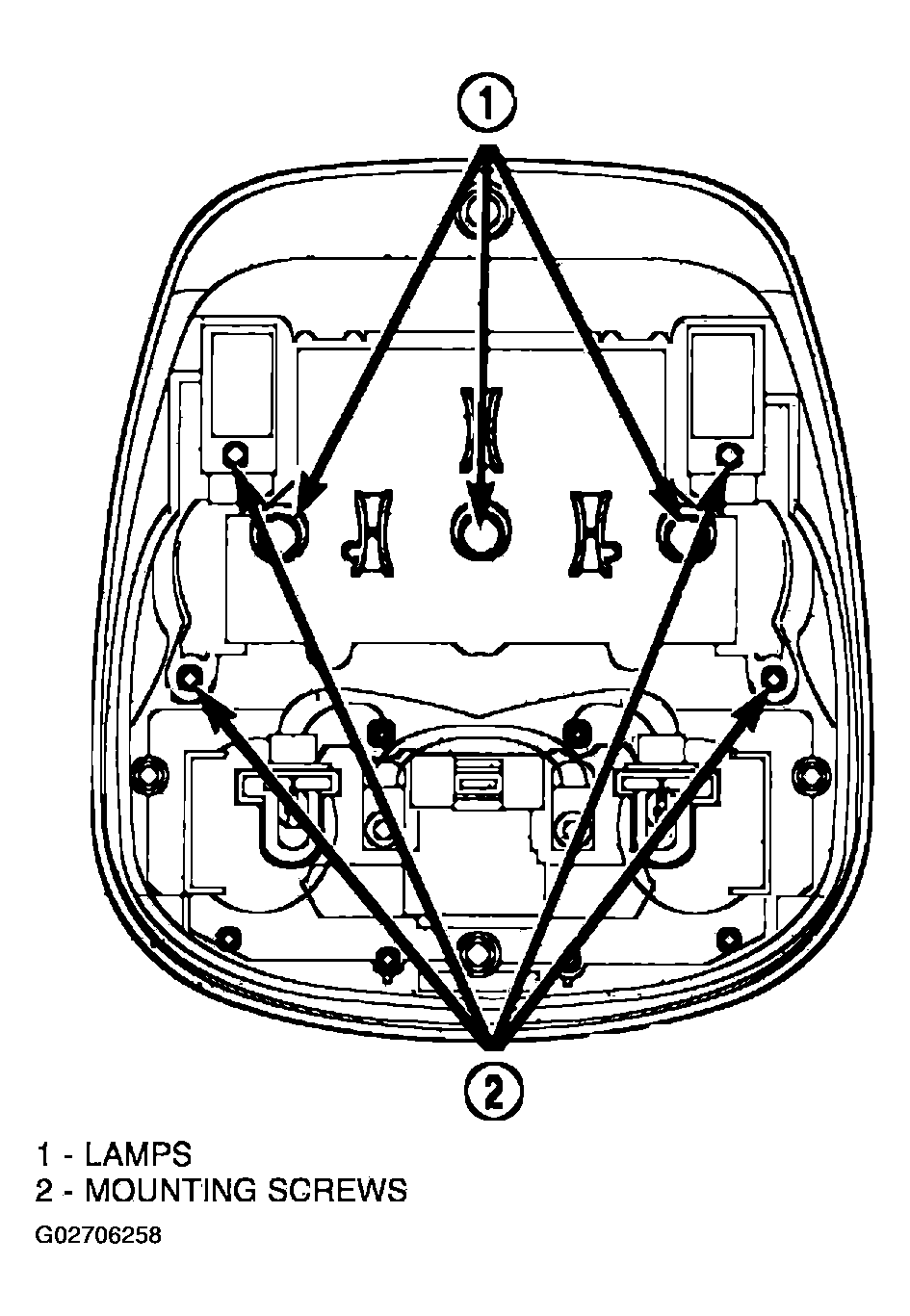

- Remove mounting screws and release the map lamp wire connector from the compass mini-trip computer. (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the compass mini-trip computer from the overhead console.
