Powertrain Control Module C4 (3.7L A/T) - 38 Way Connector End View

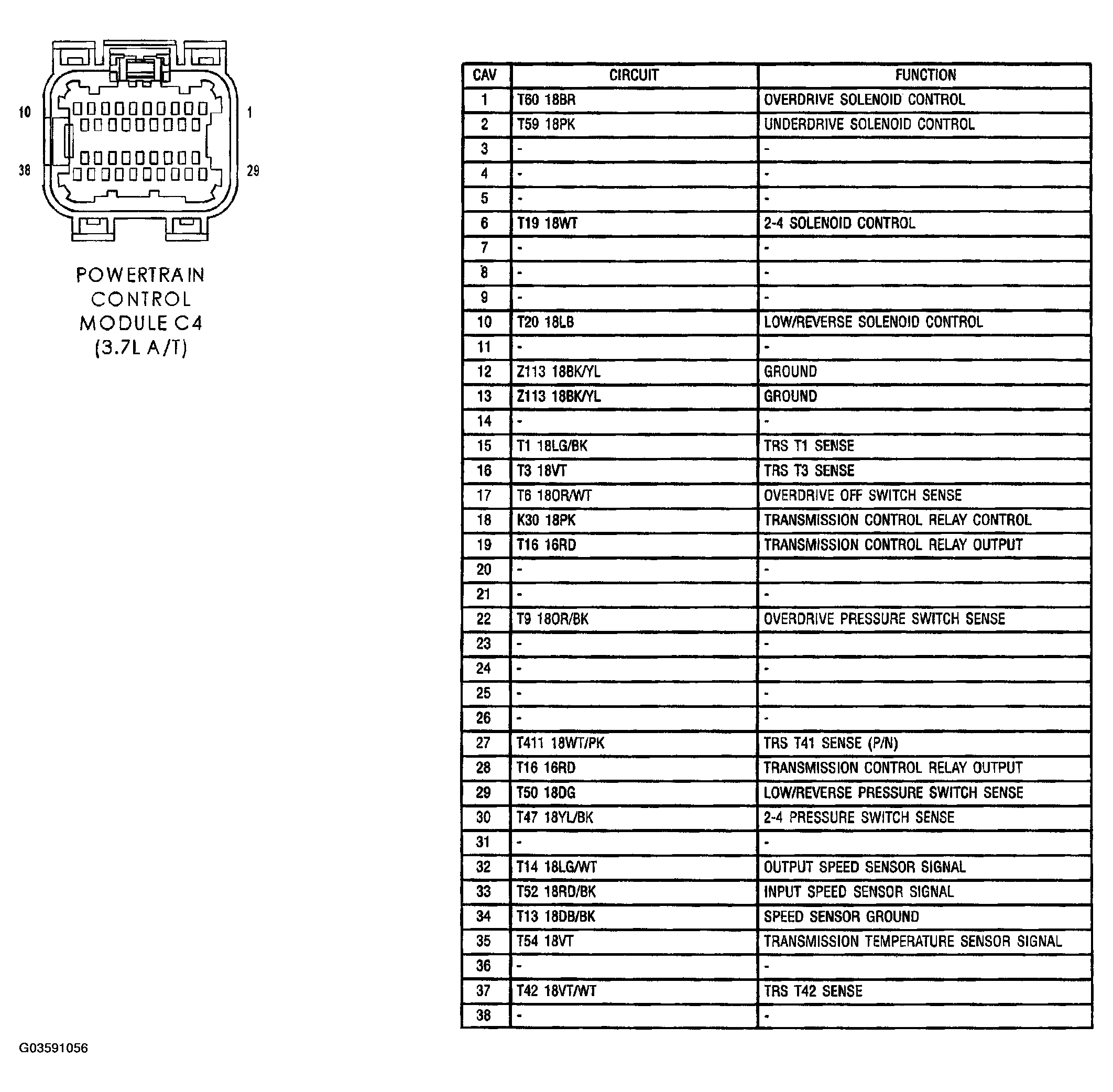

Fig 1: Powertrain Control Module (3.7L A/T) Connector End View (C4)
G03591056Courtesy of DAIMLERCHRYSLER CORP.
