Body Control Module C2 - Gray 22 Way Connector End View

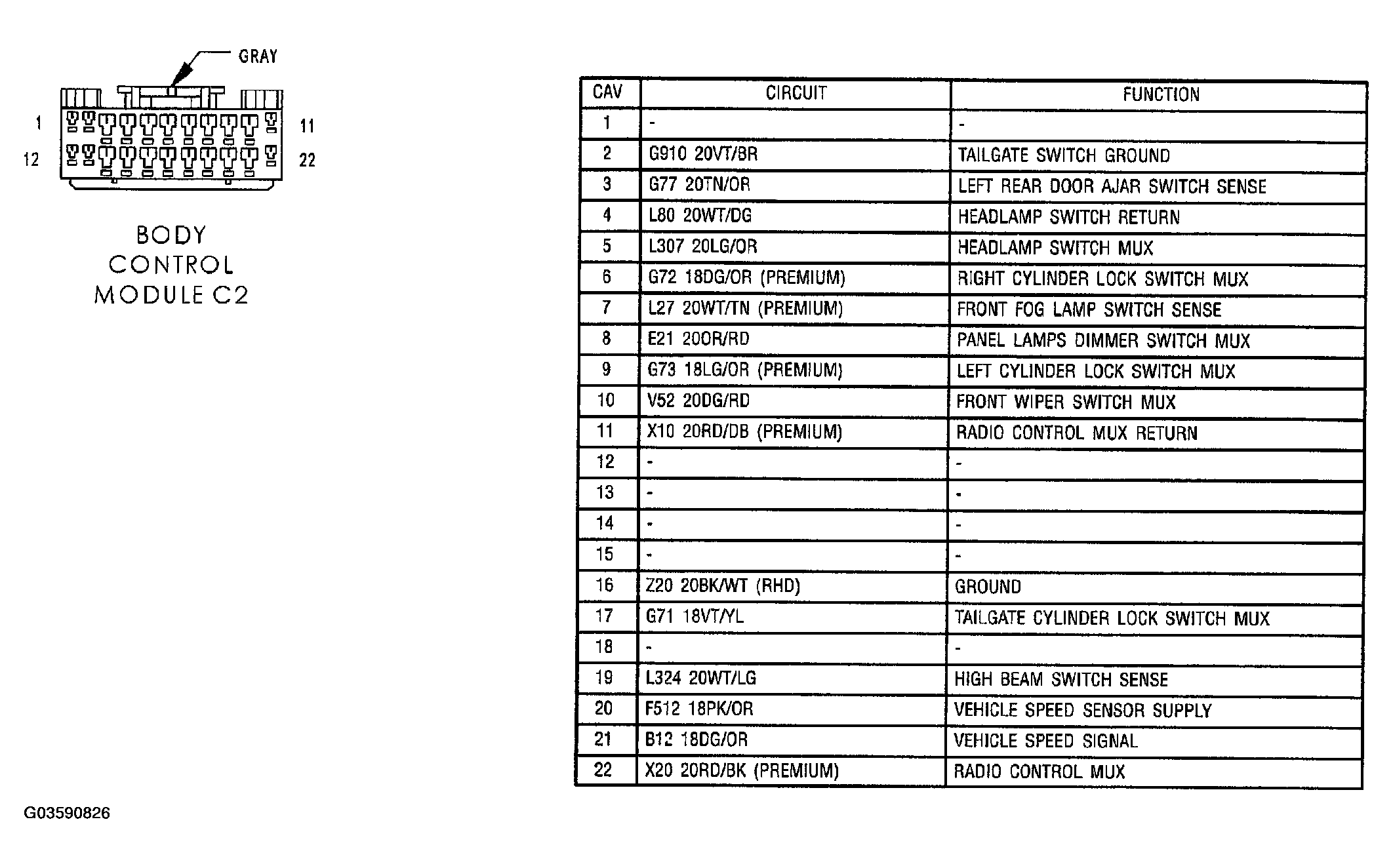

Fig 1: Body Control Module Connector End View (C2)
G03590826Courtesy of DAIMLERCHRYSLER CORP.
