Locations
>>
Connector Locations
>>
Figure 17
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Figure 17

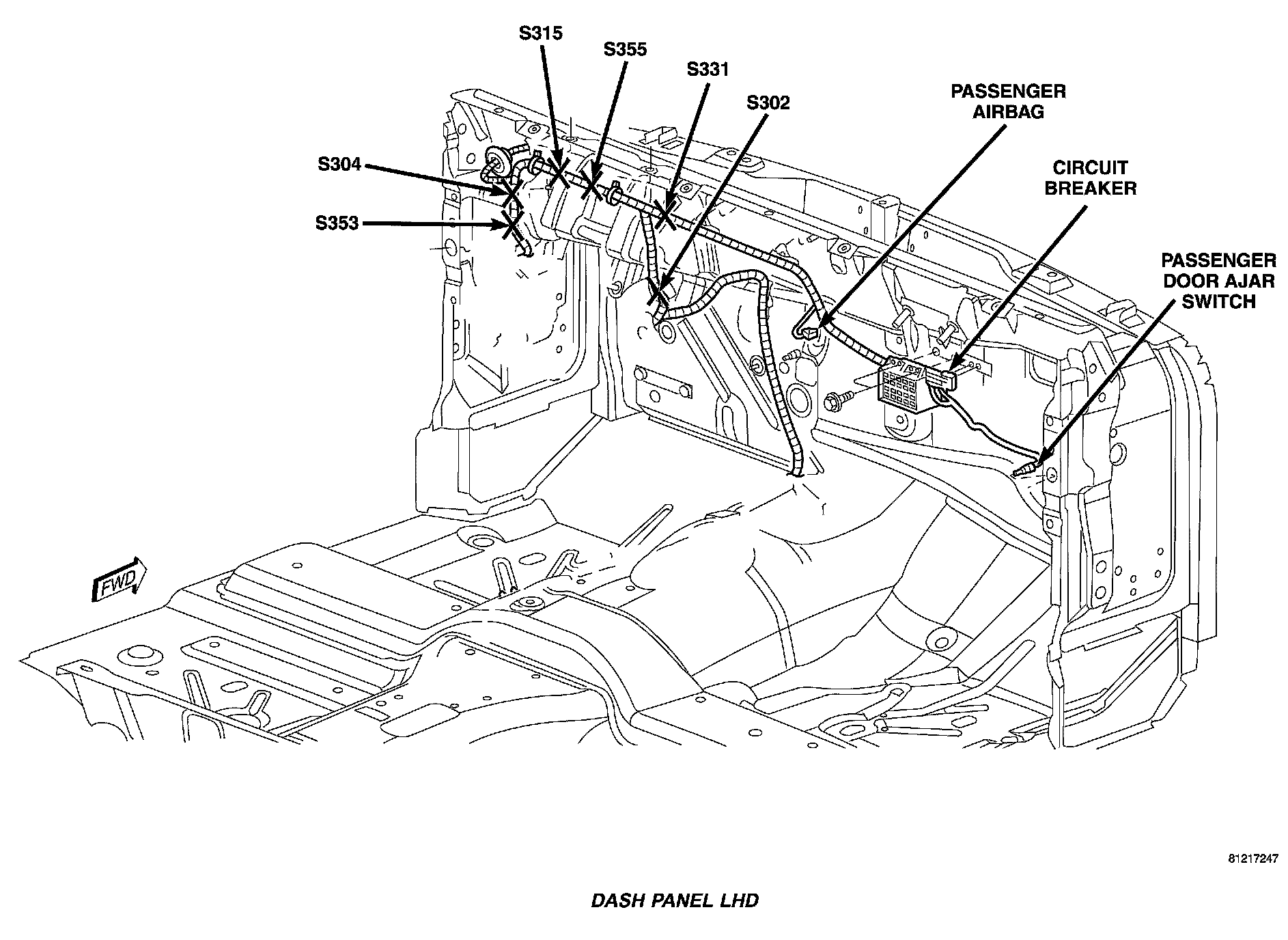

Dash Panel LHD:

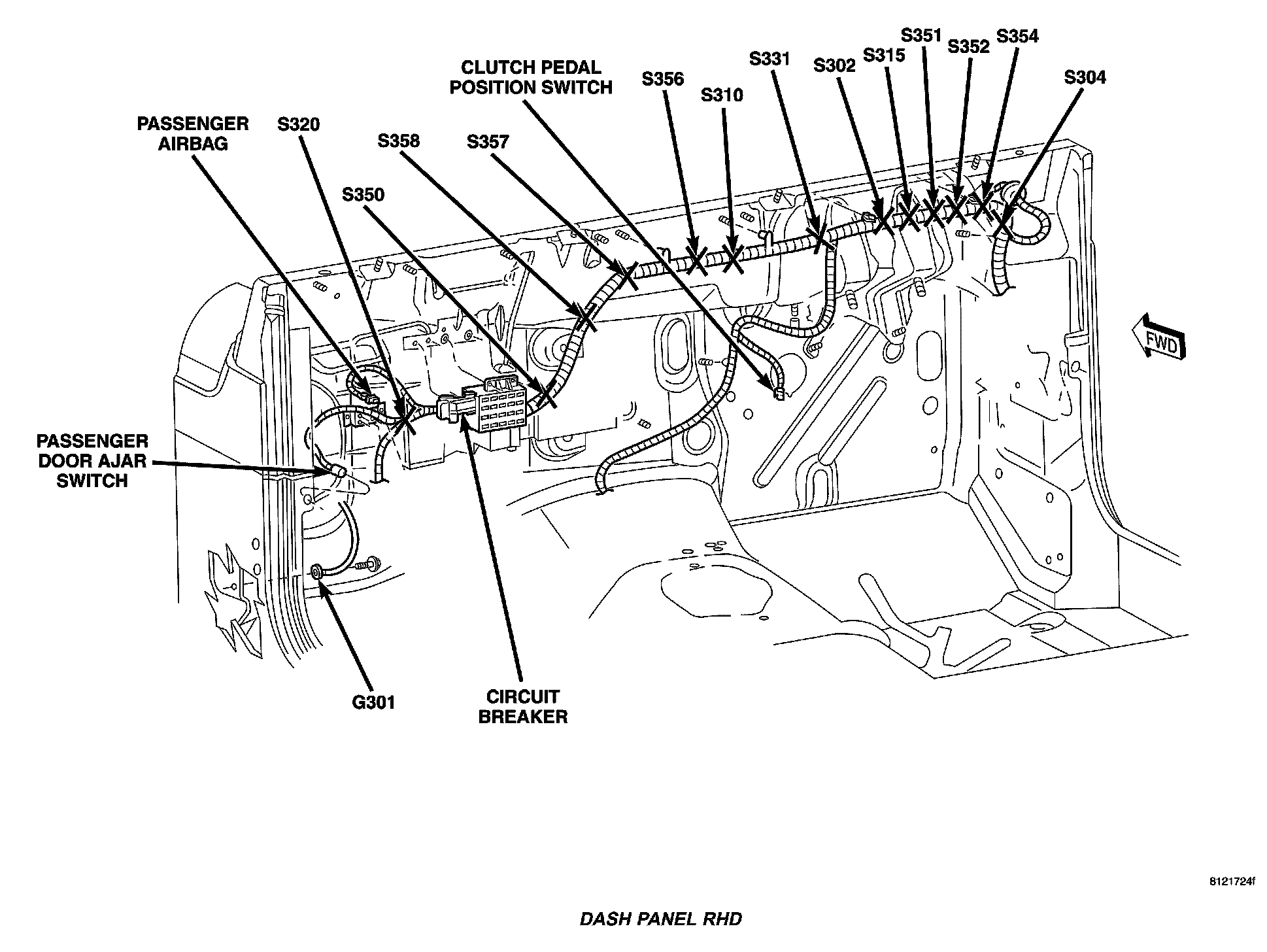

Dash Panel RHD:

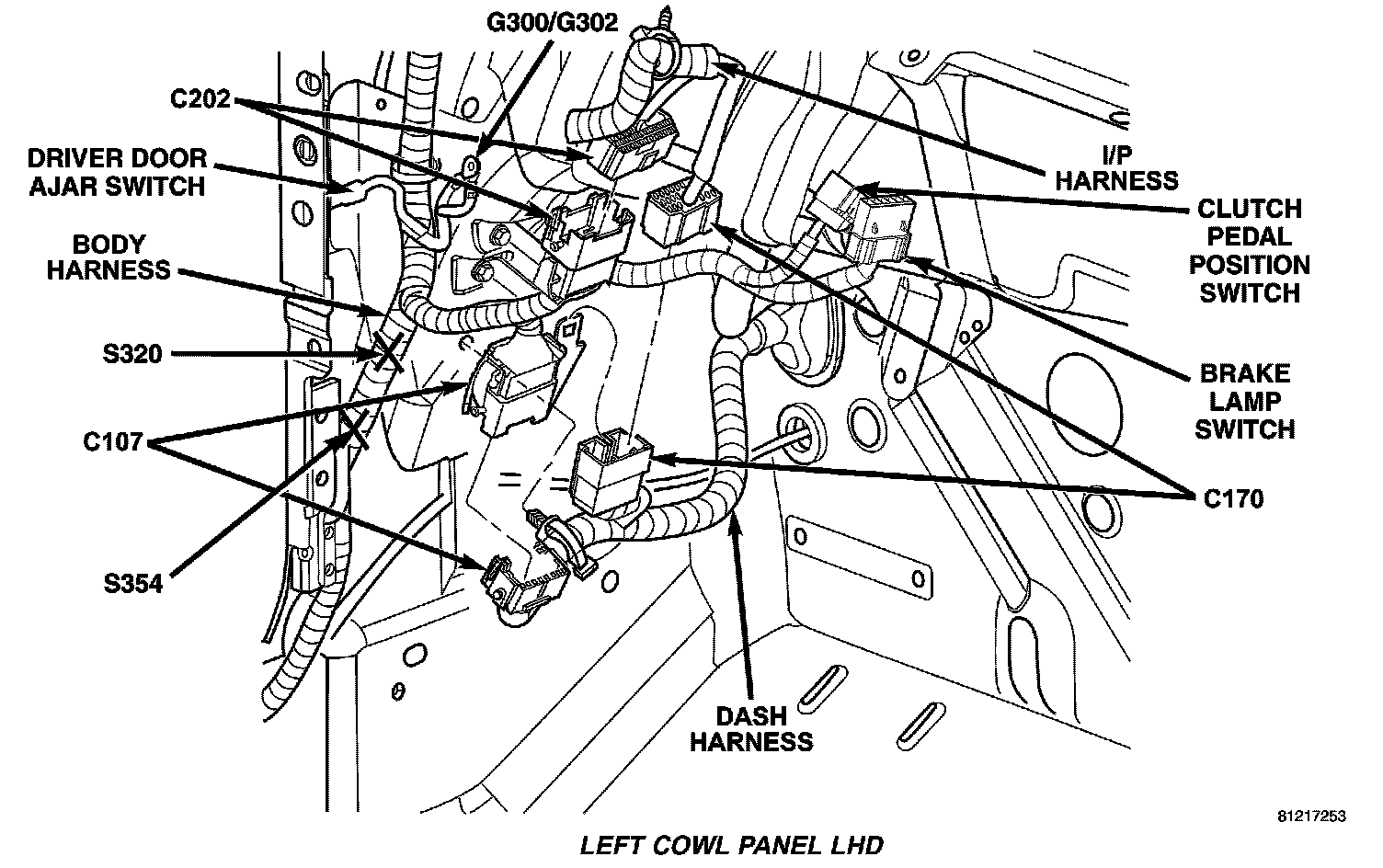

Left Cowl Panel LHD:
Right Cowl Panel RHD:
