Electrode Gap Bridging

Electrode gap bridging may be traced to loose deposits in the combustion chamber. These deposits accumulate on the spark plugs during continuous stop-and-go driving. When the engine is suddenly subjected to a high torque load, deposits partially liquefy and bridge the gap between electrodes. This short circuits the electrodes. Spark plugs with electrode gap bridging can be cleaned using standard procedures.

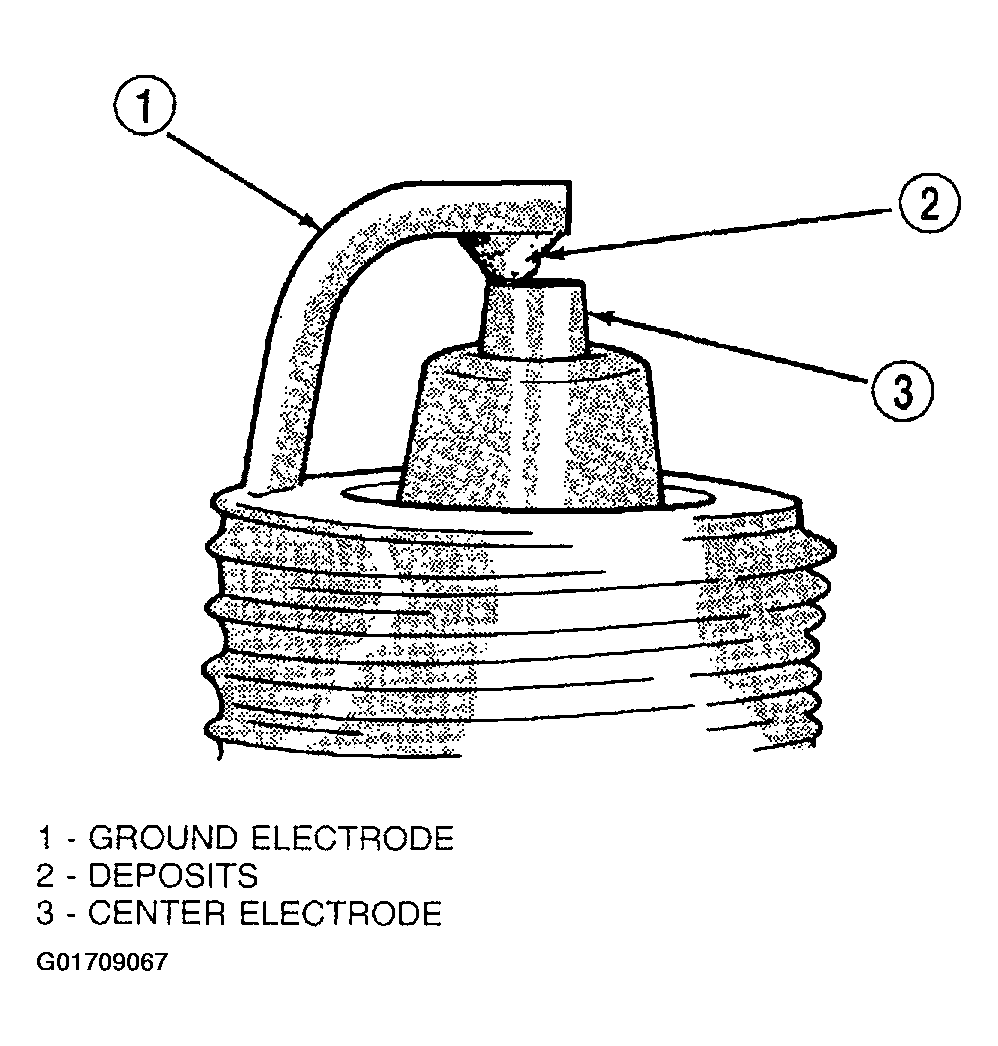

Fig 1: Identifying Electrode Gap Bridging
G01709067Courtesy of DAIMLERCHRYSLER CORP.
