Daytime Running Lamp Module (Except Export) Connector End View

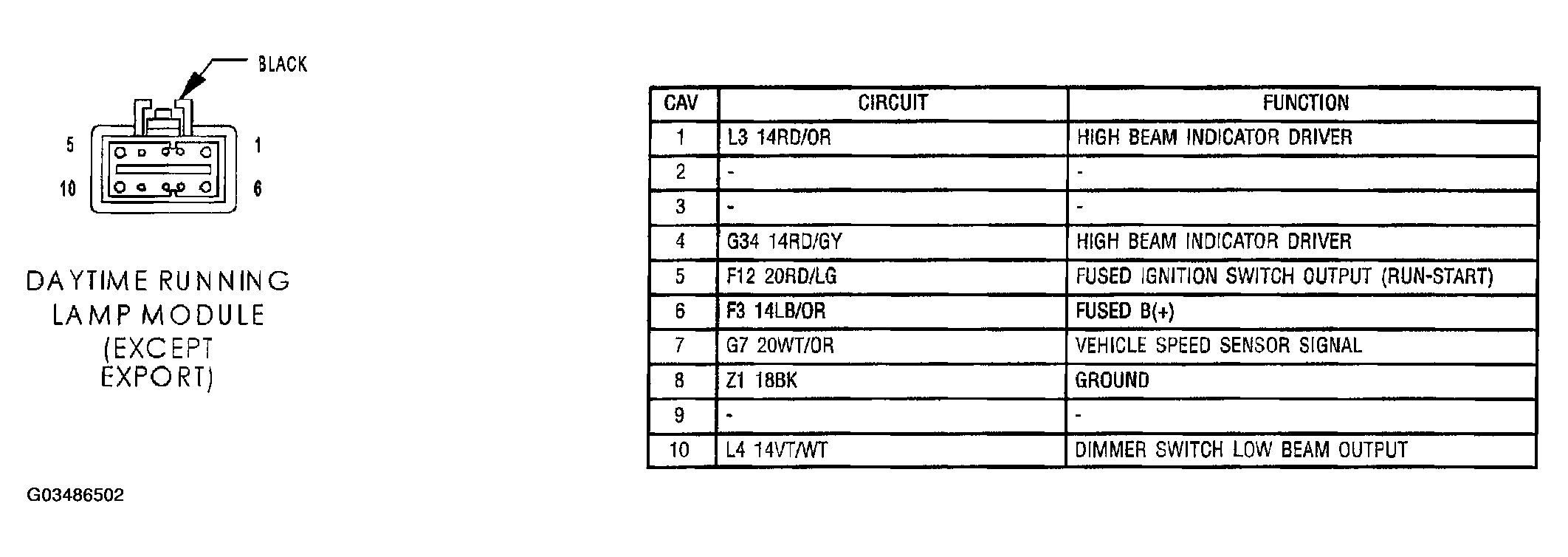

Fig 1: Daytime Running Lamp Module (Except Export) Connector End View
G03486502Courtesy of DAIMLERCHRYSLER CORP.
