Compass/Temperature Mirror Connector End View

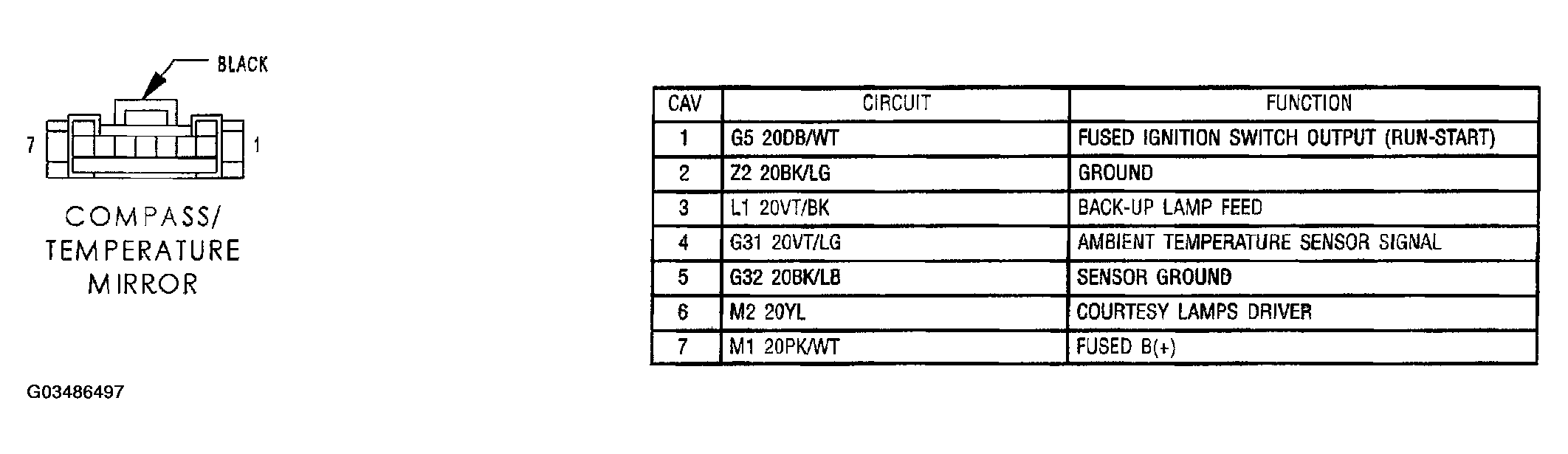

Fig 1: Compass/Temperature Mirror Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
