Left Front Wheel Speed Sensor Connector End View

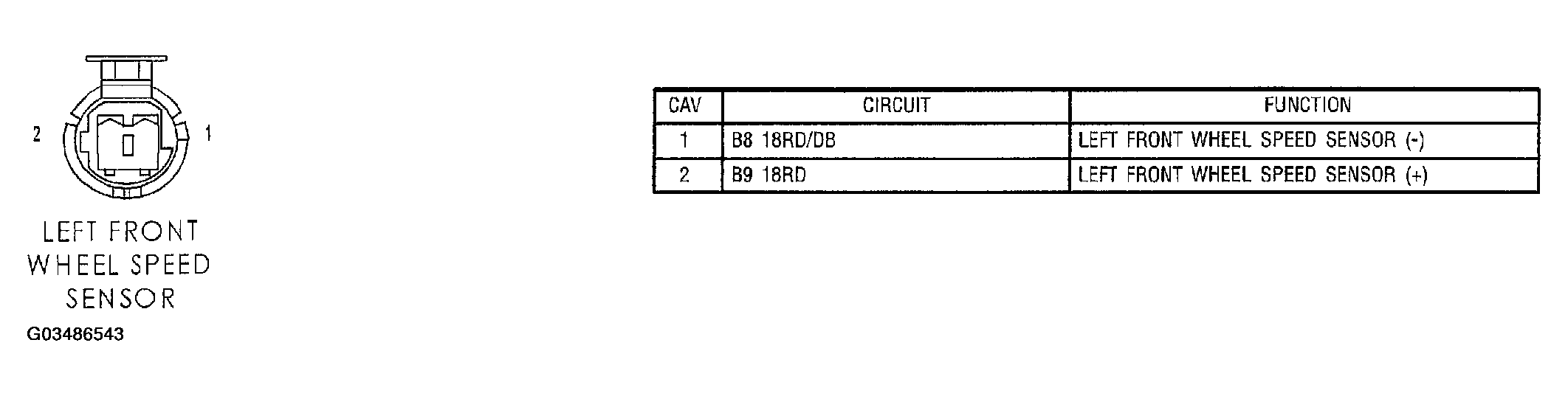

Fig 1: Left Front Wheel Speed Sensor Connector End View
G03486543Courtesy of DAIMLERCHRYSLER CORP.
