Torque Chart

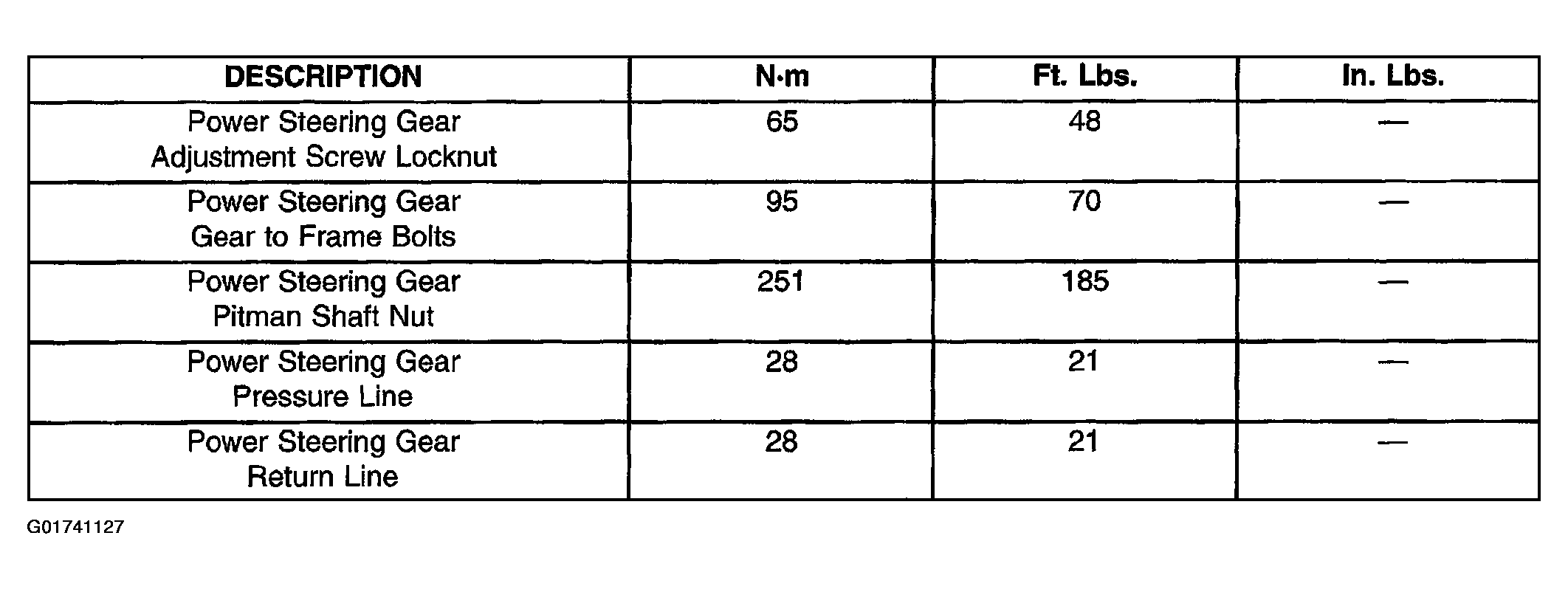

Fig 1: Power Steering Gear Torque Specifications Table
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
