Power Steering System: Linkage: Description

The steering linkage consists of a pitman arm, drag link, tie rod, and steering dampener. Adjustment sleeves are used on the tie rod and drag link for toe and steering wheel alignment.

The service procedures and torque specifications are the same for LHD and RHD vehicles.

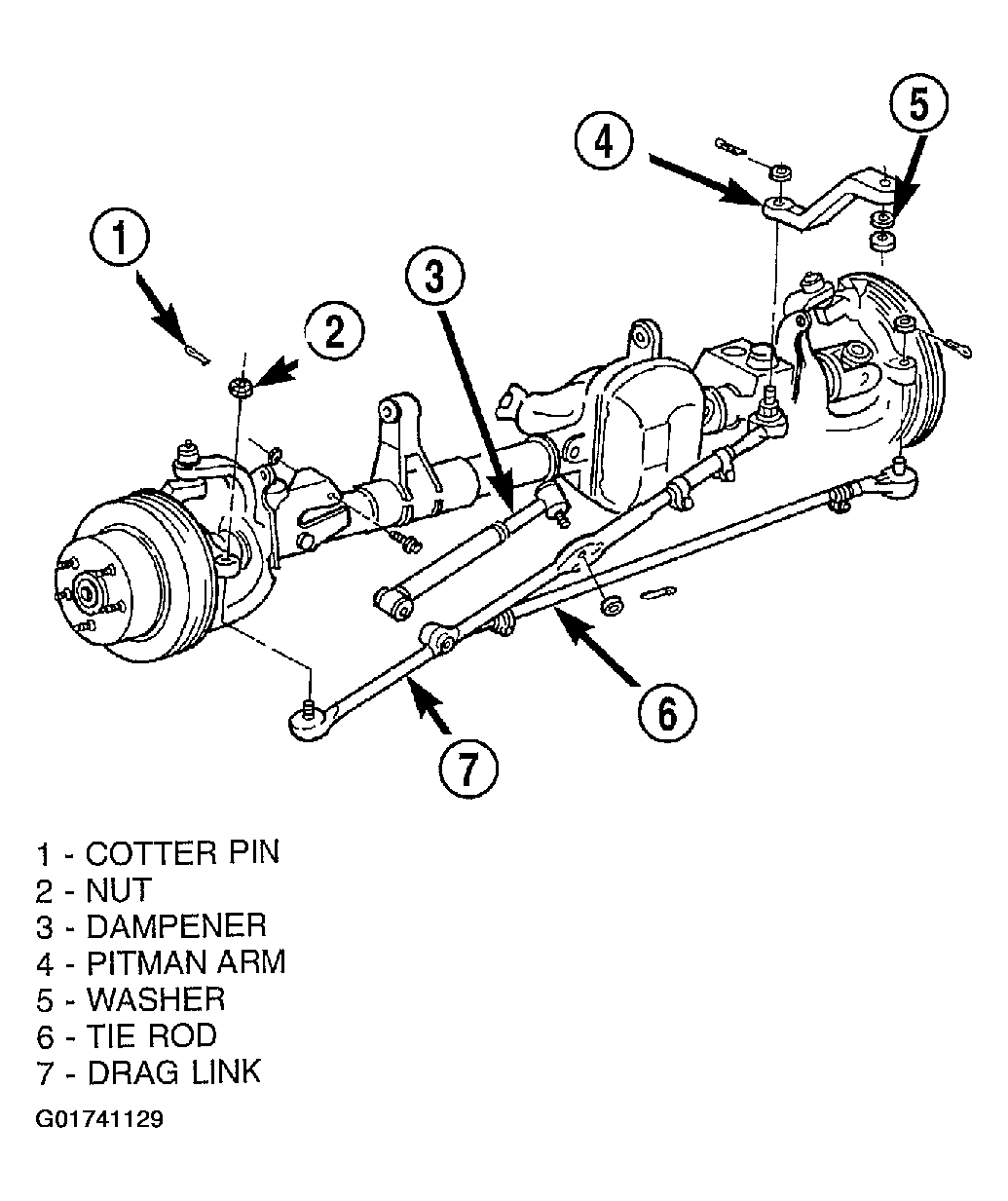

Fig 1: Identifying Steering Linkage
G01741129Courtesy of DAIMLERCHRYSLER CORP.
