Service Specifications





GENERAL SPECIFICATIONS





CYLINDER BLOCK





PISTONS





PISTON PINS





PISTON RINGS





CONNECTING RODS





CRANKSHAFT





CAMSHAFT





VALVE TIMING

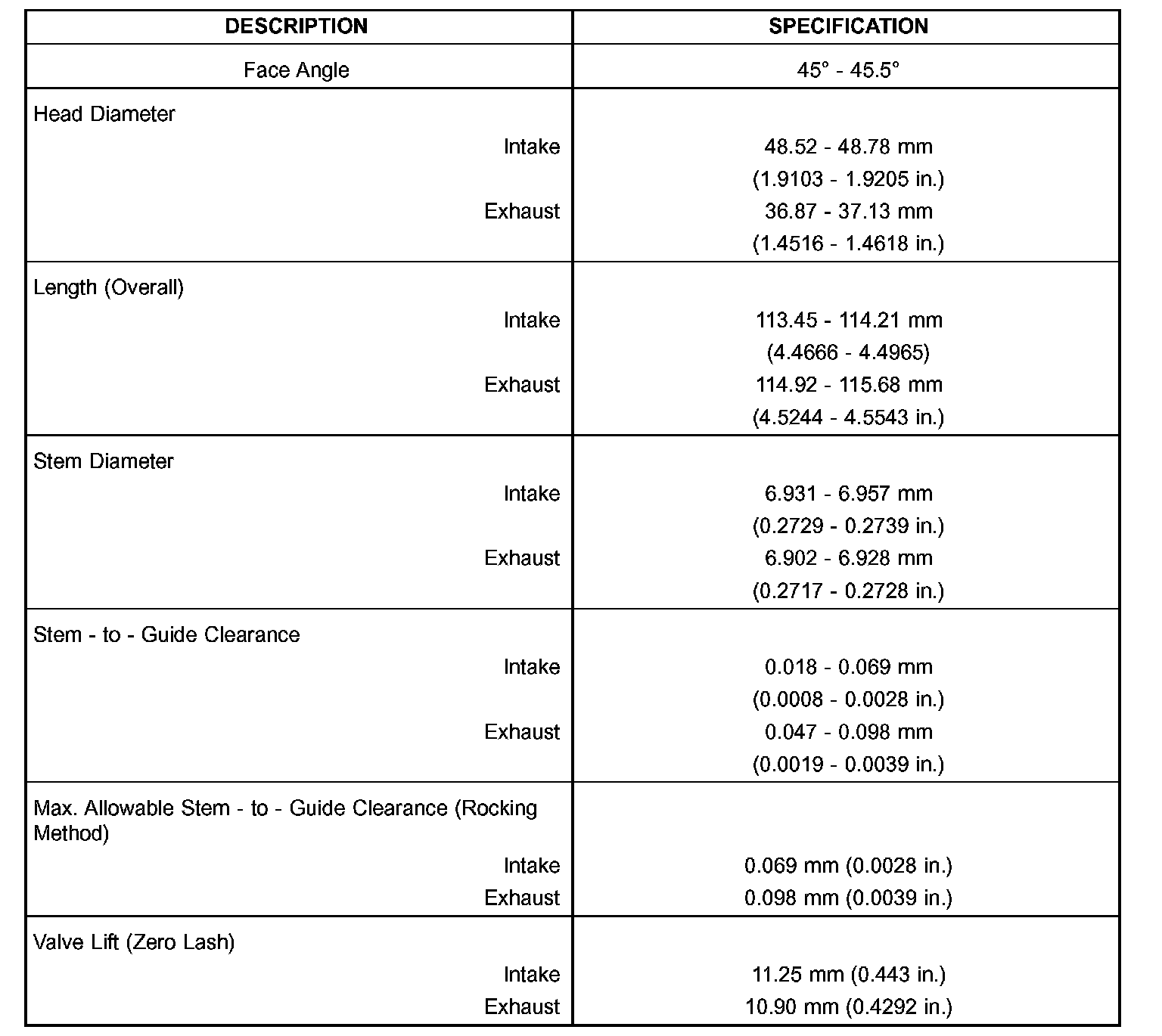

VALVES








VALVE SPRING





CYLINDER HEAD





OIL PUMP
