Component Locations

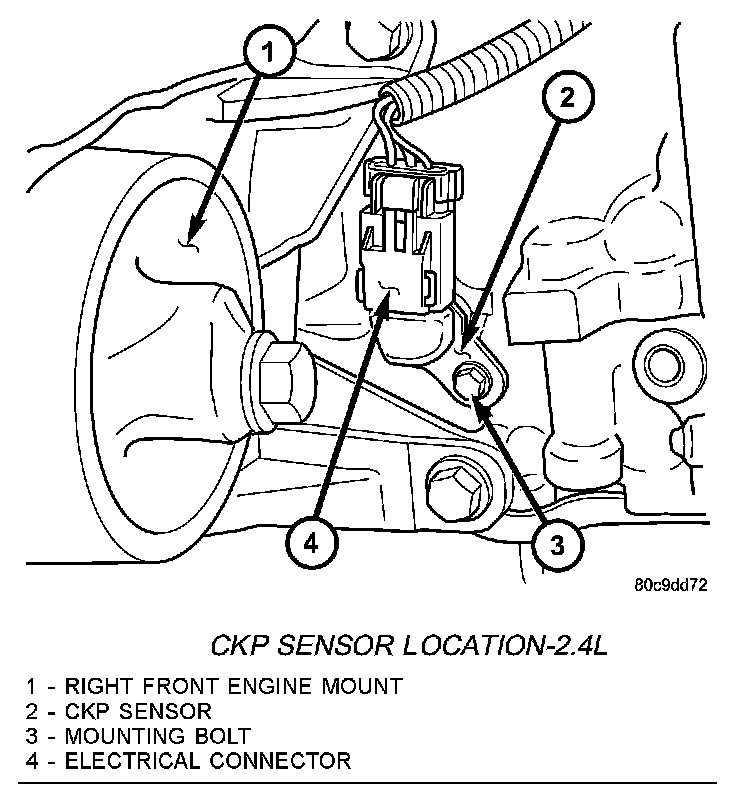

CKP Sensor Location-2.4L:

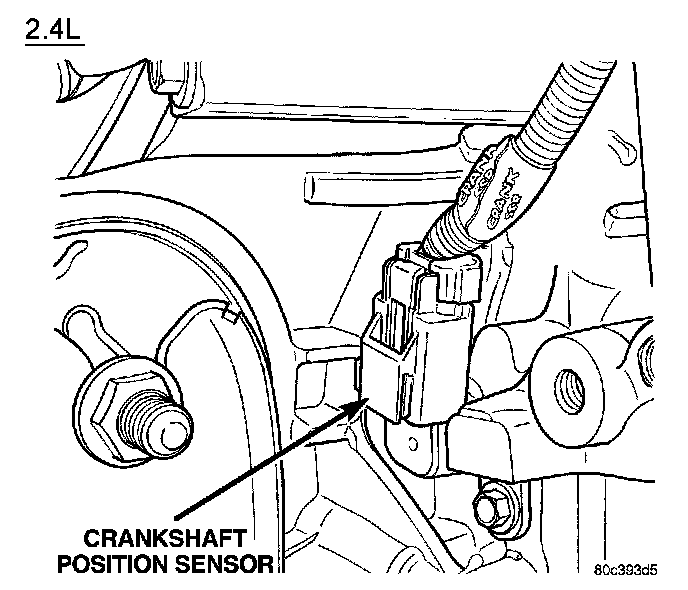

2.4L:






The crankshaft position sensor (CKP) is mounted in to the right front side of the cylinder block.
