Crankshaft, Engine

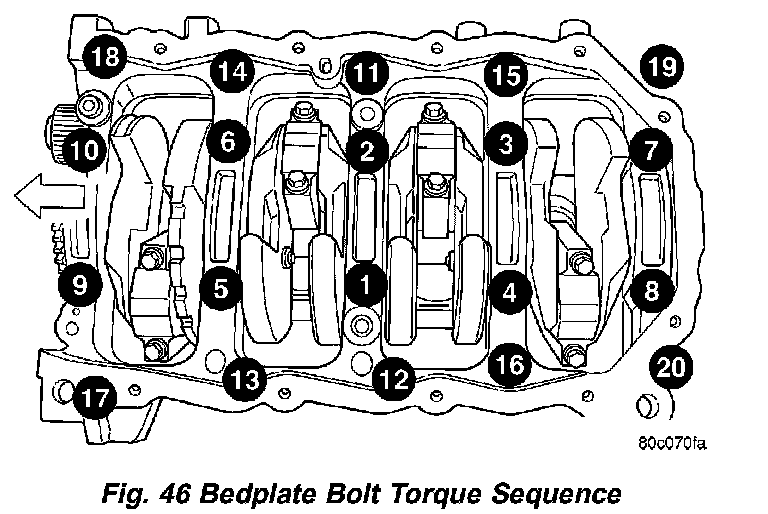

Bolts, Crankshaft Main Bearing Cap/Bed plate
M 8 Bolts 28 Nm (250 inch lbs.)
M 11 Bolts 75 Nm (55 ft. lbs.)

Main Bearing Journal Diameter 59.992-60.008 mm 2.362-2.3625 inch
Journal Out-of-Round (Max.) 0.0035 mm 0.0003 inch
Journal Taper (Max.) 0.007 mm 0.0001 inch
End Play 0.09-0.24 mm 0.0035 - 0.0094 inch
Wear Limit 0.38 mm 0.015 inch
Main Bearing Diametrical Clearance 0.018-0.062 mm 0.0007-0.0024 inch
