Inter-Module And DRB Communication

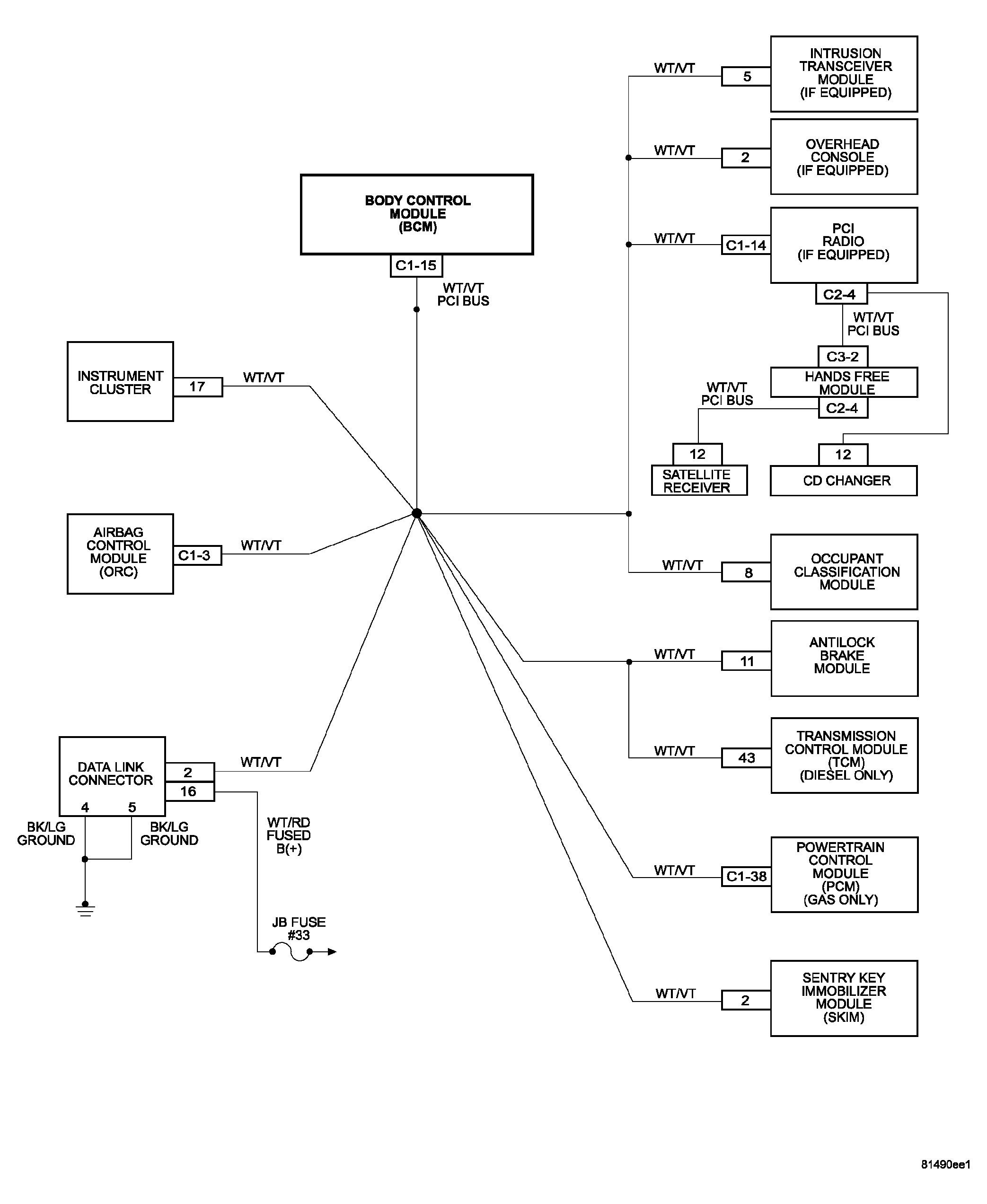

Fig 1: Schematic Diagram - Inter-Module And DRB Communication
G04550240Courtesy of DAIMLERCHRYSLER CORP.
