Anti-Lock Brake Module - 47 Way

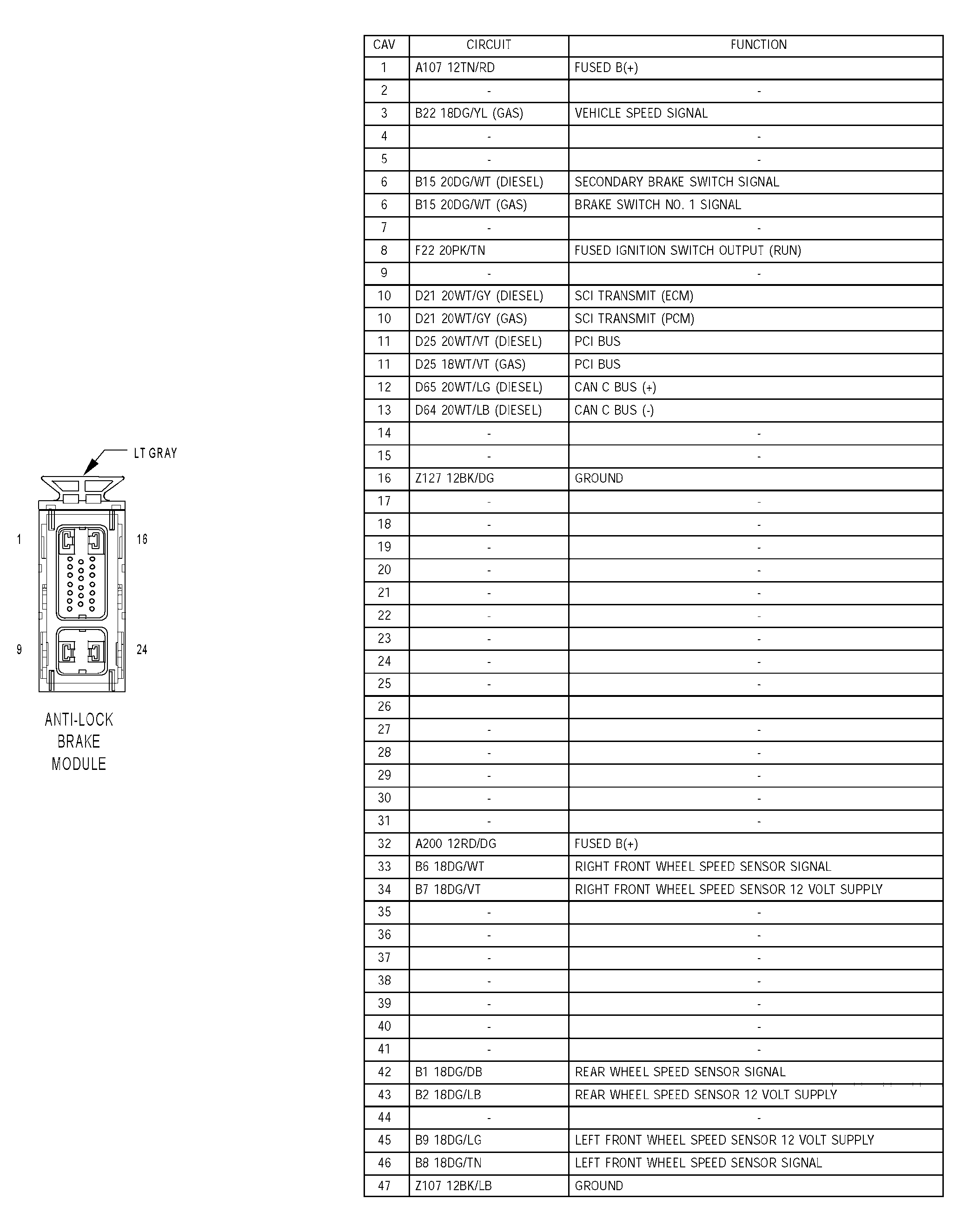

Fig 1: Anti-Lock Brake Module Connector Pinouts - 47 Way
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
