Engine Control Module C2 (Diesel) - 58 Way

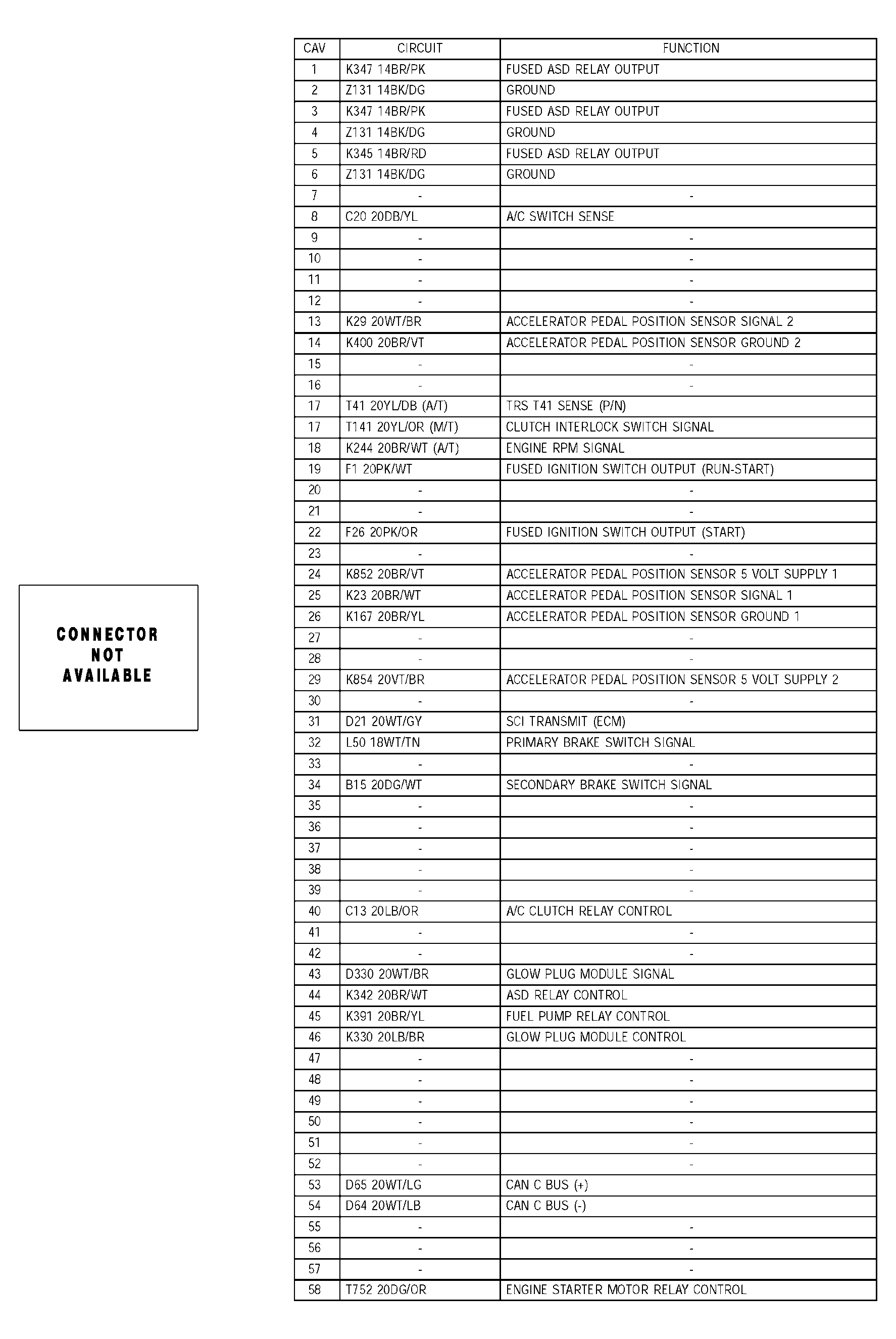

Fig 1: Engine Control Module C2 Connector Pinouts (Diesel) - 58 Way
G04550069Courtesy of DAIMLERCHRYSLER CORP.
