Passenger Airbag: Installation: Door

WARNING: To avoid personal injury or death on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, driver airbag, passenger airbag, occupant classification system, seat belt tensioner, front impact sensor, side impact sensor, side curtain airbag, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
WARNING: To avoid personal injury or death on vehicles equipped with airbags, the passenger airbag door must never be painted. Replacement passenger airbag doors are serviced in the original colors. Paint may change the way in which the material of the airbag door responds to an airbag deployment. Failure to observe this warning could result in occupant injuries upon airbag deployment.

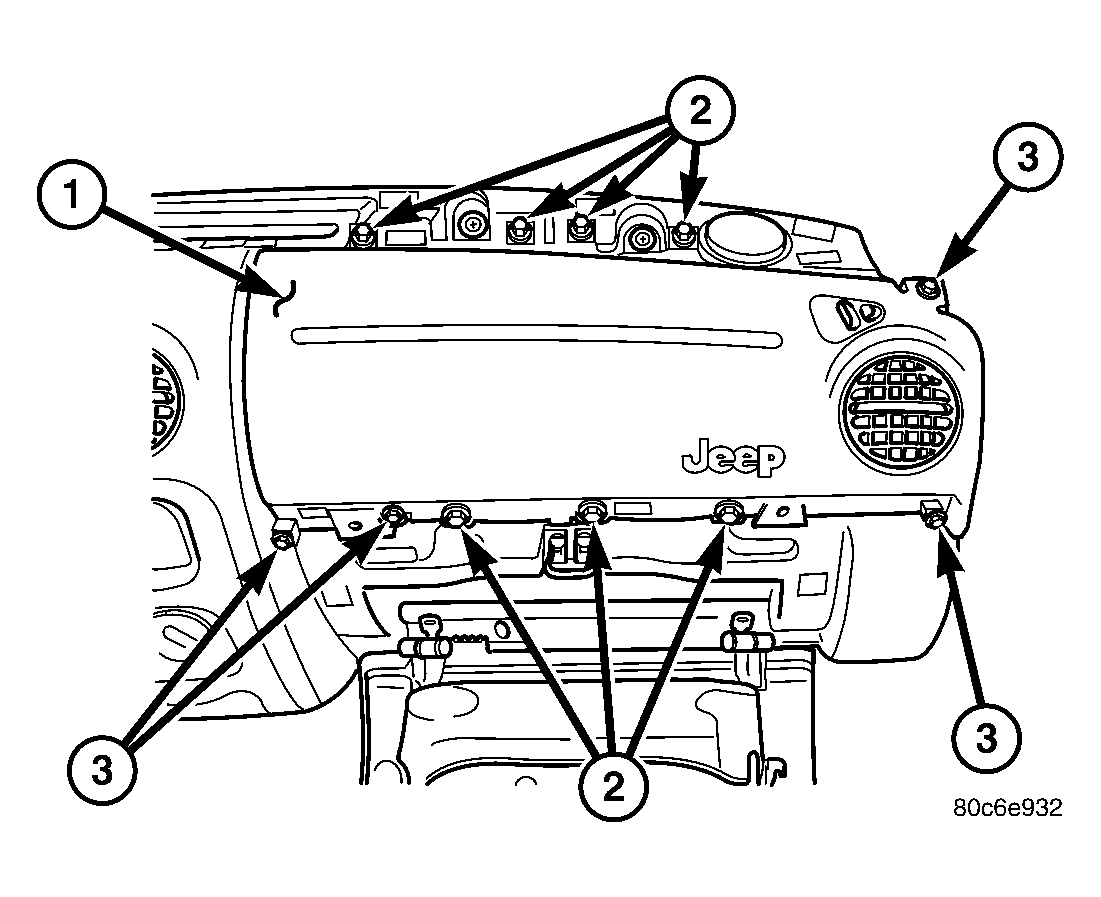

  1. Position the passenger airbag door onto the instrument panel. See Figure.
  2. Install and tighten the four large screws that secure the passenger airbag door to the top of the instrument panel. Tighten the screws to 4 N.m (35 in. lbs.).
  3. Install and tighten the one small screw that secures the passenger airbag door to the top of the instrument panel. Tighten the screw to 2 N.m (20 in. lbs.).
  4. Install and tighten the three large screws that secure the passenger airbag door to the glove box opening upper reinforcement. Tighten the screws to 4 N.m (35 in. lbs.).
  5. Install and tighten the three small screws that secure the passenger airbag door to the glove box opening upper reinforcement. Tighten the screws to 2 N.m (20 in. lbs.).
  6. Reinstall the passenger side bezel onto the upper glove box opening of the instrument panel. (Refer to BODY/INSTRUMENT PANEL/IP PASSENGER SIDE BEZEL - INSTALLATION) .
  7. Reinstall the top cover onto the instrument panel. (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL TOP COVER - INSTALLATION) .
  8. Reconnect the battery negative cable.
